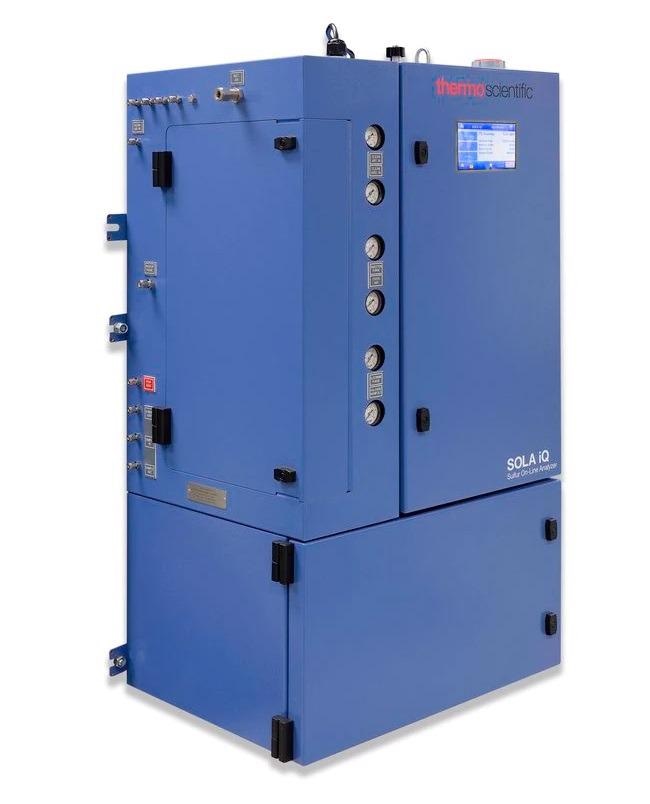

The SOLA iQ On-line Sulfur Analyzer from Thermo Scientific™ helps users to find out the total sulfur concentration of gas or liquid phase samples to increase profitability, guarantee process optimization and maintain regulatory compliance.
The SOLA iQ analyzer employs special Pulsed Ultraviolet Fluorescence (PUVF) technology and the proven Pyrolysis system, thus developing on the success of the SOLA II series of total sulfur analyzers with an install base of thousands of units for quantifying total sulfur concentration at the leading oil and gas companies across the globe.
The SOLA iQ On-line Sulfur Analyzer is an alternative to costly and laborious laboratory sampling for quantifying total sulfur concentration in refinery products such as diesel, gasoline, kerosene and jet fuel, as well as several process gas samples like NGL, Natural Gas and SynGas. The SOLA iQ analyzer provides an online adaption of ASTM D5453, D6313, D6222 and ISO 20846.
Features
- Detection limits as low as 25 ppb
- Intuitive color touchscreen user interface available
- Automatic density compensation for ppm sulfur wt/wt measurements
- Measurement varies from 2 ppm to 100%
- Semi-continuous operation; variation in sulfur concentration denoted at each injection cycle
- Continuous control of UV light intensity guarantees that calibration is maintained longer
- Pure O2 is not needed, thus avoiding the risks related to the use of oxygen in a process environment
- Simple access for maintenance and >99% uptime
SOLA iQ Applications
Clean Fuels
The extreme stability and accuracy of the SOLA iQ allow refiners to make timely process adjustments to improve the economic efficiency of desulfurization and fuel blending operations.
- SOLA iQ Liquid and SOLA iQ Liquid Trace
Flare Gas and Condensable Vapors
The highly precise SOLA iQ Flare analyzer offers a dynamic measuring range varying from 10 ppm to 100% S by volume with quick high-to-low response time. This allows reliable flare stack sulfur emission reporting.
- SOLA iQ Flare
- SOLA iQ Condensible Vapors (CV) Trace
- SOLA iQ Condensible Vapors (CV)
Multi-Calibration/Multi-Stream
The SOLA iQ analyzer allows multiple streams of various sulfur concentrations (that is, batch processing, inlet or outlet of reactors, etc.) to be quantified using a single analyzer.
- SOLA iQ Vapor
- SOLA iQ Liquid
- SOLA iQ Flare
- SOLA iQ Trace
- SOLA iQ Condensible Vapors (CV)
