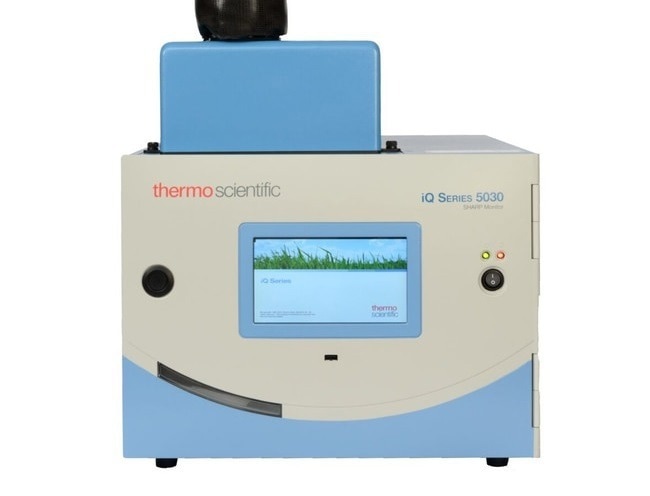

Leveraging beta attenuation and light scattering technology, the Thermo Scientific™ 5030iQ SHARP (Synchronized Hybrid Ambient Real-Time Particulate) Monitor offers real-time particulate monitoring with unprecedented ease of use.
The 5030iQ SHARP Monitor delivers precise, accurate results in real-time. Its high-time resolution outputs mass concentrations of real-time data in one-minute intervals with extreme precision. For calibration, the highly sensitive nephelometry is compared to the mass concentration of the beta attenuation data.
The 5030iQ Monitor utilizes continuous, non-stepwise measurement to automatically advance the particulate-laden sample, preventing potential particle loss and enabling long-term unattended operation. It monitors sample conditions to eliminate moisture effects, adjusts the control system to heat only when necessary, and ensures that volatile aerosols remain intact for accurate measurement.
Product Overview
Specifications. Source: Thermo Fisher Scientific – Environmental and Process Monitoring Instruments
| . |
. |
| Temperature (English) Operating |
The temperature of sampled air may vary -30 to 50 °C. 5030iQ SHARP Monitor must be weather protected within range 4 to 40 °C, an optional complete outdoor enclosure provides complete weather protection |
| Wattage |
- 100–240 VAC, 50–60 Hz recommended, 805 watts (115 V)
- 880 watts maximum (220–240 V (instrument, heater & pump)
|
| Weight (English) |
<55.1 lbs |
| Weight (Metric) |
<25 kg |
| Unit Size |
Each |
- High time resolution, one-minute measurements
- U.S. EPA PM-2.5 equivalent monitor (EQPM-0609-184)
- Enhanced ethernet connectivity
- Superior accuracy, precision, and sensitivity
- Enhanced user interface and ePort communication software
- Remote data access
