Thermo ScientificTM 5014iQ Beta Attenuation Monitor tracks TSP, PM-2.5, PM-10, and PM-1 levels in the surrounding air. A filter tape that moves automatically to a clean spot to collect PM samples minimizes the need for an attended operation. To help reduce particle loss, user-defined parameters like mass accumulation limits, flow rates, and continuous pattern advance to control the filter tape advance.
The device monitors the sample's conditions, removing moisture effects, adjusting the control system to only heat when needed, and ensuring that volatile aerosols are preserved for precise measurement.
Product Overview
Specifications. Source: Thermo Fisher Scientific – Environmental and Process Monitoring Instruments
. |
. |
Flow Rate |
1 m3/h (16.67 L/min) measured across an internal subsonic orifice, user-selectable 14 to 20 lpm |
Gases Measured |
Carbon-14 (C-14), < 3.7 MBq (<100 μCi) |
Temperature (English) Operating |
The temperature of sampled air may vary -30 to 50 °C. 5014iQ Monitor must be weather protected within range 4 to 40 °C, an optional complete outdoor enclosure provides complete weather protection |
Accuracy |
±5% using SI-traceable mass foil set (for mass measurement) |
Certifications/
Compliance |
U.S. EPA PM-2.5 equivalent monitor (EQPM-1609-183) |
Communication
Protocols |
MODBUS, TCP/IP, Gesytec (Bayern-Hessen), streaming data and NTP (Network Time Protocol) protocols. Simultaneous connections from different locations over Ethernet |
Concentration Measurement Range |
60 to 3,600 seconds and 24-hour |
Data Averaging |
Every 1 second |
Depth (English) |
21.16 in |
Depth (Metric) |
53.8 cm |
Description |
5014iQ Beta Attenuation Monitor |
Electrical
Requirements |
Designed to meet CE: EN61326: 1997 + A1: 1998 + A2: 2001 + A3: 2003, EN61010-1 UL: 61010-1: 2004; CSA: C22.2 No. 61010-1: 2004; FCC: Part 15 Subpart B, Class B, UKCA |
Height (English) |
12.2 in |
Height (Metric) |
31 cm |
Measurement Range |
0 to 10,000 μg/m3 |
Outputs |
- Standard ports 3 full-speed USB ports (one in front, two in rear) 1 gigabit ethernet port
- Analog I/O (optional) 4 isolated voltage inputs 0–10 V 6 isolated analog voltages outputs, with 4 selectable ranges 6 isolated analog current outputs, with 2 selectable ranges
- Digital I/O (optional) 16 digital inputs (TTL) 8 solenoid driver outputs,10 digital reed relay contact outputs
- Serial ports (optional) 1 RS-232/485 port, 1 RS-485 external accessory port
|
Precision |
±2.0 μg/m3, <80 μg/m3, 4–5 μg/m3 > 80 μg/m3 (24-hour average) |
Resolution |
0.1 μg/m3 |
Sampling Flow
and Control |
- Sample flow precision: ±2% of measured value
- Sample flow accuracy: <5% of measured value
|
Wattage |
- 100–240 VAC, 50–60 Hz recommended, 805 watts (115 V)
- 880 watts maximum (220–240 V (instrument, heater & pump)
|
Weight (English) |
< 55.1 lb |
Weight (Metric) |
< 25 kg |
Width (English) |
16.73 in |
Width (Metric) |
42.5 cm |
Unit Size |
Each |
This state-of-the-art monitor features:
- US EPA approved PM-10 (EQPM-1102-150) and PM-2.5
- (EQPM-0609-183) equivalent monitor
- Remote access to data
- Ongoing evaluation
- Prolonged absence of supervision
- High resolution, accuracy, and low detection limit
- ePort communication software and an improved user interface
- Improved connectivity over Ethernet
![5014iQ Beta Attenuation Monitor.](https://d12oja0ew7x0i8.cloudfront.net/images/equipments/EquipmentImage_9106_17218034498325930.jpg)

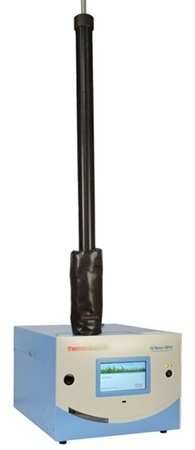

5014iQ Beta Attenuation Monitor. Image Credit: Thermo Fisher Scientific – Environmental and Process Monitoring Instruments
![5014iQ Beta Attenuation Monitor.](https://d12oja0ew7x0i8.cloudfront.net/images/equipments/EquipmentImage_9106_17218034555743893.jpg)

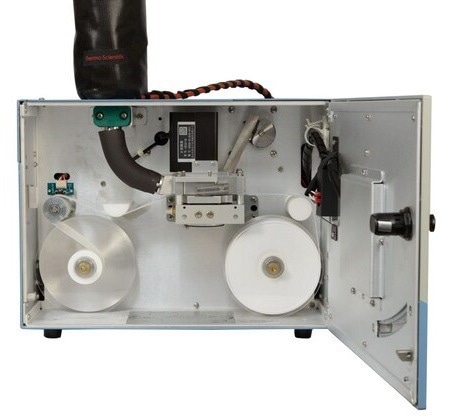

5014iQ Beta Attenuation Monitor. Image Credit: Thermo Fisher Scientific – Environmental and Process Monitoring Instruments
