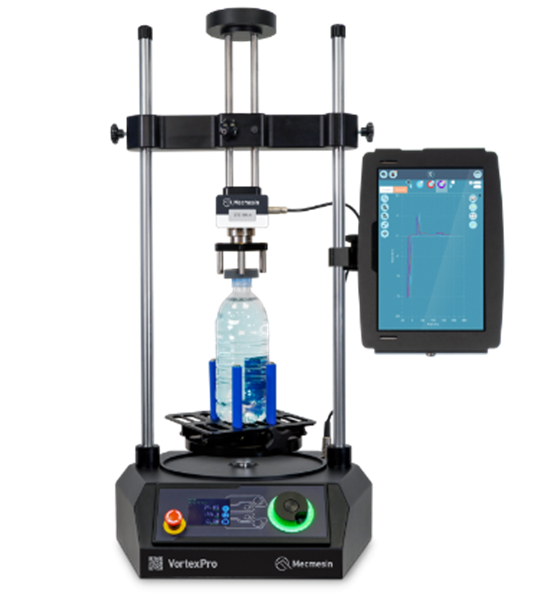

The VortexPro Touch is a multi-functional torque tester that uses VectorPro software and is operated by a touchscreen console. It is accurate, simple to use, and perfect for stand-alone use, with a rating of up to 10 N.m. It is the ideal choice for the routine testing of a variety of closures and components due to its versatility as an automated torque tester.
Its twin-column design enables torque testing up to 10 N.m (90 lbf.in). An adjustable crosshead and sensor carriage provide the space to accommodate larger specimens up to 350 mm in height*.
Modern electronics and a variety of high-resolution precision Enhanced Torque Sensors (ETS) are integrated into the VortexPro Touch. Its remarkable 0.5% reading accuracy and 1:50,000 resolution allow for a wider range of tests to be run without changing torque sensors.
Live torque and angle readings, an intuitive front display, and accurate manual rotary table movement via the multifunction controller are all features of the VortexPro Touch. Colored LEDs provide visual cues to indicate the machine's status during testing.
The VortexPro Touch torque tester, known for its versatility and user-friendly interface, appeals to all users regardless of their skill level or experience. Its compact design allows it to fit comfortably on a benchtop, making the VortexPro an ideal automated torque tester for use in quality control, research and development laboratories, or in production areas.
The VortexPro Touch comes pre-installed with Mecmesin's VectorPro torque testing software. Step-by-step test routines can be quickly and easily created according to the exact requirements of your testing procedures. Configured tests can also be easily selected on the home screen at the touch of a button.
Key Features
- Controlled by the powerful VectorPro™ software, with drag-and-drop functionality for easy test program creation
- Interchangeable ETS torque sensors are fast and simple to fit. Plug and play for automatic calibration
- LED test status indication
- Range of standard test fixtures. Custom fixture design services are available
- Touchscreen console pre-installed with VectorPro software
- Test specimens up to 440 mm tall and 280 mm wide can easily be tested in both clockwise and counter-clockwise directions
