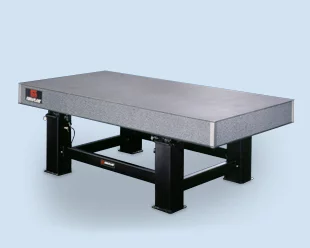

The 5100 Series is equipped with a proprietary SPILLPRUF spill control system, precise honeycomb construction, 3/16 ′′ thick ferromagnetic stainless-steel top and bottom skins, and broadband damping for superior vibration absorption.
Table dimensions: lengths up to 20 ′
Widths up to 6 ′
Thicknesses up to 36 ′′
Custom tables are favorites! For particularly long, wide, and “L”, “T”, or “U” shaped tables, choose welded splice plates.
All Kinetic Systems' optical tables can be coupled with modular rigid supports or Active-Air or Passive-Air vibration isolators, which are available for purchase separately.
Features and Benefits
- Broadband damping
- Plated steel, precision-formed honeycomb core
- Ferromagnetic stainless steel bottom and top skin 3/16 ′′ thick
- SPILLPRUF spill management
- Widths to 6 ′, lengths to 20 ′, thickness to 36 ′′
- Class 100 Cleanroom Compatible – Class 10 are available
- Low reflective surfaces
Specifications
- Flatness: ± 0.005 ′′ overall
- Damped Natural Frequency: 270 Hz
- Max Dynamic Deflection Coefficient: ≤0.7 (10) -3
- IRD-Max Relative Motion (in): ≤6.0 (10) -9
- First Resonance Transmissibility Q: 10 to 15
- Core Shear Modulus: 225,000 psi

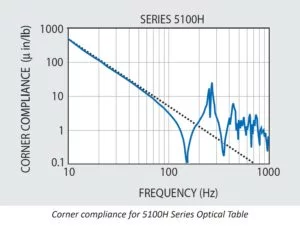

- First Resonance Corner Compliance: 20 µ in/lb
- Deflection Under 250 lb Concentrated Load: ≤7.0 (10) -5 in
Image Credit: Kinetic Systems, Inc.

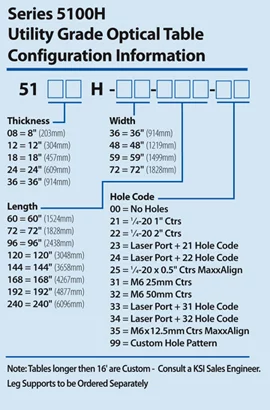

Configurations
Image Credit: Kinetic Systems, Inc.
