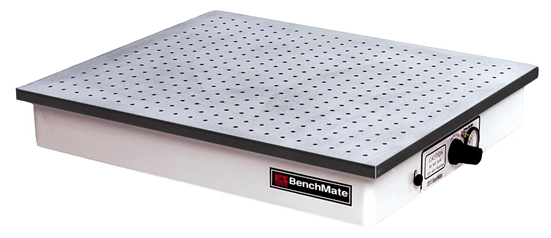

Precision tabletop equipment operates more efficiently, thanks to BenchMate Vibration-Free Platforms.
The self-leveling 2212 Series needs a compressed air supply, which is not included. It is recommended for daily use.
Image Credit: Kinetic Systems, Inc.
Image Credit: Kinetic Systems, Inc.
Image Credit: Kinetic Systems, Inc.
Typical Applications
Audio equipment, balances, profilometers, atomic force microscopes, microhardness testers, and other precision measuring and testing instrumentation.
Features and Benefits
- Low-profile Active Air design
- Unparalleled price/performance
- VibraDampened construction
- Low inherent frequency
- Flatness: ±0.004 ” over 24×24 ” on -22 and -32 top surfaces
- SPILLPRUF spill management
- Compatible with Class 100 cleanrooms – Class 10 is also available
Specifications

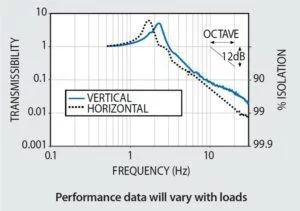

Performance Dara. Source: Kinetic Systems, Inc.
| Min. Load @ 20 psi |
| Vertical Natural Frequency |
2.3 Hz |
| Isolation Efficiency @ 5 Hz |
52 % |
| Isolation Efficiency @ 10 Hz |
83 % |
| Horizontal Natural Frequency |
2.9 Hz |
| Isolation Efficiency @ 5 Hz |
40 % |
| Isolation Efficiency @ 10 Hz |
92 % |
| Max. Load @ 80 psi |
| Vertical Natural Frequency |
2.1 Hz |
| Isolation Efficiency @ 5 Hz |
70 % |
| Isolation Efficiency @ 10 Hz |
91 % |
| Horizontal Natural Frequency |
1.8 Hz |
| Isolation Efficiency @ 5 Hz |
81 % |
| Isolation Efficiency @ 10 Hz |
95 % |
| Net Load Capacity @ 80 psi |
| 2212-02/03 |
450 lbs. (204 kg) |
| Finish |
| Standard |
Linear White
Polyurethane |
| Class 10 |
White Epoxy
Powder Coat |
| Approximate Shipping Weight |
| 2212-01-xx |
157 lbs. (72 kg) |
| 2212-02-xx |
210 lbs. (96 kg) |
| 2212-03-xx |
245 lbs. (112 kg) |
| 2212-04-xx |
145 lbs. (66 kg) |
Note: Typical performance efficiencies are for microdisturbances.
Image Credit: Kinetic Systems, Inc.
Image Credit: Kinetic Systems, Inc.

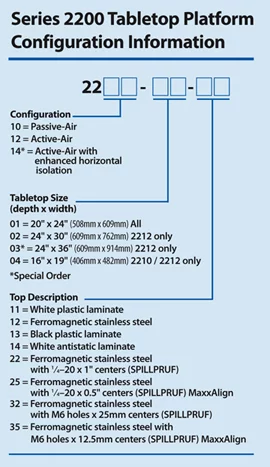

Configuration
Image Credit: Kinetic Systems, Inc.
