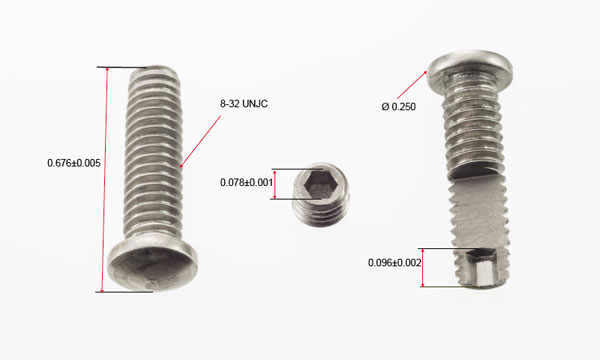

The CRES fastener for a new product design in an airframe latch had three different geometric challenges:
- A rolled thread over a backward extrusion
- A convex head feature
- A reverse hex extrusion
By cold forming the part in the first part of the process, Sussex Wire created the convex head and hex-shaped reverse extrusion. Due to the cold forming process, the hex created by the reverse extrusion was a stronger part than would have been possible using other methods like machining, which would have weakened the part significantly.
In order to thread-roll the part without collapsing the hex cavity, Sussex created a secondary process.
Material
Use
- Fasteners for the aerospace industry
Critical Tolerances
- 8-32 Thread to AS8879, UNJC-3A
- Inset hex depth and concentricity
- Head height and radius
Manufacturing Method
- Extrusion
- Reverse extrusion
- Cold heading
- Annealing
- Roll forming
Advantages
- Final tensile at 130,000 KSI, from original material tensile of 85,000 KSI
- No material scrap, 100% net shape
- Work hardened threads per AS8879
- Work hardened head-to-shank interface
- High throughput, low-cost alternative to machining
- Burr and silver free condition without mechanical secondary operation
