What Is Ion-Beam-Assisted Molecular Beam Epitaxy?

By Dr Silpaja Chandrasekar, PhDReviewed by Lexie CornerDec 17 2024

Ion beam-assisted molecular beam epitaxy (IB-MBE) combines ion beam technology with MBE to enhance thin-film growth precision. This technique utilizes controlled energetic ions to modify physical properties during deposition. The ion beam provides additional energy that increases atomic mobility on the surface, potentially resulting in improved crystallization, reduced defects, and enhanced film quality.

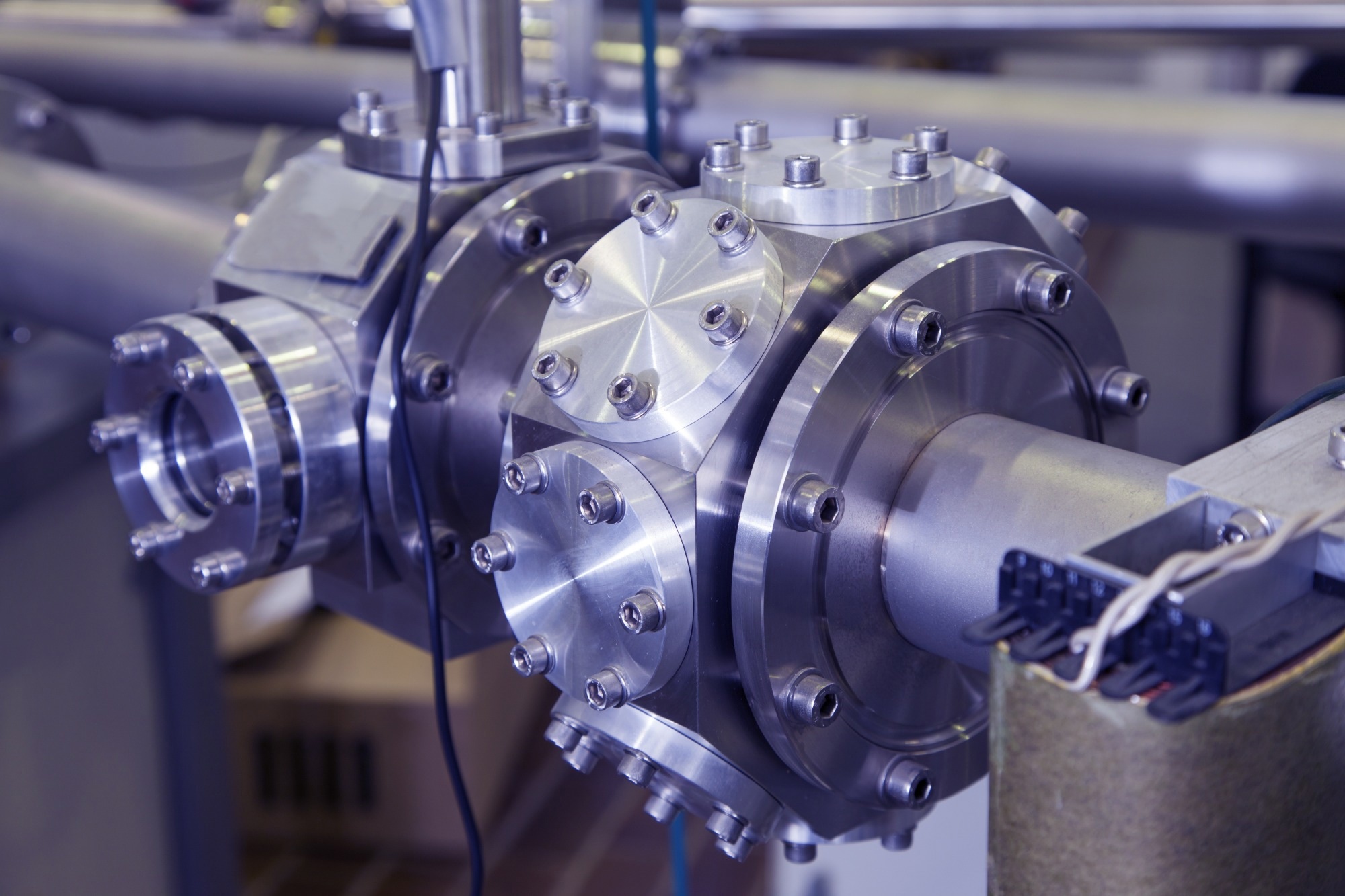

Image Credit: Fineart1/Shutterstock.com

This technique is significant in the development of advanced materials, particularly for applications in microelectronics, nanotechnology, optoelectronics, and renewable energy technologies.

The precise control of the growth environment and the ability to influence surface interactions at the atomic scale enable IBA-MBE to produce materials with specific properties. Its flexibility in adjusting growth conditions contributes to its utility in material science research and development.¹

Mechanisms and Principles

In MBE, thin films are grown by directing molecular or atomic beams onto a heated substrate in an ultra-high vacuum chamber. The deposition rate is carefully controlled, allowing the creation of high-quality single-crystal films with uniform thickness and accurate structure. The substrate temperature is optimized to promote layer-by-layer deposition and condensation of material.

Higher substrate temperatures encourage atoms to settle into stable positions, improving crystallinity and reducing defects. Temperature also influences growth modes, such as 2D layer-by-layer or 3D island growth, which are important for achieving uniform films.²

In IBA-MBE, an ion beam is introduced during deposition to provide additional energy to surface atoms. This energy enhances atomic diffusion, aiding in defect reduction and improving structural quality. Ion bombardment transfers kinetic energy to surface atoms, promoting rearrangement into more stable configurations and reducing void formation.³

The ion beam’s energy, species, and flux can be adjusted to control film composition, surface characteristics, and doping levels. For instance, oxygen ions improve the stoichiometry of oxide films, while low-energy argon ions smooth the surface without causing damage.³ This flexibility makes IBA-MBE a key resource in the creation of high-quality thin films.⁴

Advantages and Applications

The integration of ion beam assistance with MBE enhances structural integrity, surface smoothness, and reduces defect density, improving film reliability and longevity. Its ability to adjust composition and microstructure during growth makes it ideal for devices with specific performance requirements, such as in optoelectronics, where interface quality is critical.

IB-MBE supports the development of advanced semiconductors and magnetic materials, contributing to improved device efficiency and reliability.⁵

Semiconductors

IBA-MBE contributes to semiconductor fabrication by providing control over material enhancement and layer thickness. This method facilitates the production of devices with specific electrical properties, including high electron mobility transistors (HEMTs), laser diodes, and integrated circuits.⁶

For example, IBA-MBE has been successfully applied to fabricate gallium arsenide (GaAs) devices with high-speed capabilities and indium phosphide (InP) structures for advanced optoelectronic applications. Recent studies highlight its role in producing defect-free quantum wells and high-performance laser diodes.

The adjustment of material interfaces during the growth process is important for optimizing the performance characteristics of semiconductor devices. For example, precise interface adjustments during the growth process, such as reducing lattice mismatch in GaAs heterostructures, minimize defects and enhance electron mobility. This improvement directly boosts the performance of devices like HEMTs.

Interface engineering also improves energy band alignment, which is essential for efficient charge transport in semiconductor devices. This precision further enhances the thermal stability and overall reliability of advanced electronic components.⁷

Magnetic Materials

IBA-MBE is applied in the production of magnetic materials to grow thin films with specific magnetic properties. The ion beam provides control over attributes such as coercivity and anisotropy, which are important for high-density data storage and sensor applications. This capability contributes to the development of spintronic devices and magnetic memory technologies.

For example, studies have shown that IBA-MBE can precisely tune cobalt-iron-boron (CoFeB) thin films, enhancing their performance in spintronic devices. Adjusting these properties has improved the sensitivity and efficiency of magnetic junctions used in magnetic sensors. This characteristic also advances high-density magnetic memory technologies, such as magneto-resistive random-access memory (MRAM).⁸

IBA-MBE enables the integration of these materials into multilayer structures, which can affect the performance and functionality of magnetic devices. A challenge in using IBA-MBE for magnetic materials is managing ion beam energy and flux to minimize defects. This issue can be addressed by optimizing ion beam parameters and implementing real-time monitoring during deposition.

Research has shown that optimizing ion beam energy and flux during IBA-MBE growth reduces defects in multilayer magnetic structures. This approach enhances the performance of devices like magnetic tunnel junctions and spin valves by ensuring uniformity and precise layer control. As a result, the reliability and performance of magnetic sensors and memory devices are significantly improved, meeting the demands of modern data storage technologies.⁵

Functional Oxides

IBA-MBE effectively produces thin films with specific electrical, optical, and catalytic properties. These films are used in energy devices, sensors, and protective coatings. The ion beam's precision allows for the development of multifunctional oxide materials that can be integrated into heterostructures.

For example, IBA-MBE has been applied to fabricate thin films of titanium dioxide (TiO₂) with enhanced photocatalytic properties. These films are well-suited for energy harvesting applications, such as solar cells, and environmental remediation processes, including water purification and pollutant degradation. By managing the deposition parameters, such as ion beam energy and flux, the TiO₂ films achieve enhanced surface area, crystallinity, and photocatalytic efficiency, making them valuable for sustainable energy solutions.

IBA-MBE has also been used to create indium tin oxide (ITO) films with high transparency and low resistance, essential for advanced optoelectronic devices like touch screens, light-emitting diodes (LEDs), and photovoltaic cells. Through precise control of deposition conditions, IBA-MBE allows for the production of ITO films with tailored conductivity and optical properties, contributing to developing high-performance, energy-efficient devices.⁹

The ability to control the oxide layer's thickness and composition at a fine scale enables the creation of coatings that can improve durability and performance in challenging environments. This makes IBA-MBE useful for developing advanced materials used in renewable energy technologies, such as solar cells, where optimized charge transport layers can improve overall efficiency.⁵

Challenges and Limitations

A primary challenge of IBA-MBE is integrating ion beam technology with MBE. Controlling ion energy, flux, and beam angles is necessary to prevent effects such as non-uniform growth or unintended changes in material properties. Deviations from optimal conditions can affect the uniformity and quality of the thin film.

Another challenge is the potential for ion-induced damage to the growing thin film. High ion energy can cause dislocations or amorphization, which can reduce material quality. This issue is particularly relevant when working with sensitive materials or those requiring high precision. Mitigating these effects requires optimization of ion beam parameters and careful monitoring of the growth process, which can be technically complex.

In addition to the integration and ion-induced damage challenges, accurately regulating the interface between the thin film and the substrate presents a significant difficulty. A high-quality interface is essential for achieving the desired material properties; however, even slight variations in temperature or pressure during deposition can lead to poor adhesion or the formation of unwanted phases.

This issue is more pronounced when working with complex materials or multi-layer structures, where consistency across layers is important. Addressing this challenge often involves using monitoring techniques and making adjustments during the deposition process to maintain optimal conditions.¹⁰

Ongoing research in ion beam control and process optimization aims to expand the range of materials and applications for IBA-MBE. The technique's capabilities are particularly relevant for developing electronic, photonic, and energy systems. Current efforts focus on integrating real-time monitoring systems for improved process control and exploring applications in quantum technologies, advanced photonics, and energy solutions.

Discover More: Methods for Measuring Thin Film Thickness

References and Further Reading

1. Saha, P., et al. (2023). Ion-beam-assisted growth of cesium-antimonide photocathodes. Journal of Vacuum Science & Technology B. DOI: 10.1116/6.0002909, https://pubs.aip.org/avs/jvb/article-abstract/41/6/064004/2918688/Ion-beam-assisted-growth-of-cesium-antimonide?redirectedFrom=fulltext

2. The University of Warwick. (n.d.). Molecular Beam Epitaxy. [Online] The University of Warwick. Available at: https://warwick.ac.uk/fac/sci/physics/current/postgraduate/regs/mpagswarwick/ex5/growth/pvd/

3. Hirvonen, JK. (1995). Ion Beam Assisted Thin Film Deposition. Materials and Processes for Surface and Interface Engineering. https://link.springer.com/chapter/10.1007/978-94-011-0077-9_9

4. Shen, C., et al. (2024). Development of in situ characterization techniques in molecular beam epitaxy. Journal of Semiconductors, 45:3, 031301. DOI: 10.1088/1674-4926/45/3/031301, https://iopscience.iop.org/article/10.1088/1674-4926/45/3/031301/meta

5. Luna, E. L., et al. (2024). Review of the Properties of GaN, InN, and Their Alloys Obtained in Cubic Phase on MgO Substrates by Plasma-Enhanced Molecular Beam Epitaxy. Crystals. DOI: 10.3390/cryst14090801, https://www.mdpi.com/2073-4352/14/9/801

6. Meyer, K., et al. (2022). GaN growth on (0 0 1) and (1 1 0) MgO under different Ga/N ratios by MBE. Journal of Crystal Growth, 589, 126681. DOI: 10.1016/j.jcrysgro.2022.126681, https://www.sciencedirect.com/science/article/abs/pii/S0022024822001695

7. Gerlach, J. W., & Höche, T. (2005). Multiple-textured gallium nitride prepared by ion beam assisted molecular beam epitaxy. Physica Status Solidi (A), 202:12, 2361–2367. DOI: 10.1002/pssa.200521251, https://onlinelibrary.wiley.com/doi/abs/10.1002/pssa.200521251

8. Mahendra, A., et al. (2023). Role of interface intermixing on perpendicular magnetic anisotropy of cobalt-iron-boron alloy. Applied Physics A, 129:7. DOI: 10.1007/s00339-023-06759-y, https://link.springer.com/article/10.1007/s00339-023-06759-y

9. Firat,Y. et .,(2024). Large-area fabrication of nanometer-scale features on GaN using e-beam lithography. Journal of Vacuum Science & Technology B, DOI: 10.1116/6.0003270, https://pubs.aip.org/avs/jvb/article/42/2/022801/3267394

10. Vidawati, S., et al. (2020). Structural Characterization of Thin Epitaxial GaN Films on Polymer Polyimides Substrates by Ion Beam Assisted Deposition. Advances in Materials Physics and Chemistry, 10:09, 199–206. DOI: 10.4236/ampc.2020.109015, https://www.scirp.org/html/1-1510759_103178.htm
