A Hall Effect Measurement System using AC and DC Fields | PDL-1000

Semilab’s PDL Hall system is suitable for both AC and DC Hall measurement modes. The AC magnetic field measurement can be performed on materials with a mobility of less than 0.1 cm²/Vs, which can be superior to the DC magnetic field measurement mode.

What Materials Can be Measured Using PDL-1000?

• Thermoelectric materials
• Photovoltaics: aSi, CIGS, perovskite
• Organic electronics: OTFT, OLED
• Transparent conductive oxides (TCO): ITO, AZO, ZnO, IGZO
• Wide bandgap materials
• III-V, II-VI semiconductors and other semiconductor materials

Options:

• Unique CRPH (carrier resolved photo-Hall) measurement for minority carrier mobility
• LN2 cryostat for temperature-dependent measurement

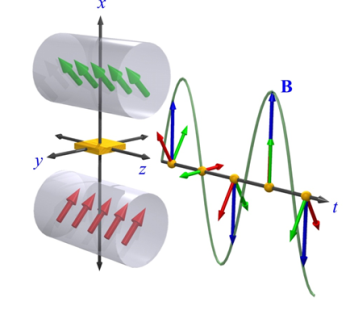

Operation of the Parallel Dipole Line magnets. Image Credit: Oki Gunawan/IBM Research

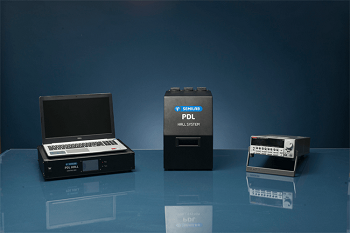

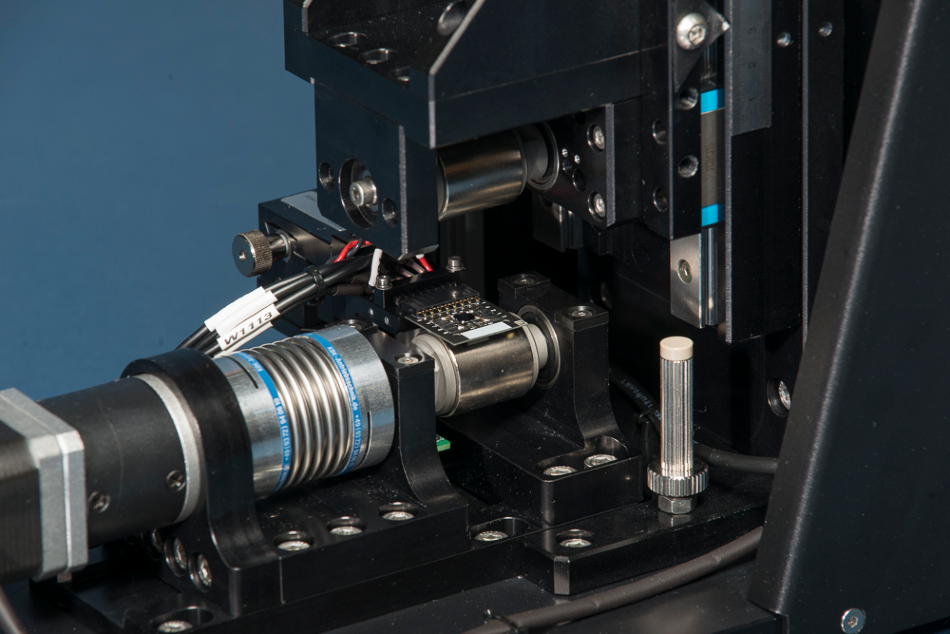

PDL-1000 setup and sample holder. Image Credit: Semilab Semiconductor Physics Laboratory

High Sensitivity Parallel Dipole Line Hall Measurement With AC/DC Magnetic Field

Key Features:

• Simple and sturdy tabletop system design
• A broad range of mobilities, such as semi-insulating samples and very low mobilities (< 0.1 cm²/Vs), can be measured, including the ability to carry out both conventional static magnetic field (DC) and alternating (AC) Hall measurements
• Tabletop arrangement, using rotating Parallel Dipole Line magnets (bulky electromagnet not required)
• Background illumination option
• Software retrieves a low Hall signal with the help of software-based lock-in detection (this avoids the need for expensive hardware-based lock-in detection)
• Software-regulated measurement and automated parameter extraction
• A cooling system is not required
• Easy operation
• High sensitivity (ability to handle mobility < 0.1 cm²/Vs)
• Uniformity (< 2 %, sample size up to 10 × 10 mm)
• Large magnetic field (approximately 2.5 Tesla pk-pk)
• Proprietary signal processing and user interface (UI) software
• Optional gate bias voltage.

For more information, please visit the supplier webpage or request a quote.

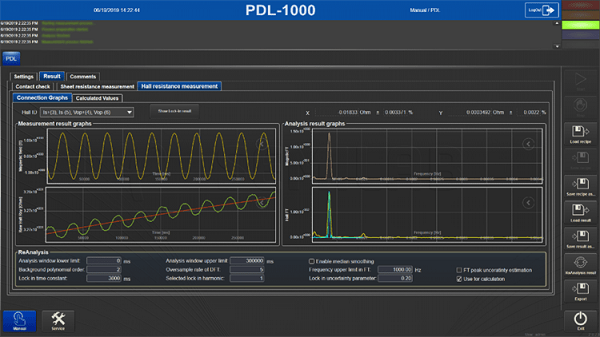

Measurement results. Image Credit: Semilab Semiconductor Physics Laboratory

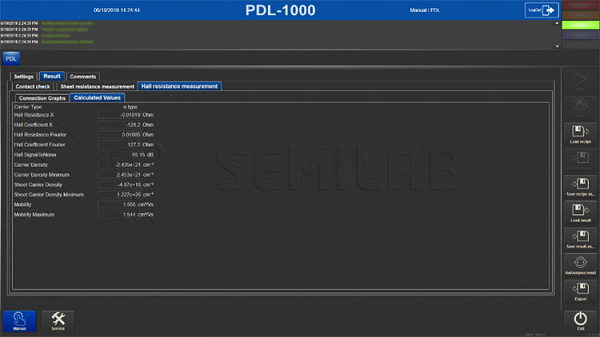

Screen copy of PDL-1000 measurement sequence. Image Credit: Semilab Semiconductor Physics Laboratory

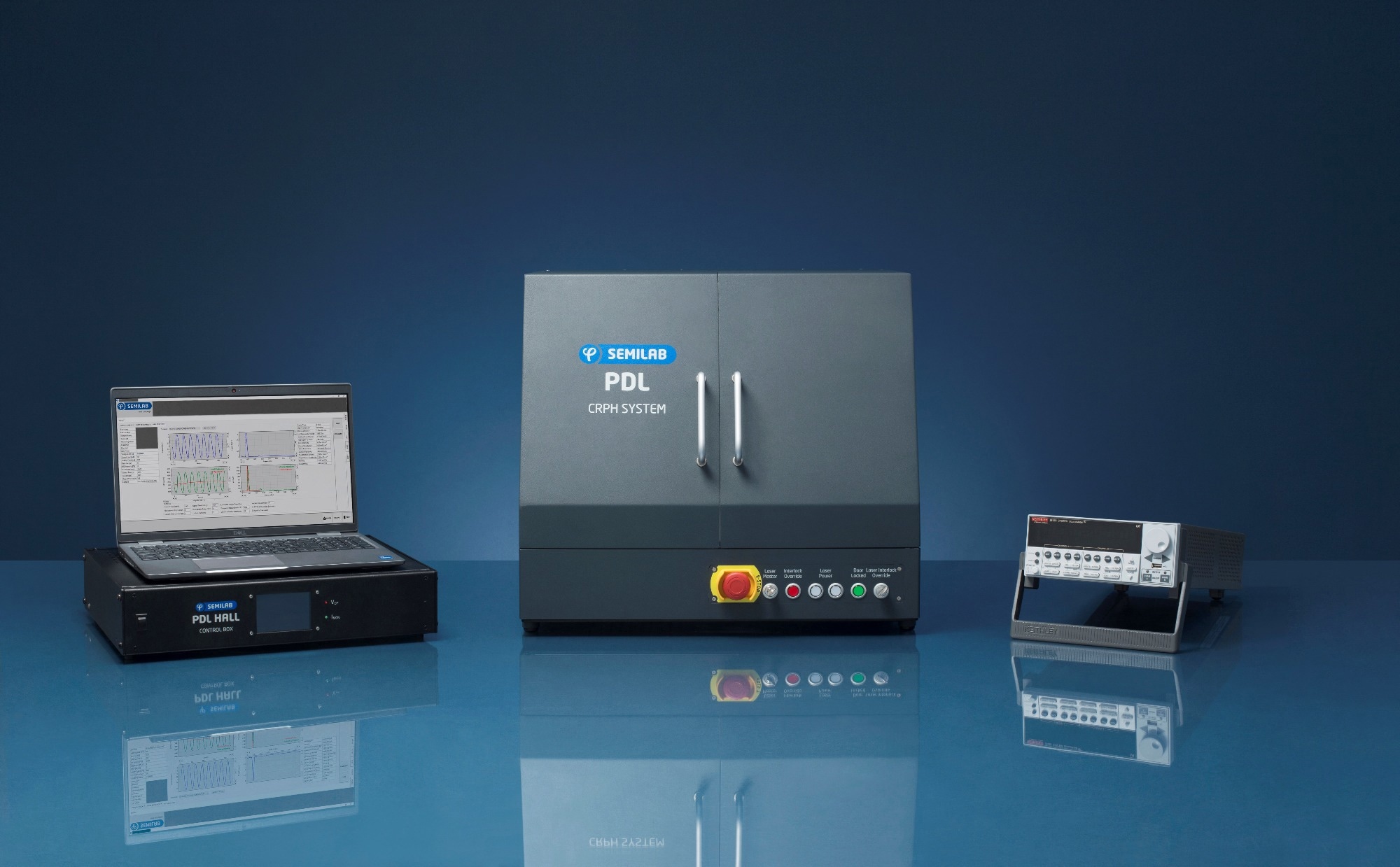

PDL-1000 with CRPH option. Image Credit: Semilab Semiconductor Physics Laboratory
