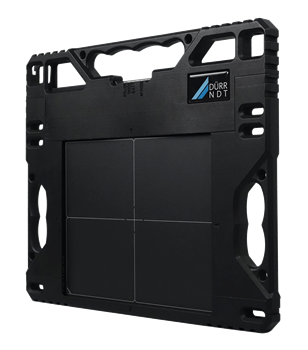

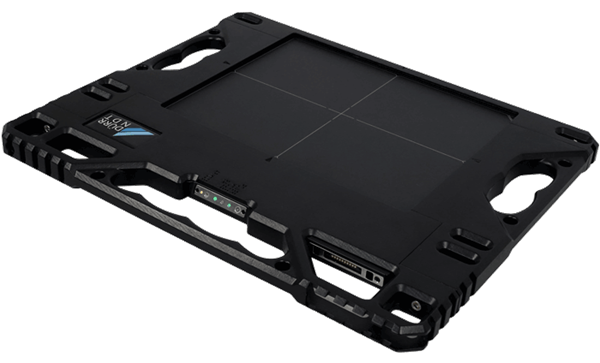

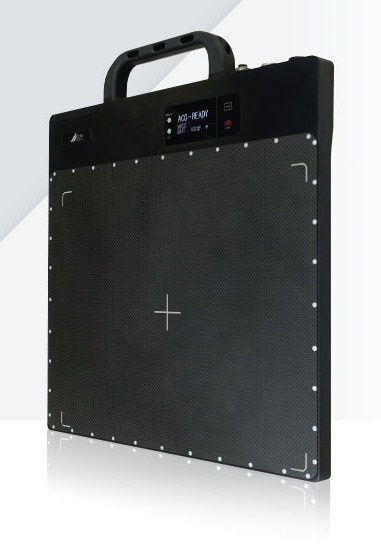

The D-DR 2329 NDT is a portable, high-resolution digital detector array (DDA) that can withstand extreme industrial circumstances. It is ideal for welding inspection.
- High-resolution
- Compact design
- 23 × 29 cm active area, ideal for weld inspection
- Lightweight and ruggedized
- 3.4 kg / 70 cm drop test pass
Important Features
Image Credit: DÜRR NDT GmbH & Co. KG
- Perfect for X-ray sources
- Electronics that are protected up to 450 kV
- Extremely durable design with detachable carry handle
- High resolution 75 μm pixel pitch (6.7 lp/mm)

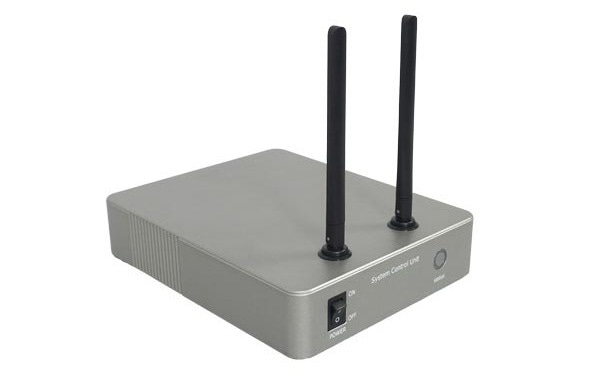

- Integrated wireless access point

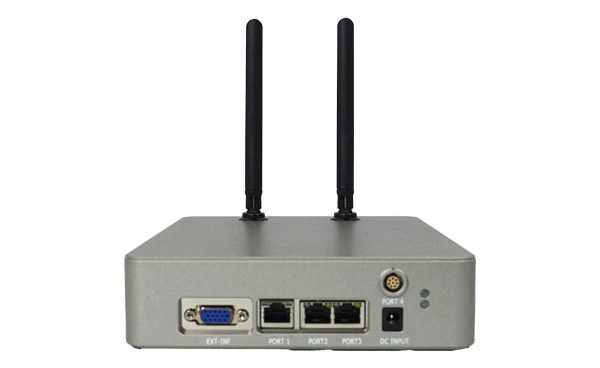

- Connector for gigabit Ethernet and power
- 70 cm drop test pass
- Dust-tight and waterproof (IP67)
- For both stationary and mobile applications
Technical Data
Source: DÜRR NDT GmbH & Co. KG
| |
D-DR 2329 NDT |
| Active area |
230 mm x 288 mm (9.05" x 11.33") |
Dimensions detector /
incl. housing
(H x W x D) |
322 mm × 355 mm × 17 mm
391 mm x 473 mm x 27 mm |
Weight detector /
incl. housing |
3.4 kg (7.5 lbs)
4.7 kg (10.3 lbs) |
| Number of pixels |
3072 x 3840 |
| Frame time |
3 s to 180 s |
Image transfer time
(wired/wireless) |
2 s / 3 s |
| Maximum energy |
450 kV (for long life in typical applications), Isotopes (with typical in-field usage) |
| Pixel pitch |
75 μm |
| Maximum SRb |
80 μm |
| Scintillator |
GOS |
| ADC |
16-bit |
| Interface |
Gigabit Ethernet, WLAN: 2.4 GHz (802.11n) / 5 GHz (802.11ac) |
| Battery |
2 x Lithium-ion (7.6 V, 23.6 Wh) |
| Operating conditions |
-20 to 50 °C (-4 to 122 °F), 10 to 90 % humidity |
| Protection level |
IP67 (dust-tight and waterproof) |
| Software |
DÜRR NDT D-Tect X |
| Scope of supply |
Housing, 4 batteries, battery charger, Ethernet adapter cable |
Sample Images

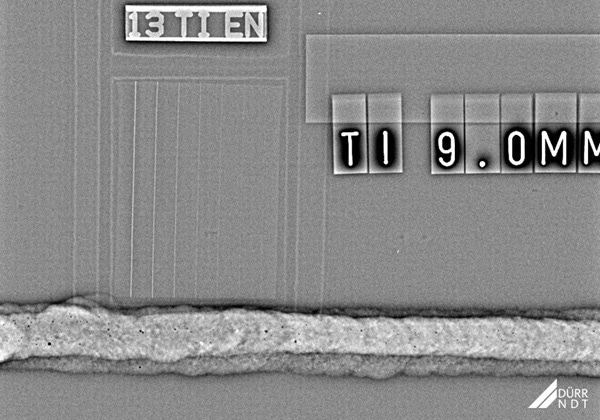

Weld seam, 9 mm titanium plate, X-ray (ISO 17636-2 Class B compliant). Image Credit: DÜRR NDT GmbH & Co. KG

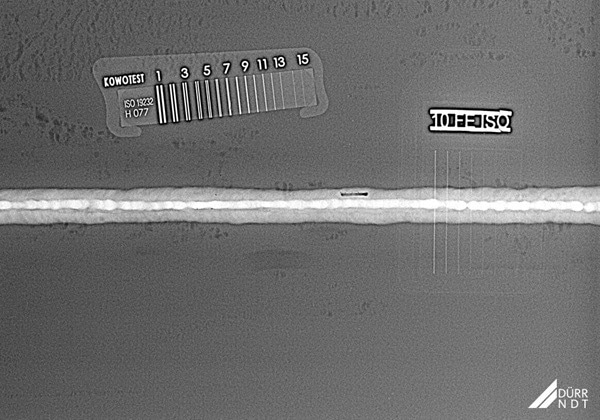

Weld seam, 10 mm steel plate, X-ray (ISO 17636-2 Class B compliant). Image Credit: DÜRR NDT GmbH & Co. KG

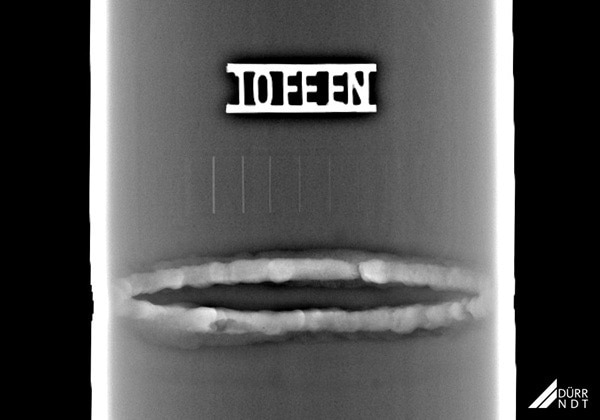

Double wall examination, DN 86 mm, t = 3.6 mm, X-ray, Elliptic technique (ISO 17636-2 Figure 11). Image Credit: DÜRR NDT GmbH & Co. KG
Accessories
Positioning Tool
Image Credit: DÜRR NDT GmbH & Co. KG
Image Credit: DÜRR NDT GmbH & Co. KG
The positioning tool makes mounting the D-DR 1024 NDT on a pipe (Ø 10 mm to 90 mm) or other object simple and safe.
CP120B/CP160B X-Ray Generator
Image Credit: DÜRR NDT GmbH & Co. KG
Image Credit: DÜRR NDT GmbH & Co. KG

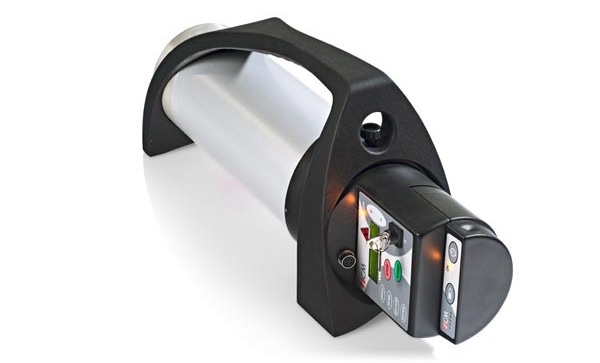

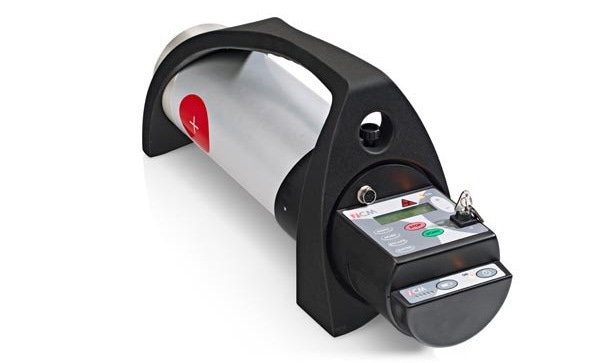

Portable X-ray generators with an uninterrupted possible output of 120 or 160 kV. Exclusively available in conjunction with an X-ray imaging device and software.
