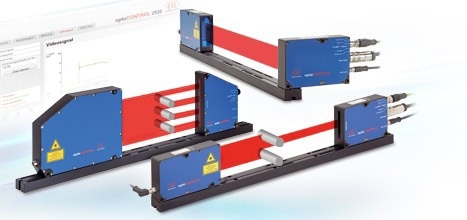

The optoCONTROL 2520 is a compact laser micrometer complete with a built-in controller. With a high-resolution model option spanning measuring ranges of 46 mm and 95 mm, alongside adaptable mounting distances, it caters to diverse applications in quality monitoring and production control.
Users can position the measurement object anywhere within the light curtain, and there is flexibility in choosing the distance between the transmitter and receiver.
Image Credit: Micro-Epsilon
Characteristics
- Measuring ranges (mm): 46/95
- Resolution maximum: 1 µm
- Linearity maximum: 12 µm
- Concurrent output of numerous measurement values
- Variable distances up to 2 m
- Compact design with integrated controller
- Laser class 1M
- Configurable with web interface
- Interfaces Ethernet/EtherCAT/RS422/analog output/EtherNet/IP/PROFINET

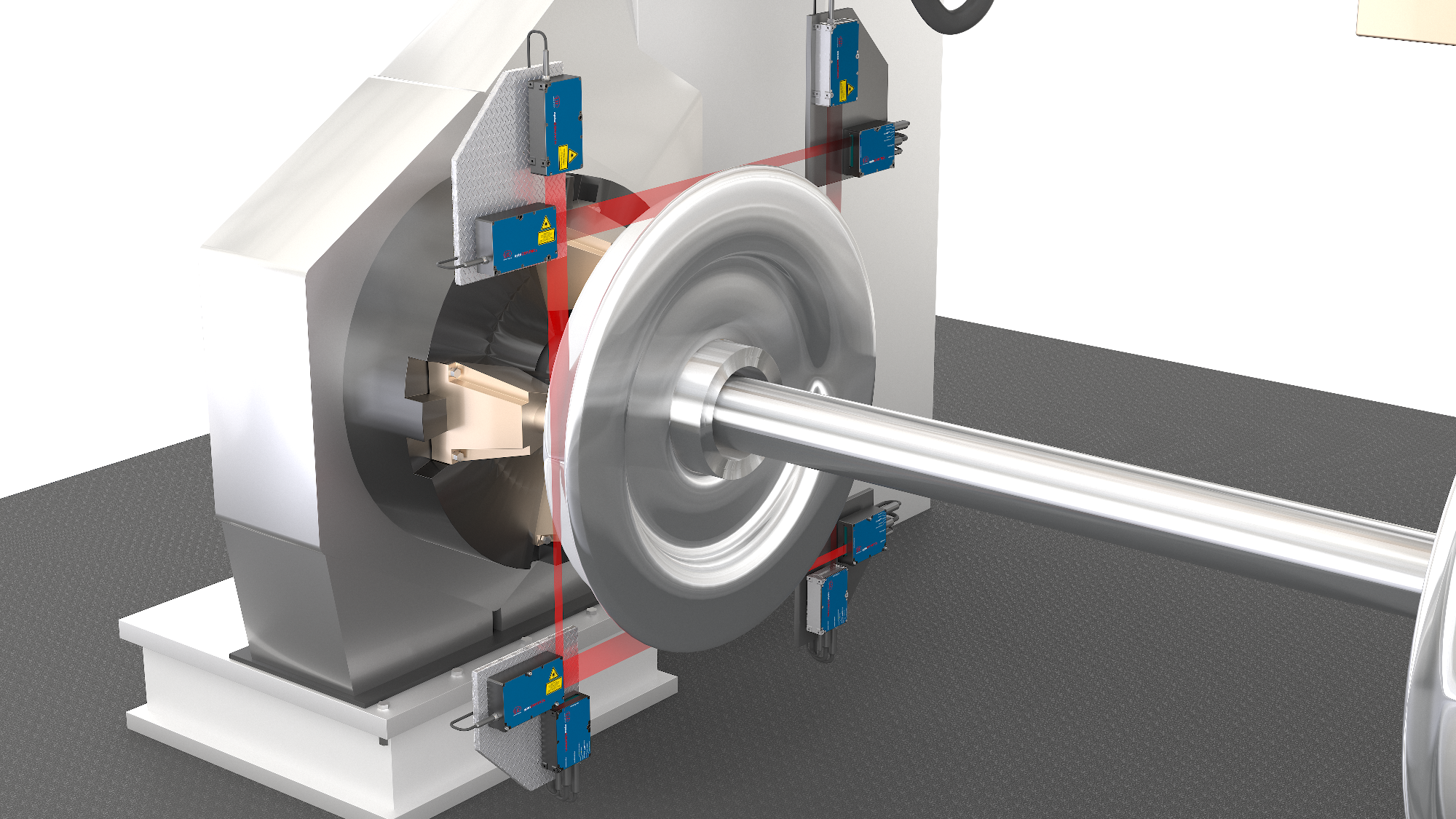

Optical Precision Micrometers for Restricted Spaces
The optoCONTROL 2520-46(090) and optoCONTROL 2520-95 (270) micrometers provide a receiver with a 90°-rotated lens. The receiver's flat design design streamlines installation in confined spaces.
Within the light curtain, the object being measured can be positioned anywhere. Moreover, users can select the distance between the light source and receiver, with a range of up to 2 m.
Image Credit: Micro-Epsilon
Unique Operating Concept for Quick and Easy Commissioning
The optoCONTROL 2520 micrometers are managed through an intuitive web interface accessible via any standard web browser. This interface allows for the display of readings and limit values, as well as the selection and application of filters.
A video signal is also provided for precise measurement configuration. Setting parameters for specific measurement programs is quick and simple. For each segment, gap, or diameter, it is possible to output the center axis and the position of individual edges.
Image Credit: Micro-Epsilon
