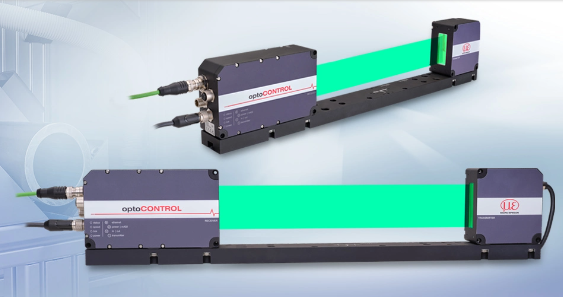

The optoCONTROL 2700 high-performance LED micrometer enables unsurpassed accuracy for demanding measurement tasks. Thickness, gaps, edges and segments can be measured with high precision. Precise measurements of small objects from 0.3 mm can be performed. The LED precision micrometer offers a linearity of ≤ 1 µm and a digital resolution of 10 nm. It is used, for example, in semiconductor production, the automotive industry, aerospace and medical technology. Very little installation and cabling are required because the controller is built into the receiver.
The decisive advantage is the telecentric optics, which significantly optimizes the measurement accuracy. The measuring object is illuminated evenly, and the real-time inclination correction ensures extremely accurate measurement results even when the measuring object is positioned at an angle or tilted. Orthogonal alignment of the measuring object is therefore not necessary.
Whether highly reflective objects such as rollers or transparent objects such as glass wafers - these innovative micrometers offer an optimum solution wherever maximum precision and reliability are required. In addition to precise measurements, the integrated contamination detection feature offers a proactive solution for detecting contamination or foreign bodies on the measuring surface. This function helps to avoid measurement errors and to raise the quality of the results to the highest level. The outstanding price-performance ratio completes the service package.
Characteristics
- Measuring range: 40 mm
- Submicrometer resolution of 10 nm
- Exposure time: 8.5 µm
- Linearity ≤1 µm
- Angle measurement of the object to the XY plane in the light beam
- Six presets for common measurement tasks
- Active tilt correction of the measuring object in real time
- Black and white image for easy alignment of the measuring object using scaling
- Configurable via web interface
Active Tilt Correction of the Measuring Object
The optoCONTROL 2700 detects the precise alignment and angle of the measuring object. Because of the integrated evaluation, the measured value is automatically corrected for the measuring object's inclination. Consequently, the precise measurement value is output. The inclination correction is available for the diameter measuring programs. The web interface allows for the output of the detected image for visual verification.
Image Credit: Micro-Epsilon
Image Credit: Micro-Epsilon
Image Credit: Micro-Epsilon
Angle Measurement of the Object
Image Credit: Micro-Epsilon
The optoCONTROL 2700 can accurately detect and output the inclination up to 45° if objects are not precisely at a 90° angle within the measuring range.
Simple Operation Via Web Interface and Presets for Common Applications
Image Credit: Micro-Epsilon
Using an intuitive web interface, the optoCONTROL 2700 can be configured in its entirety without additional software. Users can access the web interface through an Ethernet connection, which provides a wealth of parameterization options for all measurement tasks and allows for quick and simple setup of parameters like averaging, measuring rate, and presets. The stored presets allow quick and simple sensor parameterization for the measurement task with only one click.
Black and White Image for Easy Alignment with the Measuring Object
Image Credit: Micro-Epsilon
The set-up mode makes precise positioning of the measuring object in the light beam quick and simple. The integrated black-and-white image makes it simple to set up the measuring object. This allows the user to set up and adjust the precise position more quickly and with less effort. A red line indicates the midpoint of the measurement range on both axes.

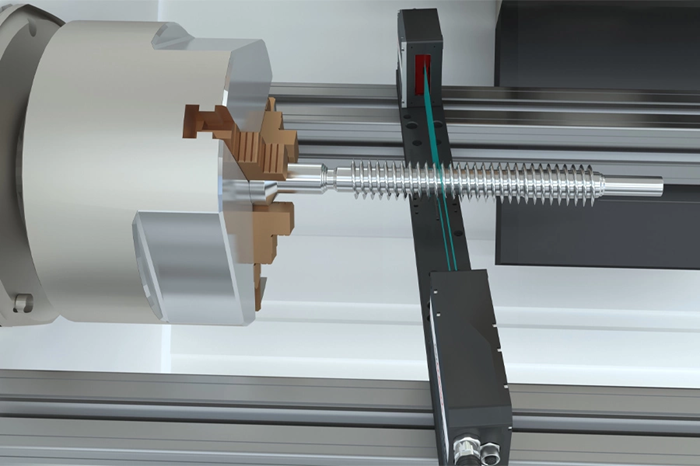

Application Examples
Image Credit: Micro-Epsilon
Image Credit: Micro-Epsilon
Image Credit: Micro-Epsilon
