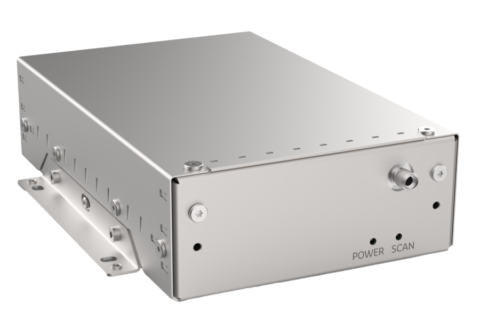

AvaSpec-VARIUS™-OEM: The Ultimate Integration-Ready Spectrometer for Versatile Applications

The VARIUS™ OEM spectrometer is the epitome of integration-friendly design, with unsurpassed versatility for embedding into current and new OEM systems. The OEM variant of the VARIUS™ has sturdy and efficient characteristics, making it suitable for various applications.

The VARIUS™ spectrometer is offered in regular and industrial (OEM) versions. It has a 2048 or 4096-pixel detector and supports high-speed data transfer via USB3 and Gigabit Ethernet.

This industrial version is designed to integrate seamlessly with current systems or equipment. Its sturdy casing allows for easy integration into production lines, manufacturing processes, medical devices, and other setups.

This type of spectrometer is designed to survive extreme environments, deliver dependable and precise readings, and allow for seamless data integration with other machines or control systems. Its versatility and adaptability make it ideal for various applications, including in-line quality control, process monitoring, and automation.

Patented Technology

The VARIUS™ outperforms its predecessors due to its patented technology and enhanced optical bench design. The VARIUS™ ensures precision and dependability for numerous applications. Integrate seamlessly with our AvaSoft software and crosslink solutions to increase flexibility.

Avantes Varius Spectrometer | When Versatility Meets Precision

Video Credit: Avantes

High Reproducibility

Avantes’ automated manufacturing method for the VARIUS™-OEM spectrometer allows for high-volume production while maintaining remarkable efficiency, speed, and precision. This automation assures repeatability, resulting in identical VARIUS™-OEM spectrometers. This simplified procedure allows us to produce high-quality spectrometers faster than ever before.

Product Compatibility

The Avantes light sources, accessories, and AvaSoft software can be used with the VARIUS™-OEM spectrometer to enable users to customize settings to their specific measurement requirements.

Technical Data. Source: Avantes

  VARIUS-OEM 2K VARIUS-OEM 4K
Optical Bench Symmetrical Czerny-Turner design, 75 mm focal length; VRS bench Symmetrical Czerny-Turner design, 75 mm focal length; VRS bench
Wavelength range 190 – 1100 nm 190 – 1100 nm
Stray light 0.1 – 1% (typical value 300 l/mm, blaze 300 nm < 0.3%) 0.1 – 1% (typical value 300l/mm, blaze 300 nm < 0.3%)
Detector HAM S11639, CMOS linear array, 2048 pixels (14×200 µm) HAM S13496, CMOS linear array, 4096 pixels (7×200µm)
Signal/Noise 375:1 365:1
Dynamic Range 4500 4500
Dark noise 15 cnts 15 cnts
AD converter 16-bit, 6 MHz 16-bit, 6 MHz
Integration time 9 µs – 30 s 9 µs – 30 s
Interface USB3.0 high speed, 5 Gbps, Gigabit Ethernet (1 Gbps) USB3.0 high speed, 5 Gbps, Gigabit Ethernet (1 Gbps)
Sample speed on-board averaging 0.38 ms/scan 0.70 ms/scan
Data transfer speed 0.38 ms/scan (USB3), 1.0 ms (ETH) 0.70 ms/scan (USB3), 1.31 ms (ETH)
Digital I/O HD-26 connector, 2 Analog in, 2 Analog out, 13 Digital bidirectional, trigger, sync., strobe, laser HD-26 connector, 2 Analog in, 2 Analog out, 13 Digital bidirectional, trigger, sync., strobe, laser
Dimensions, weight 179×110,1×44,8, 799,5 grams 179×110,1×44,8, 799,5 grams
Power supply Default USB3 power, 500 mA or 12 VDC, 300 mA Default USB3 power, 500 mA or 12 VDC, 300 mA
Temperature range 5 – 55 °C 5 – 55 °C
