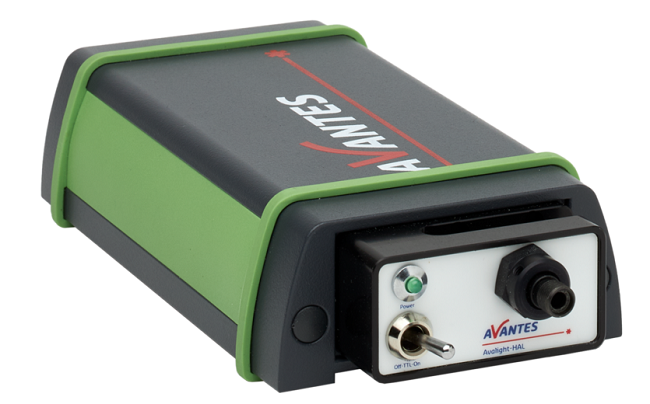

The AvaLight-HAL-S-Mini excels in Avantes' halogen light range using visible light to near-infrared. With its adjustable fiber connection focusing feature, the AvaLight-HAL-S-Mini is a small, stabilized halogen light source that maximizes output power at the specified wavelength.
This adaptable light source features an electrical power output that can be adjusted to provide more power or a longer lifespan for the lightbulb.
The AvaLight-HAL-S-Mini has a front filter slot that can hold a 1” round or a 2” × 2′” square filter to block certain wavelength ranges or quickly reduce intensity.
The AvaLight-HAL-S-Mini's adjustable focus ensures that all the power is passed through the optical fiber, allowing it to get the most out of the light source. Replacing a bulb only takes a few minutes and is a simple process.
An optional combination direct-attach cuvette holder and attenuator (CUV-ATT-DA-HAL) is available. The in-line attenuator (ATT-INL) or in-line filter holder (FH-INLINE) can also be used for attenuation.
Customers can use the spectrometer or a dongle on the rear to regulate the optical output. At its lowest setting, the lightbulb has a color temperature of 2647 K, but it lasts far longer.
With a bulb lifetime of 2000 hours, the standard or medium setting offers approximately 30% more power and modifies the color temperature to 2759 K. With a shorter bulb lifetime, the high-power setting produces a color temperature of 2879 K or around 70% more power than the long-life level.
Users may operate the internal TTL shutter of the AvaLight-HAL-S-Mini using the AvaSpec spectrometer. This enables the utilization of the AvaSoft spectroscopic software's automatic save dark feature.

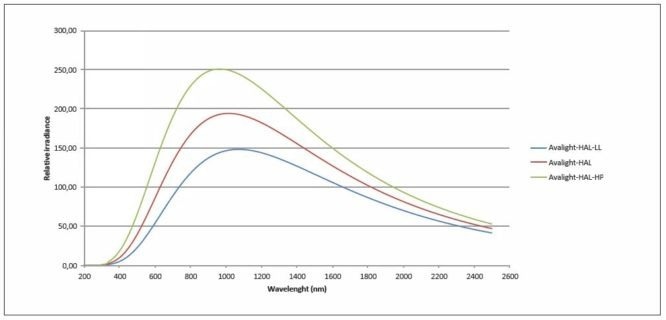

![Spectral output of AvaLight-HAL-S-Mini.](https://d12oja0ew7x0i8.cloudfront.net/images/equipments/EquipmentImage_9100_17210164271346490.jpg)
Spectral output of AvaLight-HAL-S-Mini. Image Credit: Avantes
Benefits
- Stabilized, compact halogen light source
- TTL shutter inside
- Long-life and high-power settings to meet individual requirements
- A variety of accessories are offered for a full setup.
Product Information
Technical Data. Source: Avantes
|
AvaLight-HAL-S-Mini (standard) |
AvaLight-HAL-S-Mini (long life) |
AvaLight-HAL-S-Mini (high power) |
Wavelength range |
360-2500 nm |
360-2500 nm |
360-2500 nm |
Stability |
< 0.1%/°C |
< 0.1%/°C |
< 0.1%/°C |
Drift |
< 0.1%/hour |
< 0.1%/hour |
< 0.1%/hour |
Time to stabilize |
< 20 min |
< 20 min |
< 20 min |
Output to bulb |
12.0 VDC/0.87 A |
10.8 VDC/0.8 A |
13.5 VDC/0.93 A |
Bulb life |
2000 h |
7081 h |
440 h |
Optical power* 200 µm fiber |
0.59 mWatt |
0.35 mWatt |
0.77 mWatt |
Optical power* 600 µm fiber |
4.53 mWatt |
3.53 mWatt |
5.97 mWatt |
Optical power* 1000 µm fiber |
12.1 mWatt |
9.5 mWatt |
15.9 mWatt |
Bulb color temperature |
2,759 K |
2,647 K |
2,879 K |
Power requirement |
12 VDC/2.08 A |
12 VDC/2.08 A |
12 VDC/2.08 A |
Temperature range |
0-55 °C |
0-55 °C |
0-55 °C |
Dimensions, weight |
150 x 78 x 37 mm, 510 g |
150 x 78 x 37 mm, 510 g |
150 x 78 x 37 mm, 510 g |
Lifetime shutter |
1,000,000 cycles (typical) |
1,000,000 cycles (typical) |
1,000,000 cycles (typical) |
*Optical power measured from 350-1100 nm
Ordering Information. Source: Avantes
|
|
AvaLight-HAL-S-Mini2 |
10 W Tungsten Halogen light source, fan cooled, incl. TTL shutter, needs extra PS-12 V/2.08 A power supply |
AvaLight-HAL-S-Mini2-RM |
Rack-mounted version of AvaLight-HAL-S-Mini2 |
IC-DB26-2 |
Interface cable AvaSpec-USB2/EVO platform to AvaLight-HAL-S-Mini2 for shutter and power setting |
AvaLight-HAL-B-Mini2 |
10 W Tungsten Halogen Replacement bulb for AvaLight-HAL, AvaLight-HAL-S-Mini(2) |
PS-12V/2.08A |
Power supply 100-240 VAC/12 VDC, 2.08 A, necessary for AvaLight-HAL-Mini2 |
DONGLE-H |
Dongle for high power setting |
DONGLE-L |
Dongle for long life setting |
Options. Source: Avantes
|
|
GL-WG305-3 |
Separate 50 x 50 x 3 mm long-pass filter > 305 nm |
GL-KG3-3 |
Separate 50 x 50 x 3 mm bandpass filter, transparent > 325 nm and < 700 nm |
GL-BG28-3 |
Separate 50 x 50 x 3 mm bandpass filter, transparent > 360 nm and < 500 nm |
GL-GG395-3 |
Separate 50 x 50 x 3 mm long-pass filter > 395 nm |
GL-GG475-3 |
Separate 50 x 50 x 3 mm long-pass filter > 475 nm |
GL-OG515-3 |
Separate 50 x 50 x 3 mm long-pass filter > 515 nm |
GL-OG550-3 |
Separate 50 x 50 x 3 mm long-pass filter > 550 nm |
GL-NG9-1 |
Separate 50 x 50 x 1 mm Neutral Density filter (transmission ca. 10% 400-1100 nm) |
GL-NG9-2 |
Separate 50 x 50 x 2 mm Neutral Density filter (transmission ca. 1% 400-1100 nm) |
GL-NG9-3 |
Separate 50 x 50 x 3 mm Neutral Density filter (transmission ca. 0.1% 400-1100 nm) |
