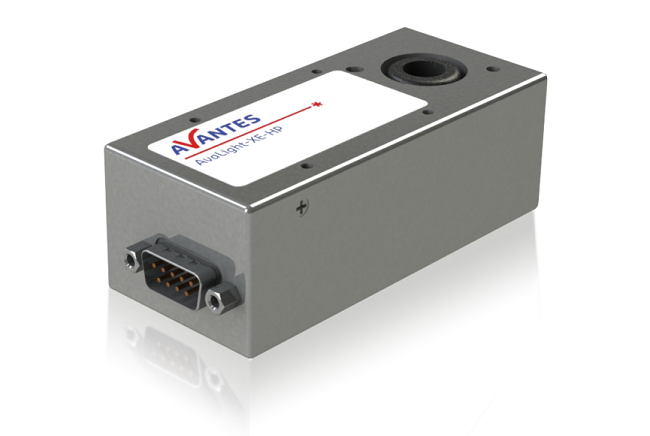

The AvaLight-XE-HP is a pulsed xenon light source ideal for UV applications such as fluorescence. This high-power light source has a small housing, making it ideal for integration into a customer’s current systems. The XE-HP produces much more power than the AvaLight-XE (2W).
The flashes synchronize with the spectrometer's data when linked to the AvaSpec spectrometer via the Y cable. AvaSoft allows users to adjust the number of flashes for every scan.
Benefits
- Small pulsed xenon light source
- Ideal for fluorescent
- Simple to incorporate
Product Information
Technical Data. Source: Avantes
| |
|
| Spectral output |
200 nm to 1000 nm |
| Total optical power output |
Max. 6 W/39 mJ per flash |
| Synchronization input |
9-pin sub-D connector, TTL level |
| Pulse rate (max.) |
150 Hz |
| Long life |
> 1,0 x 10 9 flashes |
| Connector |
SMA-950 connector |
| Power requirement |
11-28 VDC/2.08 A |
| Dimensions, weight |
98 x 44 x 35 mm, 192 g |
Ordering Information. Source: Avantes
| |
|
| AvaLight-XE-HP |
6 W xenon light source (200-1000 nm) with Y-cable for powered trigger connection to AvaSpec-EVO. Needs PS-12V/2.08A power supply |
| PS-12V/2.08A |
Power supply 100-240 VAC/12 VDC, 2.08 A for AvaLight-XE-HP |
| CC-VIS/NIR-SMA |
Cosine Corrector with diffusing material for UV/VIS/NIR. Onde side SMA-female; Other SMA-male |
| IC-XE-HP-WTB-2 |
Interface cable incl. pwr, DB9 to WTB and pwr, 2m for XE-HP to AvaSpec-Mini MK2 IO connector and power supply |
