PerkinElmer's MPS 320™ microwave digestion system is compatible with PerkinElmer's AA, ICP-OES, and ICP-MS instruments and can handle various sample matrices and applications. It is dependable and simple to use. It offers a closed-vessel digestion option, required when working with volatile materials, or innovative, user-friendly, high-throughput auto-venting containers, which enable digestion to continue when a predetermined pressure is achieved.
Users can also choose between four alternative rotor configurations based on their needs. This is in addition to cutting-edge temperature/pressure management and several unique safety features.

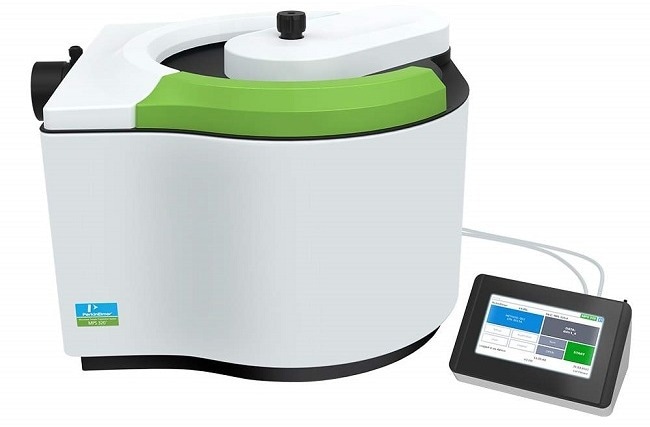

MPS 320. Image Credit: PerkinElmer

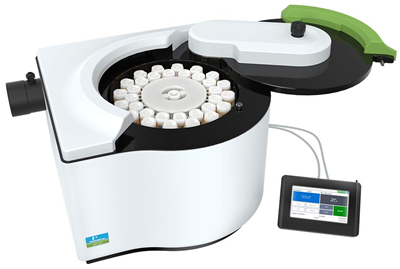

MPS 320. Image Credit: PerkinElmer
Overview
The MPS 320 microwave system is available in different configurations:
- With MR-85 auto-venting vessels (85 mL volume) in 16-position or 32-position rotors, which is ideal for high-throughput third-party testing laboratories that require: quick sample-to-sample conversion to increase the number of samples per batch; high operating efficiency and quick learning due to ease of usage; minimal operating costs to optimize profit per sample
- With MR-50 permanently sealed vessels in a 16-position rotor, perfect for cannabis testing and other third-party lab applications in which data integrity and reproducibility are critical, and where the ability to handle different applications per rotor is valuable.
- With MR-100 permanently sealed high pressure vessels in an 8-position rotor, ideal for industrial applications that require digestion of difficult samples, such as oils and polymers.
The MPS 320 microwave digestion system has additional special characteristics, including:
- Each vessel has dependable temperature (DTC) and pressure (DPC) control to provide precise and consistent results
- Two types of venting indicators
- Top-loading design and fume-collection system to ensure safe operation
- Software that is intuitive and can be controlled remotely for users of different levels of digestion expertise
- 21 CFR Part 11 software option for regulated laboratories
- Reliable vessels with guaranteed protection for economical sample preparation
Source: PerkinElmer
| Part Number |
Model Name |
Vessel Volume |
Rotor Capacity |
Max. Working Temperature |
Max. Working Pressure |
| N3136001 |
MPS 320 Microwave: MR-85/32 |
85 mL |
32 vessels |
High |
Medium |
| N3136002 |
MPS 320 Microwave: MR-85/16 |
85 mL |
16 vessels |
High |
Medium |
| N3136005 |
MPS 320 Microwave: MR-50/16 |
50 mL |
16 vessels |
High |
High |
| N3136003 |
MPS 320 Microwave: MR-100/8 |
100 mL |
8 vessels |
Ultrahigh |
Ultrahigh |
Specifications
Source: PerkinElmer
| |
|
| Capacity Load Throughput |
32 vessels |
| Depth |
61.0 cm |
| Height |
48.0 cm |
| Model Name |
MPS 320 Microwave: MR-85/32 |
| Volume |
85 mL |
| Weight |
59.0 kg |
| Width |
76.0 cm |
