PerkinElmer's Avio® 220 Max is a compact hybrid simultaneous ICP-OES analyzer designed for labs with low-to-medium throughput needs. Its unique plug-and-play characteristics make it the ICP with the quickest startup time on the market—cold start to analysis in about 10 minutes—saving users time and money by allowing them to shut down the instrument between runs.
Furthermore, it uses a vertical plasma and is designed to handle even the most challenging, high-matrix samples without dilution, providing performance, productivity, and a quicker return on investment.
The software Syngistix™ for ICP, last but not least, offers an easy-to-use and intelligent environment with smart monitoring for real-time instrument and sample diagnostics and results viewing for ensuring sample accuracy through quality control, internal standard performance, and sample analysis.
![Avio 220 Max ICP-OES.](https://d12oja0ew7x0i8.cloudfront.net/images/equipments/EquipmentImage_9117_17219705823296485.png)

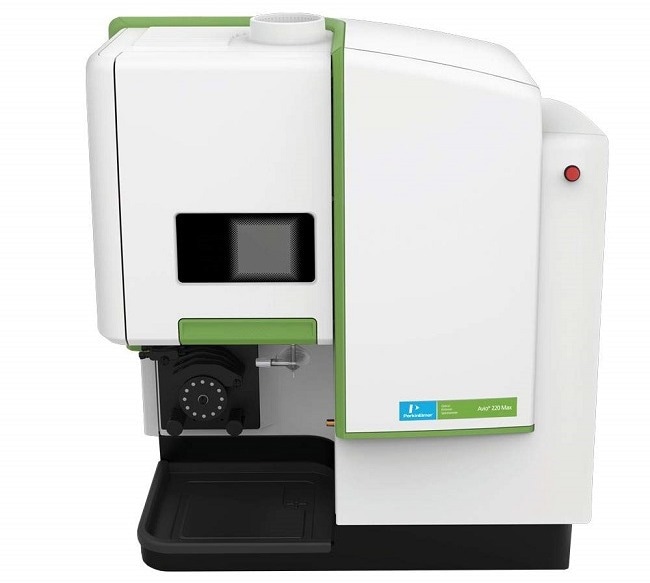

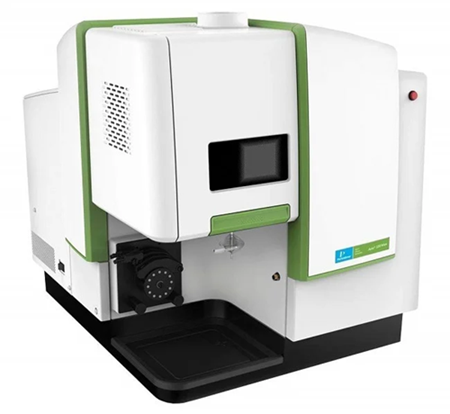

Avio 220 Max ICP-OES. Image Credit: PerkinElmer
Overview
The Avio 220 Max ICP-OES has the following exclusive features:
- Plug-and-play capability enables quick setup; it takes only ten minutes to get from cold start to analysis
- Acquiring background and analyte simultaneously with enhanced analyte sensitivity
- With no maintenance required, Flat Plate™ plasma technology produces a more stable and resilient plasma with the lowest argon consumption of any ICP
- The maintenance-free, argon-free interference elimination provided by the PlasmaShear™ technology
- Attenuation mode is entirely adjustable by wavelength and decreases the signal with a single button press without the need for manual dilution
- The design of the vertical plasma torch minimizes sample preparation time by offering 100% matrix tolerance
- Dual-view maximizes axial and radial plasma viewing to increase the linear dynamic range, measuring high and low concentrations in the same run, independent of wavelength
- The double-monochromator optical system provides great analytical performance
- Color PlasmaCam™ offers continuous observation of the plasma, facilitating method development and remote diagnostic capabilities
- Syngistix for ICP Software provides an intuitive, left-to-right, icon-based design that mirrors the progression of the workflow and includes smart features that help users through each stage for more control and confidence
The Avio 220 Max comes in two configurations, allowing users to choose the one that best fits their application or applications: one with Cross-Flow/Scott sample introduction and the other with Concentric/Cyclonic sample introduction.
Specifications
Source: PerkinElmer
|
|
21 CFR Part 11 Compatible |
Yes |
Depth |
76.0 cm |
Height |
81.0 cm |
Model Name |
Avio 220 Max Scott/Cross-Flow |
Warranty |
1 Year |
Weight |
100.0 kg |
Width |
65.0 cm |
