High-Resolution Industrial X-Ray CT Scanner

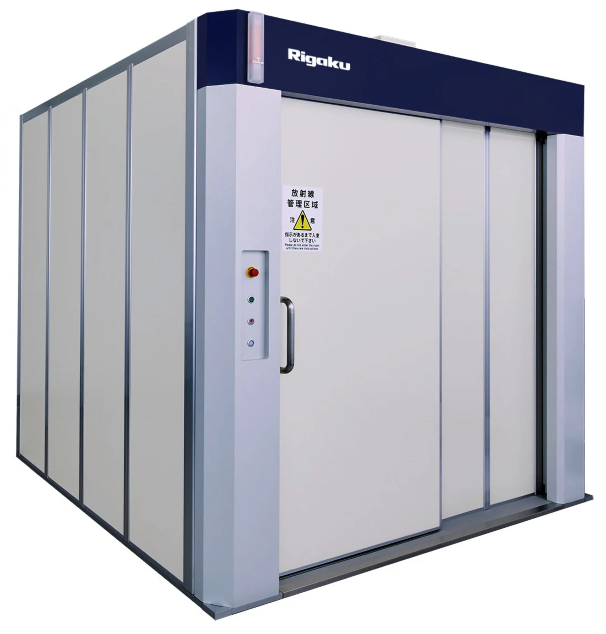

The Rigaku CT Lab HV is a high-resolution, high-voltage industrial X-ray CT scanner. The large radiation enclosure, wide door opening, 225 kV high-voltage X-ray source, and variable SOD (source-to-object distance) and SDD (source-to-detector distance) allow for non-destructive scanning of small to large samples up to 600 mm in diameter ×1200 mm in height with a 350 mm FOV (field of view).

Image Credit: Rigaku Corporation

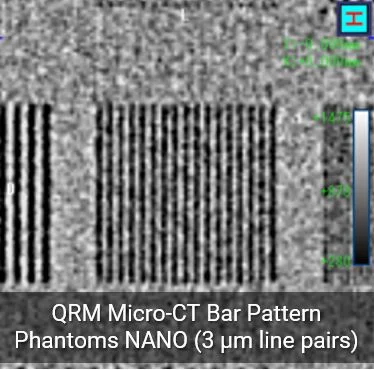

The high-resolution option provides genuine 3-micron spatial resolution. The unparalleled technical assistance will help users utilize cutting-edge analytical and simulation methods.

Image Credit: Rigaku Corporation

Overview

CT Lab HV Overview

What Can CT Lab HV Do?

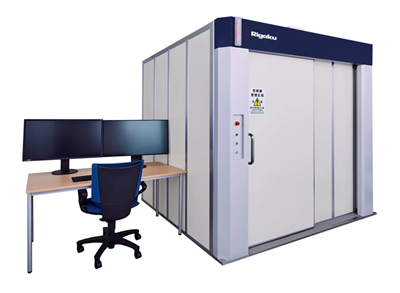

The industrial CT (computed tomography) scanner Rigaku CT Lab HV has high voltage and excellent resolution. The unparalleled technical assistance together with the CT Lab HV can assist users in:

• Determine if users built their products exactly as intended by scanning them non-destructively and comparing them to the design to detect quantitative deviations
• When a product fails, its failure can be easily identified by generating a digital twin (a CT scan of the product), which enables users to virtually test it through flow and stress simulations or visually study its internal structures
• Using non-destructive scanning, one can clearly view inside valuable components and items, such as expensive prototypes or historical artifacts

How Can Users Achieve High Resolution?

Image Credit: Rigaku Corporation

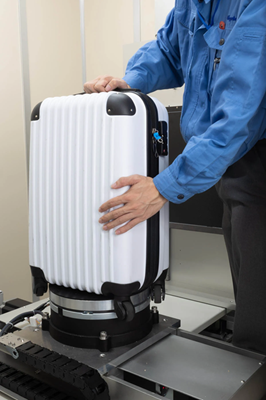

Rigaku CT Lab HV employs the cone-beam geometry. This geometry magnifies the sample image by using X-ray beam divergence. The magnification factor is calculated as the ratio of SOD (source-to-object distance) and SDD (source-to-detector distance). A CT scanner’s resolution and field of view (FOV) can both be adjusted using a wide range of SOD and SDD.

Users can perceive details in high resolution up to genuine 3-micron spatial resolution by decreasing SOD and increasing SDD. A high-voltage X-ray source can enhance image quality by reducing beam hardening artifacts for high-density materials like metals.

How Do Users Achieve 350 mm FOV?

Image Credit: Rigaku Corporation

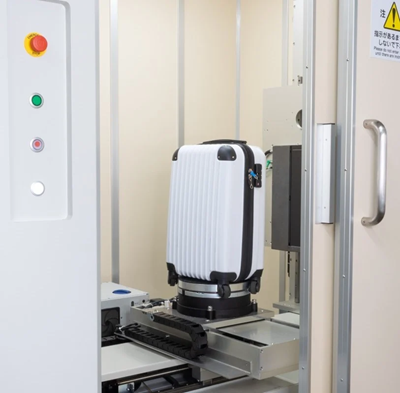

With its expansive radiation enclosure, wide opening door, and adjustable X-ray source height, sample position, detector height, and position, the CT Lab HV offers the utmost flexibility in handling big samples measuring up to 600 mm in diameter and 1200 mm in height, with a maximum field of view of 350 mm.

How Can Users Set Up Tests for the Experiment and Inspection Procedures?

Image Credit: Rigaku Corporation

Even though the scanner might provide good CT images, qualifying scanned objects and interpreting CT data are not always simple tasks. When users need answers quickly, data analysis might take a while if it is not well-optimized.

All CT Lab HVs include in-person training at the facility to ensure users feel comfortable collecting data and analyzing their own samples. The specialists will continue to assist users in setting up their inspection methods throughout the CT Lab HV.

Features

CT Lab HV Features

Versatile

The large radiation enclosure, broad door opening, and configurable SOD and SDD allow users to scan small to big materials with up to 350 mm FOV non-destructively.

High-Resolution

Users can see details in high resolution, up to genuine 3-micron spatial resolution, thanks to the variable SOD and SDD for resolution flexibility and the high-voltage X-ray source for decreased beam hardening artifacts.

Adaptable

Rigaku’s third-party software-friendly architecture allows users to select the analytical program that best meets their needs.

Powerful

The 225 kV high-voltage X-ray source allows users to acquire crisp images of thick materials like titanium and steel.

Fast

Users can save time by acquiring a crisp image in at least one minute.

Assuring

Since Rigaku's technical assistance extends beyond instrument training, users can obtain inspection findings quickly and confidently. The CT professionals will assist users in optimizing the scan, inspection, and certification analysis operations.

Specifications

CT Lab HV Specifications

Source: Rigaku Corporation

Options:

CT Lab HV Options

There are the following accessories available for this product:

Dragonfly

Image Credit: Rigaku Corporation

X-ray CT image processing, segmentation, and quantitative analysis software

VG STUDIO

Image Credit: Rigaku Corporation

X-ray CT image visualization, image processing, quantitative and dimensional analyses software
