Advanced Bending Beam Rheometer by ATS

The ATS Bending Beam Rheometer 3S (BBR3S) conducts flexural tests on asphalt/bitumen binder and comparable specimens following AASHTO T 313, AASHTO TP 87, ASTM D6648, GOST 58400.8-2019, and BS EN 14771 standards as part of Superpave's PG grading system.

The BBR3 is an ATS original first-of-its-kind instrument, offering a cutting-edge internal computer system with touchscreen technology and innovative user-friendly software.

Download the Brochure for More Information

Features

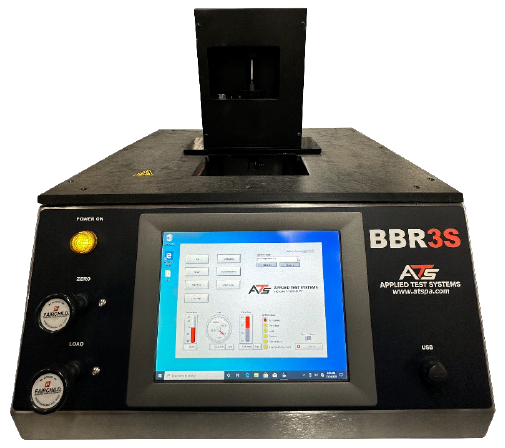

Advanced Bending Beam Rheometer by ATS

Image Credit: Applied Test Systems

  • Redesigned weight pan and calibration disk enables LVDT sensor standardization with less chance for potential error by reducing variations in weight pan positioning during standardization
  • Next-generation controller offering enhanced temperature control algorithm stability
  • Quiet operation and extended motor life through new motor containing no moving parts while remaining unaffected by moisture
    • 12-inch, industrial-strength touchscreen display
    • Programmable test parameters comprise bath temperature, deflection plot, load, load plot, specimen size, and testing company
    • An optional changeable specimen facilitates a smooth transition for testing crack sealants
    • Remote monitoring capabilities
    • Small external chiller producing less noise when in use
    • Customizable report settings: include accreditations, company log, and notes
    • Test data available in HTML and CSV

Download the Brochure for More Information

Product Specifications

Source: Applied Test Systems


Load Frame Construction Integral stainless steel, frictionless construction
Loading Shaft Point In-line stainless steel with blunt point
Test Load Variable test range from 0 to 4,500 mN (459 g) standard. System maintains required test load within +/- 5 mN (0.5 g) throughout test cycle.
Test Cycle Times Cycle times for pre-load, recovery, and test load are completely operator-adjustable.
Load Cell 500 g (temperature-compensated)
Mechanical Overload Protection Standard
Testing Temperature Range 0 to -40 °C (32 to -40 °F)
Temperature Measurement Platinum RTD
Power Requirements 115 VAC, 1 ph, 50/60 Hz, 2 A or 230 VAC, 1 ph, 50/60 Hz, 2 A
Air Pressure 60 psi inlet pressure (414 kPa) @ Class 3 Quality max particle of 5 μm
Test Weights Calibrated and traceable to NIST
Rating IP20 Enclosure rating
Sample Supports 3 mm (0.118 in) radius stainless steel spaced 101.6 mm (4.00 in) apart
LVDT Displacement Transducer 0.25 in (6.35 mm) calibrated range to provide 2 μm resolution throughout testing
and verification range.
Data Display Large on-screen display of load, displacement, and bath temperature provides ease of setup and operation. Real-time displacement, loading, and  temperature graphs are displayed during the test cycle and can be re-plotted and re-scaled as needed for easy viewing.
Tank Liquid Volume 1.5 gallons (5.5 liters)
Weight 150 lbs
Dimensions BBR: 24 in W x 26.5 in D x 23.5 in H (with load frame)
Chiller: 10.5 in W x 20 in D x 9.25 in H
