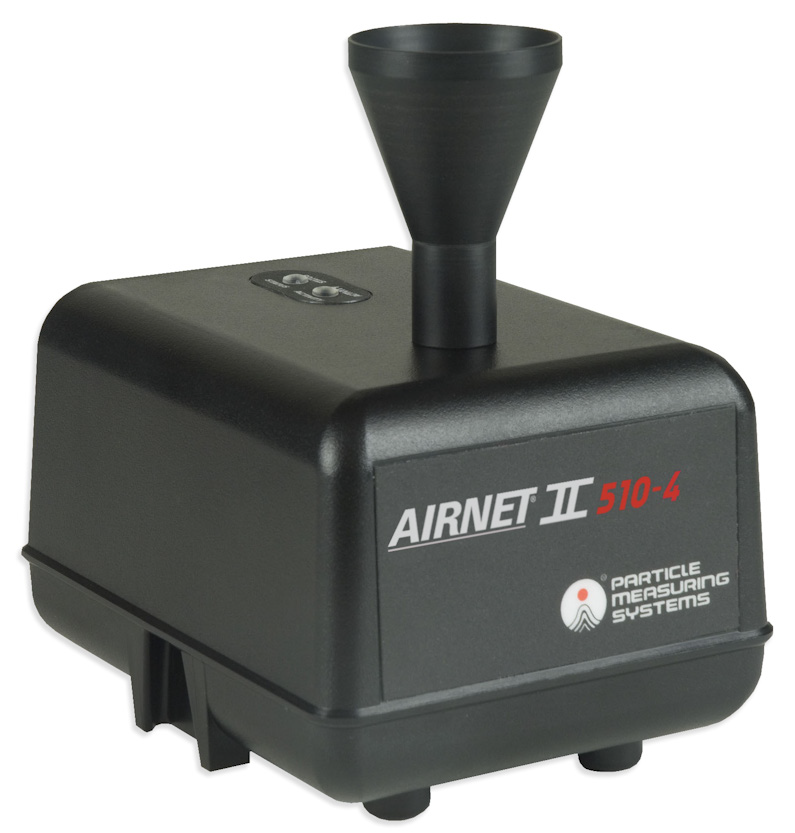

The Airnet II 4-Channel particle sensor simplifies cleanroom monitoring in a cost-effective manner. With its compact design, it delivers exceptional performance and has the capability to transmit data. It also complies with the ISO 21501-4 and ISO 14644-1:2015 standards.
The sensor is easy to install, offering various power options, including distributed power from an in-house system, local power sources, or Power over Ethernet (PoE).
It also supports various communication methods, including Ethernet for interfacing with Pharmaceutical Net, Facility Net, or FacilityPro® software, OPC communications, Modbus communications, or an optional 4-20 mA output.
The sensor ensures data integrity by continuing to collect data even during network disruptions, thanks to its data queue feature. Furthermore, it includes a Dynamic Flow Sensing system to guarantee consistent flow conditions and vacuum system functionality, alerting users to any 15% change in flow conditions.
Benefits
- A laser diode (LD) drastically reduces the need for maintenance and extends product lifecycle
- A low-cost solution for multipoint monitoring
- A small footprint and flexible mounting options make it easy to install in cleanrooms and mini-environments
- Allows for immediate reaction to particle contamination events
- Automatic laser shutdown reduces laser failures
- Data queue maintains data integrity when communication is lost
- Interfaces with Facility Net, Pharmaceutical Net and FacilityPro Software for comprehensive management of cleanroom conditions
- Optional 4-20 mA output for integration with existing systems to help you understand your environment
- Proven technology provides reliable and accurate data
Features
- 0.1 and 1.0 CFM flow rate
- 0.2 and 10.0 µm size range
- 4 channels
- Chemical-resistant polycarbonate (PC) enclosure
- Includes system validation documentation
- Interfaces with object linking and embedding (OLE) for process control (OPC) communications, Modbus communications and optional 4-20 mA output
- ISO14644-1:2015 Compliant
- Low sample point cost
- Small enough for use in remote locations
Applications
- Cleanroom monitoring
- Dedicated monitoring of critical locations
- Isolator monitoring
- Multi-location monitoring
- Statistical process control
- Trend analysis
Specifications
Source: Particle Measuring Systems
| |
201-4 |
301-4 |
310-4 |
501-4 |
510-4 |
| Size Range (μm) |
0.2, 0.3,
0.5, 1.0 |
0.3, 0.5,
1.0, 5.0 |
0.3, 0.5,
1.0, 5.0 |
0.5, 1.0,
5.0, 10.0 |
0.5, 1.0,
5.0, 10.0 |
| Flow Rate |
0.1 CFM
(2.8 LPM) |
0.1 CFM
(2.8 LPM) |
1.0 CFM
(28.3 LPM) |
0.1 CFM
(2.8 LPM) |
1.0 CFM
(28.3 LPM) |
| Counting Efficiency |
50% ± 20% for most sensitive channel. Meets ISO 21501-4
100% ± 10% at 1.5 to 2.0 times channel one size. Meets ISO 21501-4 |
| Zero Count |
≤ 70.7 counts/m3 |
≤ 70.7 counts/m3 |
≤ 7.07 counts/m3 |
≤ 70.7 counts/m3 |
≤ 7.07 counts/m3 |
| Maximum Concentration1 |
5,057,310 /ft3 |
4,862,798 /ft3 |
702,404 /ft3 |
7,437,220 /ft3 |
890,371 /ft3 |
| Laser Source |
Diode |
| Laser Classification |
Class 1 per EN60825 (Internally, a Class IIIB laser is used, per EN60825) |
| Exterior Surface |
Polycarbonate |
Dimensions
(H x W x L) |
3.8 x 3.6 x 5.3 in (9.6 x 8.9 x 13.5 cm) |
| Weight |
1.6 lb (0.73 kg) |
| Sample Probe or Tubing |
1/4” ID |
| Flow System |
External vacuum 1/4” connection
Automatic laser shutoff and alarm on 15% flow variation |
| Vacuum Source |
> 12 in Hg required |
| Power |
Power over Ethernet (PoE) via PoE router (48 VDC) or PoE power injector
Optional 24 VDC (0.5 A) power input |
| Communication Connectors |
Ethernet (Particle Measuring Systems proprietary protocol, OPC, Modbus TCP)
Optional 4-20 mA (5 output channels: 4 particle data, 1 instrument status)
RS-232 (configuration and diagnostic only) |
| Status Indicators |
Programmable status (two-color LED), Activity (one-color LED) |
| Calibration |
Calibration materials used are traceable to the National Institute for Standards and Technology (NIST)
and meet ISO 21501-4 requirements |
| Environment |
Temperature: 39 – 95 °F (4 – 35 °C)
Relative humidity: 5 – 95%, non-condensing |
| Complies With |
EU RoHS, ISO 21501-4 |
1Greater than 90% accuracy (less than 10% coincidence loss) at maximum recommended concentration.
