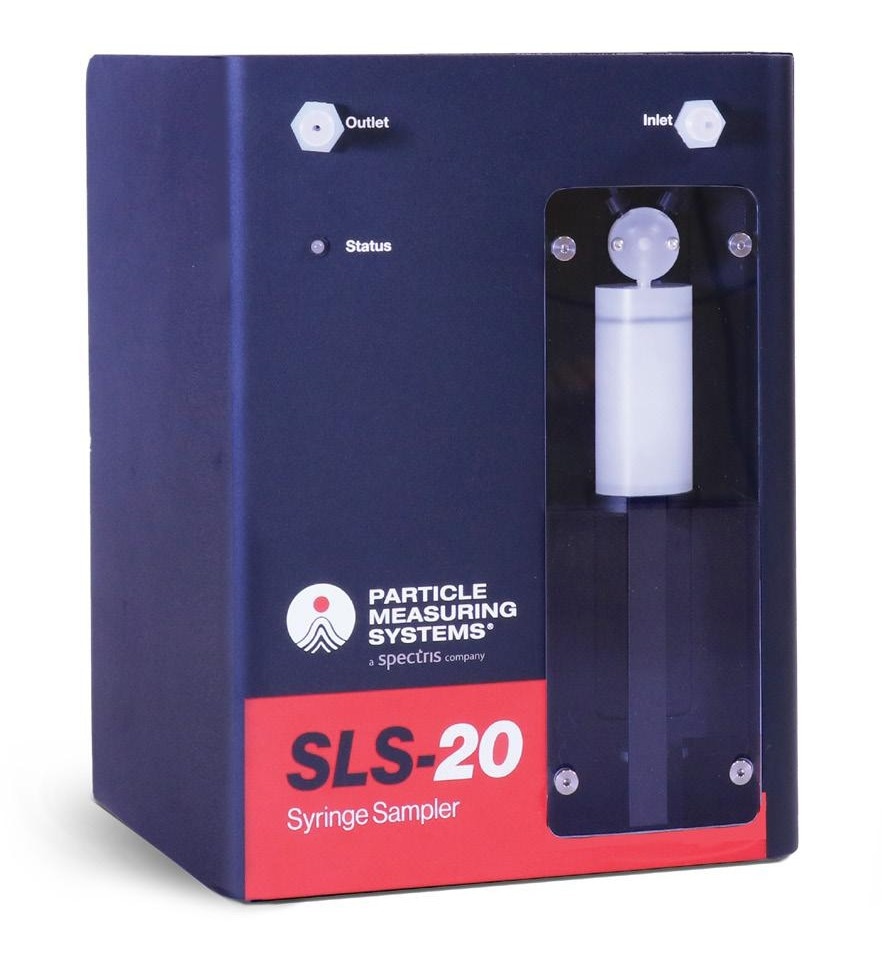

The SLS-20 Syringe Liquid Sampler allows Chem 20™ or Chem 20-HI particle counters to work in batch sampling applications. It is ideal for precise, small-volume sampling.

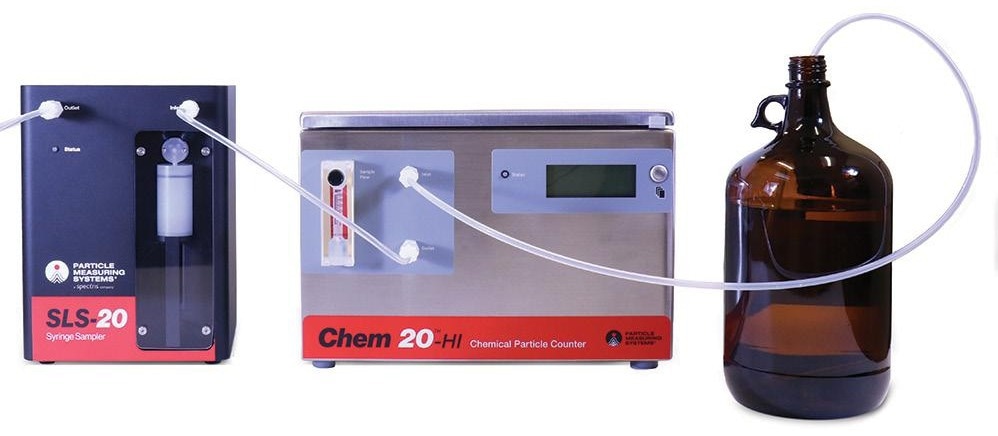

The system consists of an SLS-20 for corrosive or non-corrosive liquids. It is also complete with all essential connections for integration with a compatible Chem 20 or Chem 20-HI particle counter and includes optional software.
Benefits
- Menu-driven data collection
- Exceptionally precise measurements
- Works with both non-corrosive and corrosive liquids
- 20 nm sensitivity provides an unmatched level of process, chemical, and filter monitoring
- Fluoropolymer syringe standard for use with hydrogen fluoride (HF)
- Minimal chemical volume used
- Completely automated system
Features
- Software for data collection and trending
- Optional password security
- Data generation into pre-formatted report formats and spreadsheets using SamplerSight software
- Internal leak detection
- Repeatable recipes for consistent sampling parameters
Applications
- Extracting chemicals from the packaging of finished products
- Extracting samples from wet process tanks to monitor the process and filters
- Small volume chemical quality assurance
- Parts cleanliness testing
- Laboratory water sampling
- Industries: semiconductor, pharmaceutical, data storage, medical, aerospace, automotive
Specifications
Source: Particle Measuring Systems
| . |
. |
| Syringe size |
50 ml (standard), 25 ml (optional) |
| Sampling mode |
Vacuum, Batch |
| Wetted surface materials |
Kel-F®, PFA, PTFE, Kalrez® |
| Sample volume |
Adjustable with software interface |
| Sample temperature |
59 – 104 °F (15 – 40 °C) |
| Dimensions (l x w x h) |
10.0 x 9.0 x 12.3 in (25.4 x 22.9 x 31.2 cm), not including particle counter |
| Weight |
14 lb (6.4 kg), not including particle counter |
| Power |
100 – 240 V, 50 – 60 Hz |
| Environment |
Temperature: 50 – 86 °F (10 – 30 °C)
Humidity: Non-condensing |
Image Credit: Particle Measuring Systems
