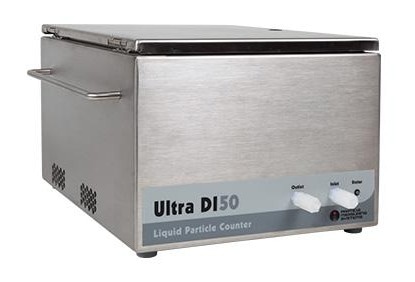

The Ultra DI® 50 Liquid Particle Counter is tailor-made for de-ionized (DI) water systems and is capable of detecting and sizing contaminants as small as 0.05 µm.
It offers benefits such as analysis of larger sample volumes and extremely low zero counts, which enhance sensitivity and provide more meaningful statistical information. Additionally, it accelerates the analysis process by reducing sample intervals.
Users can promptly address contamination issues with real-time particle measurement and swiftly transition between different sample points. Its combination of a low zero count, large sample volume, and high counting efficiency ensures exceptional performance.
Benefits
Rapid Analysis
- Achieve significant statistical data rapidly by leveraging the substantial sample volume of the Ultra DI 50.
- Expedite analysis by adopting shorter sample intervals.
- Optimize operator efficiency with swift clean-up procedures and the ability to swiftly transition between sample points.
Process Development
- Increased sample volumes and minimal zero counts enhance the detection of smaller excursions, yielding more pertinent statistical data.
- Swiftly address contamination through real-time particle measurement.
- Facility Net software offers highly advanced process control with:
- Sensor status
- Email notification
- Time plots
- Historical event log records
- Tabular and SPC charts
- Set tighter process control limits along with low sample-to-sample variation.
Easy to Use
- Employ users’ current network through Ethernet communication.
- Designed for compatibility with ozonated water.
- Features a stainless-steel housing and dual HEPA filtration, making it suitable for use in clean environments.
- Establish a direct connection to PLC and SCADA systems using the 4-20 mA interface.
Applications
- Measuring particle concentration in ultra-pure water (UPW) systems.
- Assessing filter efficiency.
- Examining trends at lower particle concentrations.
- Tracking and alerting for episodic events.
- Enhancing manufacturing process control.
- Maintaining ongoing system monitoring.
- Identifying bacterial growth in UPW systems.
Specifications
Source: Particle Measuring Systems
| . |
. |
| Size range |
0.05 – 0.20 μm |
| Channels |
4 |
| Channel sizes |
0.05, 0.10, 0.15, 0.20 μm |
| Flow rate (ml/min) |
1,000 ml/min ± 10% |
| Counting efficiency |
100% sample volume |
| Sample volume |
≥ 3.75 ml/min |
| Maximum concentration 1 |
10,000 counts/ml |
| Sample temperature 2 |
59 – 122 °F (15 – 50 °C) |
| Maximum pressure |
100 psi |
| Zero count |
≤ 50 counts/L |
| Exterior surface |
Stainless steel |
| Wetted surface materials |
Teflon®, Kel-F®, fused silica, sapphire, Viton®, 96% Alumina Ceramic, and Simriz® |
| Dimensions (d, w, h) |
17 x 17 x 10.5 in (43 x 43 x 27 cm) |
| Weight |
45 lb (20.4 kg) |
| Power |
100 – 240 VAC |
| Communications |
Ethernet, 4-20 mA (3 outputs: 2 particle channels, 1 instrument status)
RS-232 (set up and diagnostics only, no data) |
| Status indicator |
Laser, power, and activity: one (1) tri-color LED |
| Calibration |
Materials used are traceable to National Institute of Standards and Technology (NIST) and/or Japanese Industrial Standards (JIS) |
| Environment |
Temperature: 72 – 84 °F (22 – 29 °C) ± 1 °C /hour
Humidity, Non-Condensing |
1 Greater than 90% accuracy (less than 10% coincidence loss) at the maximum recommended concentration.
2 For temperatures greater than 50 °C, use of a chiller is recommended.
