The Models 150SL and 300SL from Tinius Olsen are built for tension, flexure, compression, and shear strength testing on materials and assemblies. The sturdy design adds quality materials and components to guarantee that the company’s reputation for ease of use, superior system performance, and longevity is maintained.
Features and Benefits
- Model 150SL - Ideal for tension, transverse, shear, compression, and other tests to a maximum force of 150 kN/30,000 lbf
- Model 300SL - Suitable for tension, compression, shear, transverse, and other tests to a maximum force of 300 kN/60,000 lbf
- Four-column sturdy design allows larger samples to be tested
- Various system control options are available, from a handheld wireless Bluetooth interface, or a tethered handheld interface operating with a virtual machine interface application on a connected PC
- Friction-free piston operation allows smooth, controlled operation and negligible downtime
Options and Accessories
- Crossheads can be closed/semi-open/or fully open for easier specimen loading and unloading 1
- External grips and fixtures can be easily mounted securely
- In-head pocket grips can be supplied to accommodate flat or round tensile specimens
- Complete range of precision extensometers and deflectometers are available using video, encoder, laser, strain gage and/or LVDT technologies
- Columns can be extended by up to 914 mm/36” to expand test area size1
Note: screw extensions require holes in the floor
- Furnaces and environmental chambers can be installed for tests at low or high temperatures
- Safety enclosures with interlocks can be installed to safeguard operators from violent specimen breaks
- Top crosshead can be made modifiable and columns can be notched to allow the modifiable top crosshead to be repositioned for more comfortable working heights1
- Tinius Olsen’s Horizon software can be connected to the tester by the operator
1 Supplied at the time of order
Specifications of Model 150SL
| FRAME SPECIFICATIONS |
| Tension compression load capability |
Yes |
| Frame capacity |
kN
kg
lbf |
150
15,000
30,000 |
| Proof tested |
To frame capacity |
| Floor or table mounting |
Floor mounting |
| Test zones |
Two |
| Number of columns |
Four |
| Column material |
Steel |
| Column finish |
Chrome |
| Column color |
Chrome |
| Base material |
Mild Steel |
| Base finish |
Pre-primed, top coat powder coat paint |
| Base color |
TO Cool Grey Web # E6 30 27 |
| Crosshead material |
Mild Steel solid |
| Crosshead finish |
Pre-primed, top powder coat paint |
| Crosshead color |
TO Green Web # 00 4C 45 |
| Base cover |
ABS recyclable |
| Base cover color |
Cal Black Web # 11 18 20 |
| Distance between screws |
mm
in |
317.5
12.5 |
| Maximum piston stroke travel |
mm
in |
152
6 |
| Maximum travel of adjustable crosshead |
mm
in |
648
25.5 |
| Stiffness |
kN/mm
klbf/in |
550
3,065 |
| Height |
mm
in |
1842
72.5 |
| Width |
mm
in |
737
29 |
| Depth |
mm
in |
483
19 |
| Weight |
kg
lb |
1180
2600 |
| Optional extension to crosshead screws |
305, 610, or 914 mm
12, 24 or 36 in |
| Optional extension to column heights |
305, 610, or 914 mm
12, 24 or 36 in |
| Adjustable top crosshead and adjustable columns |
Optional |
| Pit mountable |
No |
| Screw cover/protection |
Optional |
| Feet material |
Mild steel with provision for anchor bolts |
| Noise at full crosshead speed 2 m radius |
68 db |
| CONTROLLER SPECIFICATIONS |
| Max data processing rate |
168 MHz |
| Data acquisition rate at PC |
1000 Hz |
| Number of instrument device connections – external |
Four |
| Number of instrument device connections – internal |
Three |
| Bluetooth enabled |
v4.0 with A2DP, LE, EDR |
| External PC connection |
USB |
| User interface connectivity |
TO HMC, Proterm, Horizon |
| FORCE MEASUREMENT |
| Force measurement device |
Pressure transducer |
| Resolution |
One part in 8,388,608 |
| Accuracy |
+/- 0.2% of applied force across load range |
| Range |
0.2-100% |
| Calibration standard |
+/- 0.5% per ISO 7500-1 ASTM E4 |
| Internal sampling rate |
1000 Hz |
| EXTENSION MEASUREMENT |
| Resolution |
0.1 μm |
| Accuracy |
+/-10 μm |
| Range |
+/- 217 m |
| Calibration standard |
ISO 9513, ASTM E83 |
| Internal sampling rate |
2.73 kHz |
| POSITION CONTROL |
| Test speed |
mm/min
in/min |
0.001-76
0.00004-3 |
| Resolution |
μm
in |
0.1
0.000004 |
| Accuracy |
μm |
+/- 10 |
| Crosshead positioning speed |
mm/min
in/min |
500
20 |
| Resolution |
μm
in |
0.1
0.000004 |
| Accuracy |
μm |
+/- 10 |
| Home function |
Yes |
| POWER REQUIREMENTS |
| Supply voltage options |
208-500 V |
| Frequency |
50/60 Hz |
| ATMOSPHERIC REQUIREMENTS |
| Operating temperature |
10-40 °C |
| Operating humidity |
10-90% non-condensing |
| Storage temperature |
10-69 °C |
| Storage humidity |
10-90% non-condensing |
| CONSOLE DIMENSIONS |
| Width |
mm
in |
750
29.5 |
| Depth |
mm
in |
699
27.5 |
| Height |
mm
in |
865
34 |
| Oil reservoir volume |
liters
US gal |
66
15 |
Specifications of Model 300SL
| FRAME SPECIFICATIONS |
| Tension compression load capability |
Yes |
| Frame capacity |
kN
kg
lbf |
300
30,000
60,000 |
| Proof tested |
To frame capacity |
| Floor or table mounting |
Floor mounting |
| Test zones |
Two |
| Number of columns |
Four |
| Column material |
Steel |
| Column finish |
Chrome |
| Column color |
Chrome |
| Base material |
Mild Steel |
| Base finish |
Pre-primed, top coat powder coat paint |
| Base color |
TO Cool Grey Web # E6 30 27 |
| Crosshead material |
Mild Steel solid |
| Crosshead finish |
Pre-primed, top powder coat paint |
| Crosshead color |
TO Green Web # 00 4C 45 |
| Base cover |
ABS recyclable |
| Base cover color |
Cal Black Web # 11 18 20 |
| Distance between screws |
mm
in |
317.5
12.5 |
| Maximum piston stroke travel |
mm
in |
152
6 |
| Maximum travel of adjustable crosshead |
mm
in |
648
25.5 |
| Stiffness |
kN/mm
klbf/in |
550
3,065 |
| Height |
mm
in |
1842
72.5 |
| Width |
mm
in |
737
29 |
| Depth |
mm
in |
483
19 |
| Weight |
kg
lb |
1180
2600 |
| Optional extension to crosshead screws |
305, 610, or 914 mm
12, 24 or 36 in |
| Optional extension to column heights |
305, 610, or 914 mm
12, 24 or 36 in |
| Adjustable top crosshead and adjustable columns |
Optional |
| Pit mountable |
No |
| Screw cover/protection |
Optional |
| Feet material |
Mild steel with provision for anchor bolts |
| Noise at full crosshead speed 2 m radius |
68 db |
| CONTROLLER SPECIFICATIONS |
| Max data processing rate |
168 MHz |
| Data acquisition rate at PC |
1000 Hz |
| Number of instrument device connections – external |
Four |
| Number of instrument device connections – internal |
Three |
| Bluetooth enabled |
v4.0 with A2DP, LE, EDR |
| External PC connection |
USB |
| User interface connectivity |
TO HMC, Proterm, Horizon |
| FORCE MEASUREMENT |
| Force measurement device |
Pressure transducer |
| Resolution |
One part in 8,388,608 |
| Accuracy |
+/- 0.2% of applied force across load range |
| Range |
0.2-100% |
| Calibration standard |
+/- 0.5% per ISO 7500-1 ASTM E4 |
| Internal sampling rate |
1000 Hz |
| EXTENSION MEASUREMENT |
| Resolution |
0.1 μm |
| Accuracy |
+/-10 μm |
| Range |
+/- 217 m |
| Calibration standard |
ISO 9513, ASTM E83 |
| Internal sampling rate |
2.73 kHz |
| POSITION CONTROL |
| Test speed |
mm/min
in/min |
0.001-76
0.00004-3 |
| Resolution |
μm
in |
0.1
0.000004 |
| Accuracy |
μm |
+/- 10 |
| Crosshead positioning speed |
mm/min
in/min |
500
20 |
| Resolution |
μm
in |
0.1
0.000004 |
| Accuracy |
μm |
+/- 10 |
| Home function |
Yes |
| POWER REQUIREMENTS |
| Supply voltage options |
208-500 V |
| Frequency |
50/60 Hz |
| ATMOSPHERIC REQUIREMENTS |
| Operating temperature |
10-40 °C |
| Operating humidity |
10-90% non-condensing |
| Storage temperature |
10-69 °C |
| Storage humidity |
10-90% non-condensing |
| CONSOLE DIMENSIONS |
| Width |
mm
in |
750
29.5 |
| Depth |
mm
in |
699
27.5 |
| Height |
mm
in |
865
34 |
| Oil reservoir volume |
liters
US gal |
66
15 |

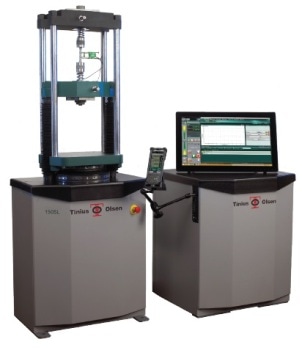

Hydraulic Universal Testing Machine – Model 150 SL

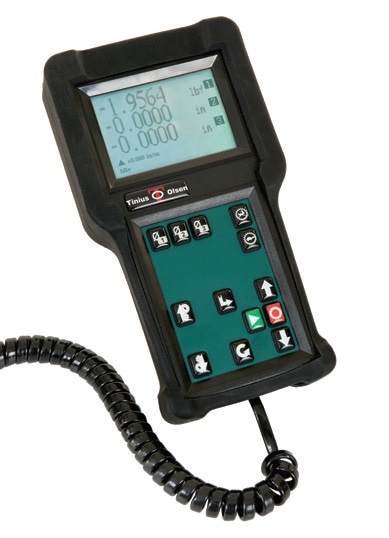

Familiar handheld interface that is tethered to the machine. With its larger, tactile, sealed keypad, this interface is ideal for operators who use gloves to load and unload specimens and prefer a push button keypad. It requires virtual machine control software running on a connected PC to operate the basic machine functions and report basic numerical test data.

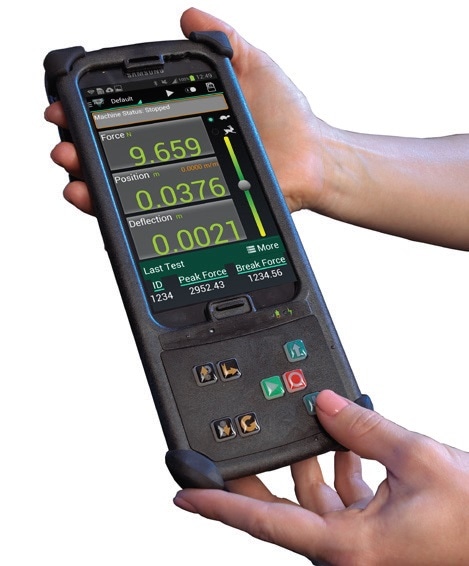

Wireless handheld interface that is connected to the machine by a Bluetooth link. The interface features an Android-based operating platform and can be used to control the machine by itself or in conjunction with Tinius Olsen’s Horizon software
MODEL 300SL Hydraulic Materials Testing Machine
