HMC 3.0 by Tinius Olsen is a wireless handheld interface linked to a machine through Bluetooth. This interface can be employed on both the SL and ST series of testers. It comes with an Android-based operating platform and can regulate the machine by itself or in conjunction with the Horizon software of Tinius Olsen.
Features and Benefits
- The Bluetooth-enabled handheld interface enables the utmost flexibility upon pairing with a testing machine
- Usual battery life is around 20+ hours of uninterrupted usage
- 10.1 in display with 1920 × 1200 Resolution
- Three-channel display of test machine channels
- A maximum 10-m safe operating radius
- If the range is surpassed for testing, the machine will function in “safe” mode.
- Selectable multi-unit display of channel values
- Controls machine movement at the time of test set-up and starts a test directly from the application
- Testing procedures can be set up with the use of up to five simple steps when it is running without the Horizon software. Move, hold, and cycle routines are the steps included
- Prompt display of channel values and machine status
- Test results can be sent directly to a Wi-Fi-enabled printer or connected to a PC via USB-A/USB-C connection
- 8 MP front camera and 13 MP AF back can be utilized to take snaps of tests, specimens, and configurations as witness to every test
- To record the test procedure, the interface has Full HD 1080p video at 30 fps capability
- Stylus is included
Specifications
- Colour: Yes
- Operating system: Android 12
- Compatible with TO ST and SL series frames and most other VMC-controlled machines
- CPU: Qualcomm SM7325
- Processor: 2.4 Ghz/1.8 Ghz, Octa-core
- Memory (RAM): 4 GB
- Memory (Internal/External): 64 GB 9/MicroSD (up to 1 TB)
- Display/Display type: Screen size 10.1 in/TFT
- Brightness: 550 nits
- Display resolution: WXGA (1920 × 1200)
- Camera (back/front): 13 MP Autofocus with LED flash/8 MP
- Video playing resolution: FHD (1920 × 1200) @ 360 fps
- Video recording resolution: FHD (1920 × 1200) @ 360 fps
- USB port: Type C USB 3.2/ Fast Charging
- Battery capacity: 7600 mAh, user-replaceable battery
- Battery life: Up to 20+ hours
- WiFi: Wi-Fi 6 Supported
- Stylus: Integrated S pen (water and dust resistant, IP68 rated)
- Charging time: 160 minutes
- Dimensions: 285.75 × 190.5 × 31.75 mm
- Weight: 674 gm

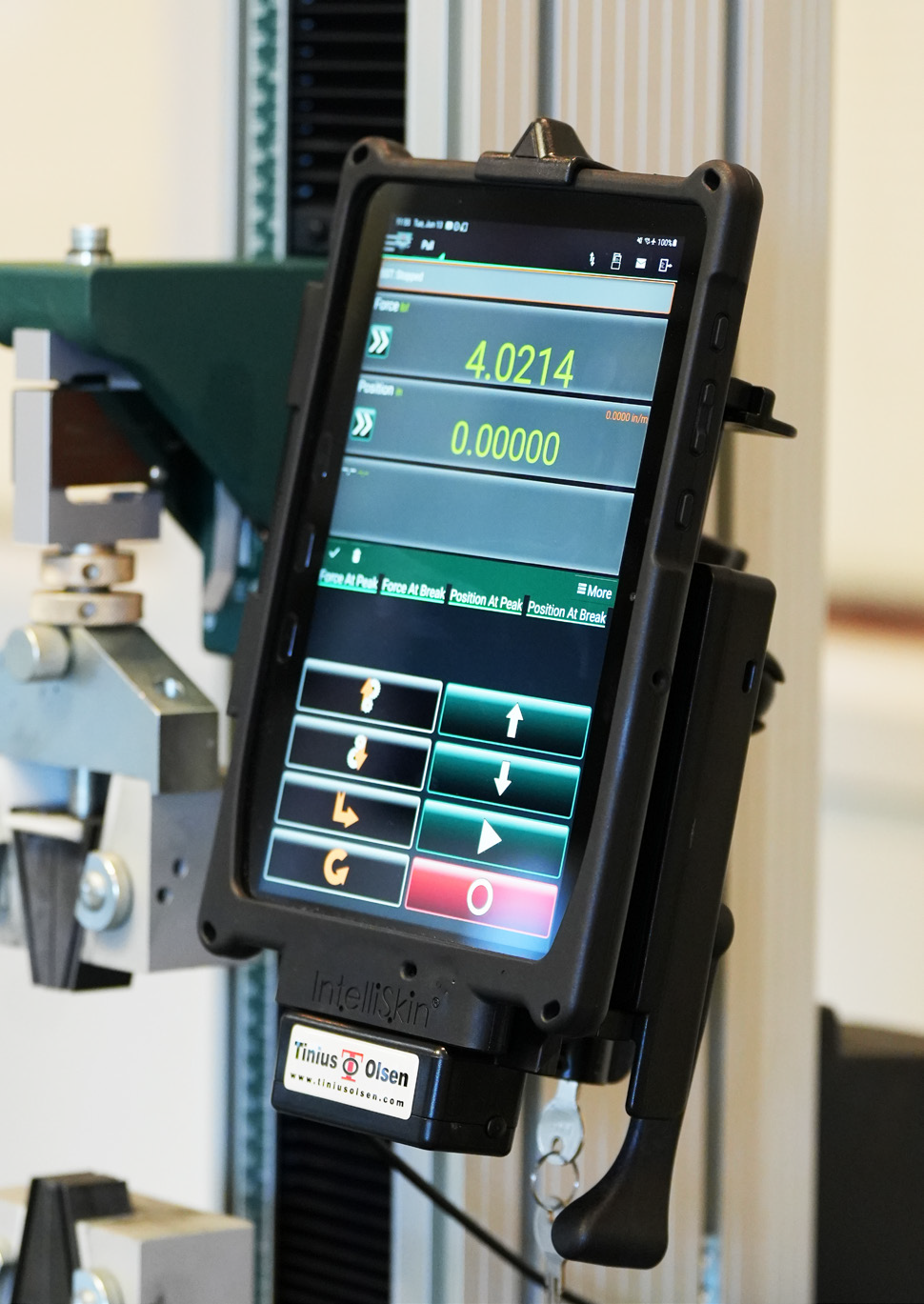

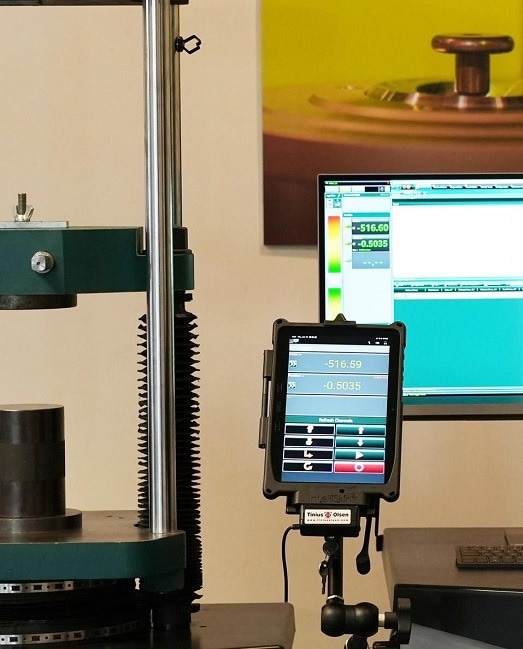

The HMC 3.0 is mounted with a 300SL. Image Credit: Tinius Olsen

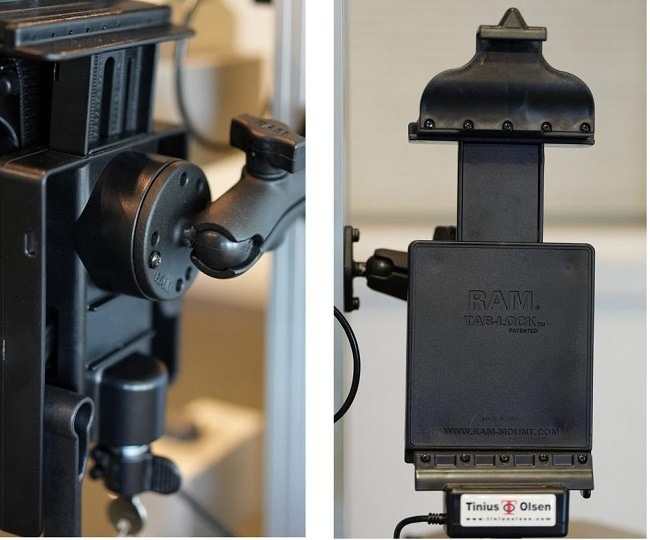

The locking dock feature (above) allows you to secure the dock to the frame, preventing accidental contact and removal of the HMC 3.0 when mounted. Mounted in the dock is the recommended position for the HMC 3.0. Image Credit: Tinius Olsen
