Tinius Olsen introduces Vector, a groundbreaking extensometer technology that consolidates multiple contacting and non-contacting sensors into a single, industry-specific instrument. By integrating adaptive AI with optical hardware, Vector simplifies test processes, reduces throughput times, and automates strain measurement. This innovation enhances measurement accuracy, ensures data consistency, and improves operator safety.
Features and Benefits
- 0.5 μm resolution (1.9685039e-5 inch), ISO 9513 Class 0.5 and ASTM E83 Class B1 capable.
- Non contacting with digital placement of specimen gauge marks supporting an automated process.
- Output data available in analog formats.
- Various marking options are available, but they are material dependent. Rings, speckles.

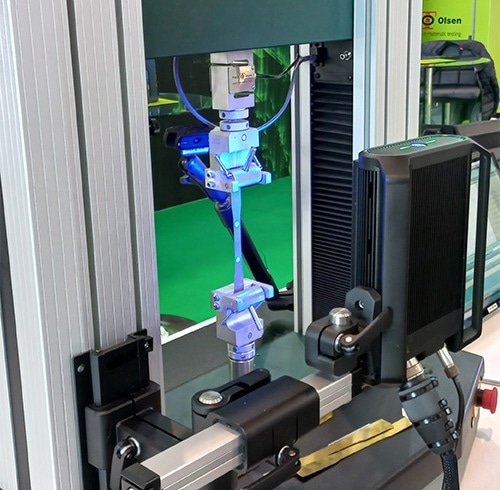

![VectorExtensometer B80: Multiple Variable Gauge Length Measurements](https://d12oja0ew7x0i8.cloudfront.net/images/equipments/EquipmentImage_9124_17228435371249802.jpg)
Image Credit: Tinius Olsen
Specifications
- Strain Outputs: Dual analog output: ±10 V, short-protected, selectable units and range; includes 3 m (10 ft) shielded output cable.
- Extensometer Accuracy Class: Meets or surpasses ASTM E83 Class B-1 and ISO 9513 Class 0,5 standards.
- Resolution: <0.5 μm quasistatic, cyclic; RMS resolution typical under usual conditions. The data rate, filter settings, and marking all affect the resolution.
- Real-Time Data Rate: 150 Hz, platform dependent. Complete system, from acquisition to output.
- Field of View: Fixed 80 H × 30 W × 30 D [mm] cuboid.

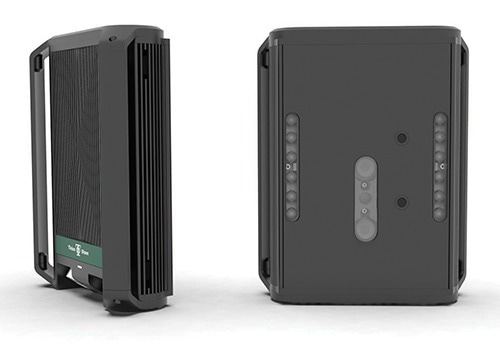

![VectorExtensometer B80: Multiple Variable Gauge Length Measurements](https://d12oja0ew7x0i8.cloudfront.net/images/equipments/EquipmentImage_9124_17228435492869721.jpg)
Image Credit: Tinius Olsen
