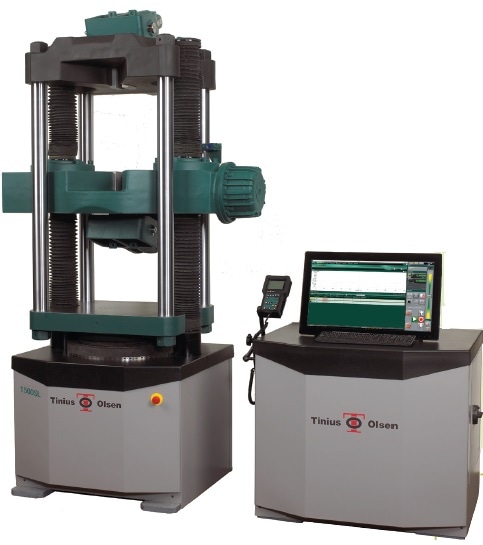

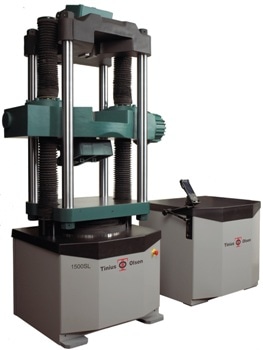

The Models 1500SL and 2000SL from Tinius Olsen are designed for compression, flexure, tension, and shear strength testing on assemblies and materials. The sturdy design includes quality materials and components to ensure that the company’s reputation for excellent system performance, ease of use, and longevity is upheld.
Features and Benefits
- Model 1500SL - Ideal for tension, compression, shear, transverse, and other tests to a maximum force of 1500 kN/300,000 lbf
- Model 2000SL - Ideal for compression, tension, transverse, shear and other tests to a maximum force of 2000 kN/400,000 lbf
- Four-column sturdy design allows larger samples to be tested

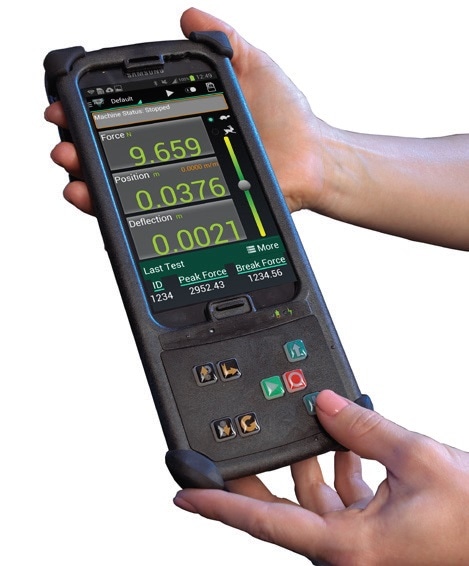

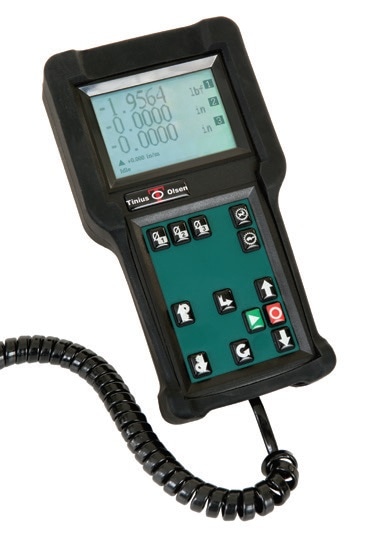

- Many system control options are available, from a handheld wireless Bluetooth interface, or a tethered handheld interface operating with a virtual machine interface application on a connected PC
- Friction-free piston operation allows smooth, controlled operation and negligible downtime
Options and Accessories for Model 1500SL and Model 2000SL
- Crossheads can be closed/semi-open/or fully open for easier specimen loading and unloading 1
- External grips and fixtures can be easily mounted securely
- In-head pocket grips can be supplied to accommodate flat or round tensile specimens
- Complete range of precision extensometers and deflectometers are available using video, encoder, laser, strain gage and/or LVDT technologies
- Columns can be extended by up to 914 mm/36” to expand test area size1
Note: screw extensions require holes in the floor

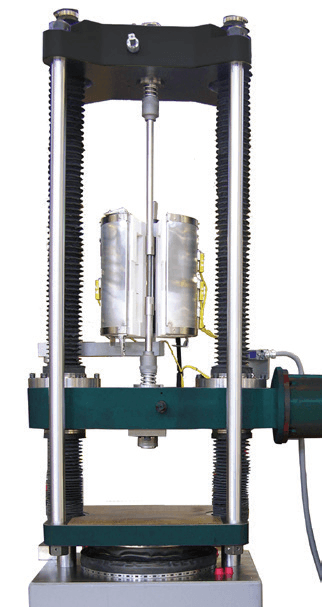

- Furnaces and environmental chambers can be installed for tests at low or high temperatures
- Safety enclosures with interlocks can be installed to safeguard operators from violent specimen breaks
- Top crosshead can be made modifiable and columns can be notched to allow the modifiable top crosshead to be repositioned for more comfortable working heights1
- Tinius Olsen’s Horizon software can be connected to the tester by the operator
1 Supplied at the time of order
Model 3000SL

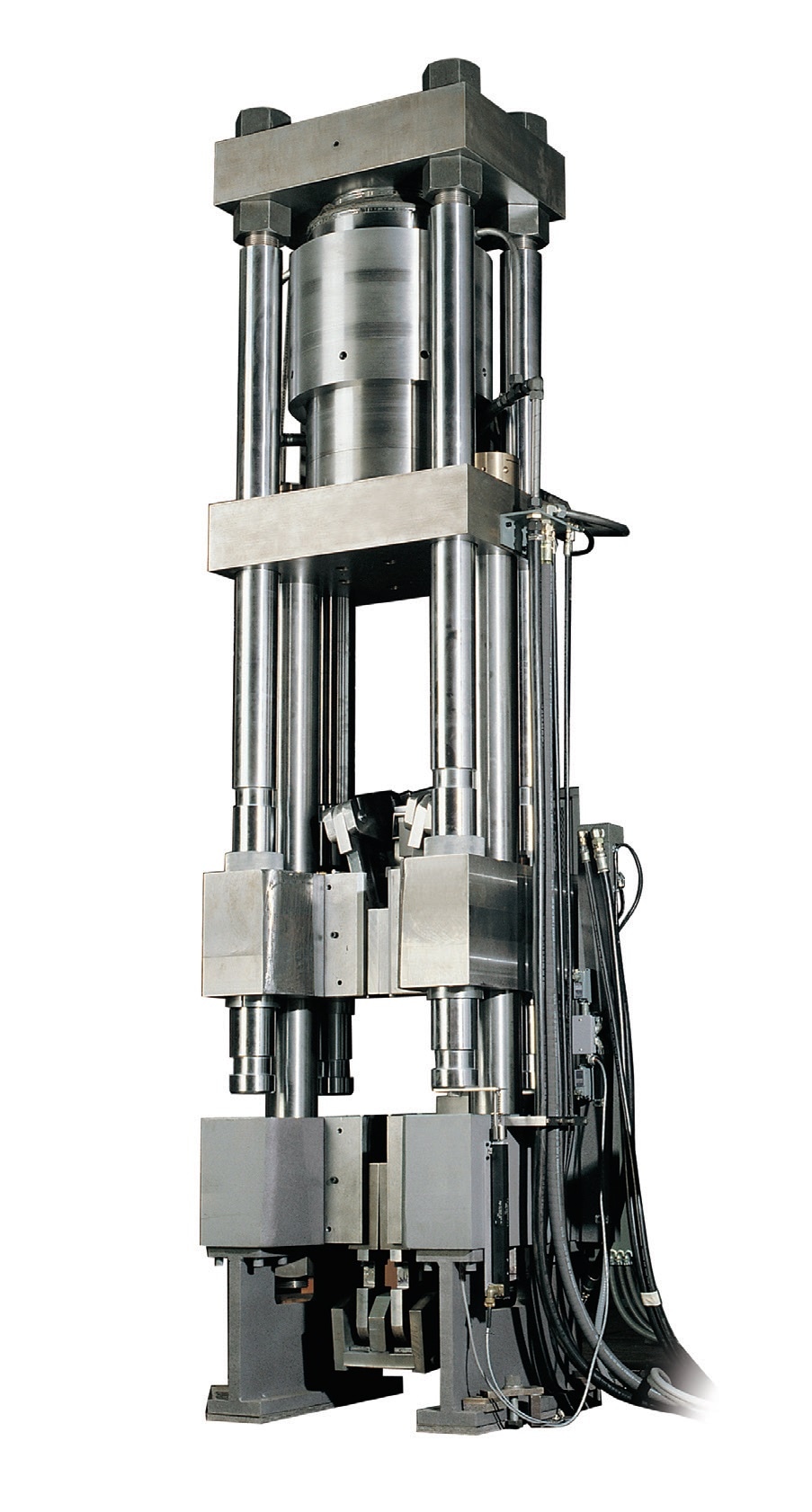

The Model 3000SL is built for compression, tension, flexure, and shear strength testing on assemblies, materials, and components. The sturdy design, quality materials, and precision engineering ensure a testing capability, even at maximum load, all the time.
Features and Benefits of Model 3000SL
- Suitable for transverse, tension, compression, shear, and other tests to a maximum force of 3000 kN / 600,000 lbf
- Two types of frame hydraulic piston configuration; standard lower in base or upper above testing area
- Four column rugged design underpins the frame stiffness and power
- The unique friction-free piston operation gives exacting control of movement be it under constant speed, stress or strain
- Optional user interfaces are available in support of test productivity; tethered handheld, wireless and/or virtual via the test, control and reporting software
Options of Model 3000SL
- In-head pocket grips to accommodate round or flat tensile specimens
- External grips and fixtures

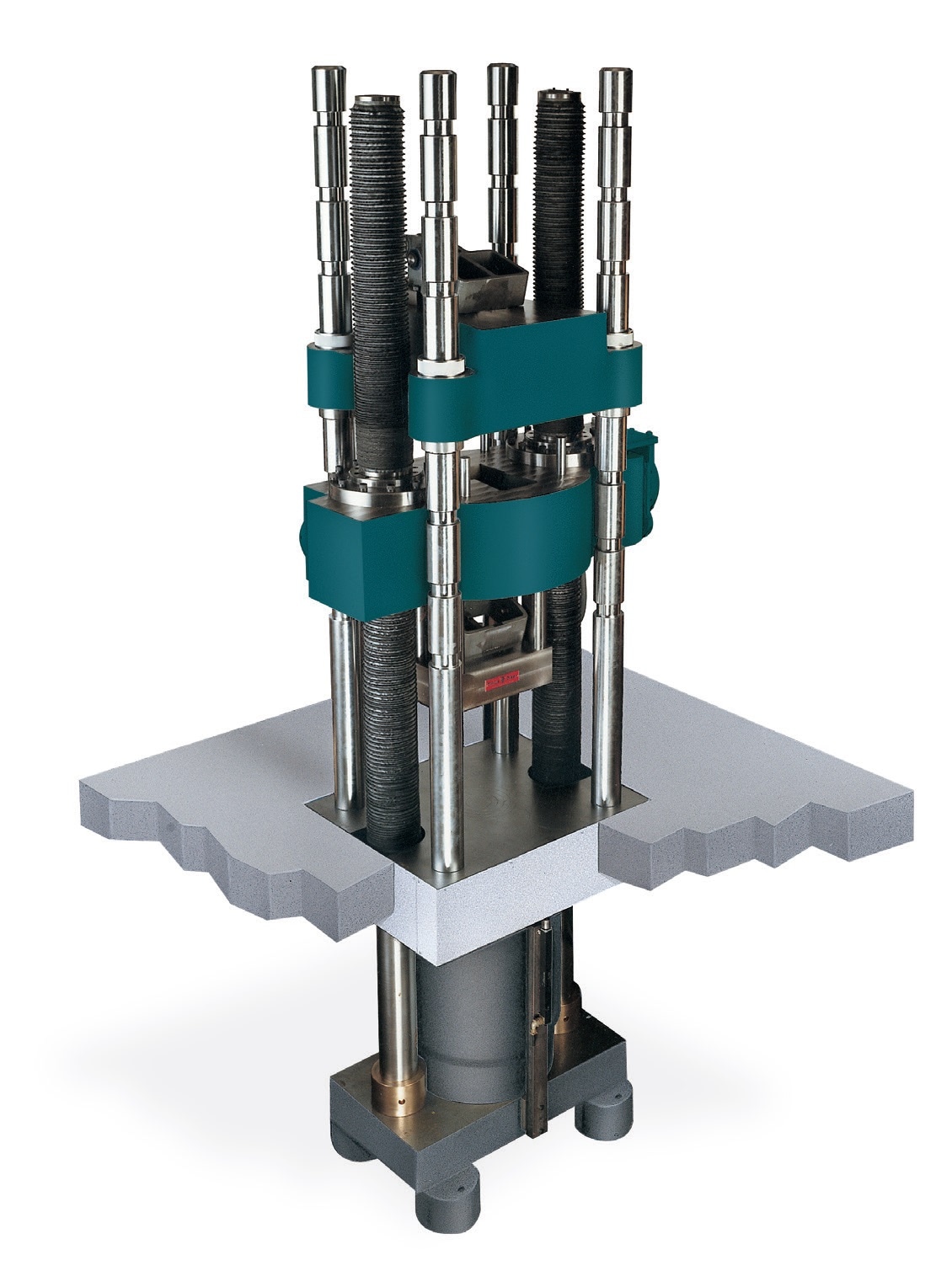

- Base unit above or below ground (pit mounted)
- Standard or extended height crosshead movement for positioning
- Standard or extended height columns
- Standard or L shape workstation configuration
Accessories of Model 3000SL
- Complete range of precision extensometers and deflectometers using laser, encoder, video, strain gauge and/or LVDT technologies
- Furnaces and environmental chambers for tests at low or high temperatures
- Safety enclosures with interlocks to safeguard operators from violent specimen breaks
- Tinius Olsen’s Horizon control, analysis and reporting software on a single PC station and/or a PC station in network deployment
Specifications of Model 1500SL
| FRAME SPECIFICATIONS |
| Tension compression load capability |
Yes |
| Frame capacity |
kN
kg
lbf |
1500
150,000
300,000 |
| Proof tested |
To frame capacity |
| Floor or table mounting |
Floor mounting |
| Test zones |
Two |
| Number of columns |
Four |
| Column material |
Steel |
| Column finish |
Chrome |
| Column color |
Chrome |
| Base material |
Mild Steel |
| Base finish |
Pre-primed, top coat powder coat paint |
| Base color |
TO Cool Grey Web # E6 30 27 |
| Crosshead material |
Mild Steel solid |
| Crosshead finish |
Pre-primed, top powder coat paint |
| Crosshead color |
TO Green Web # 00 4C 45 |
| Base cover |
ABS recyclable |
| Base cover color |
Cal Black Web # 11 18 20 |
| Distance between screws |
mm
in |
565
22.25 |
| Maximum piston stroke travel |
mm
in |
229
9 |
| Maximum travel of adjustable crosshead |
mm
in |
959
38 |
| Stiffness |
kN/mm
klbf/in |
1700
9500 |
| Height |
mm
in |
2445
96 |
| Width |
mm
in |
940
37 |
| Depth |
mm
in |
851
33.5 |
| Weight |
kg
lb |
5444
12,000 |
| Optional extension to crosshead screws |
305, 610, or 914 mm
12, 24 or 36 in |
| Optional extension to column heights |
305, 610, or 914 mm
12, 24 or 36 in |
| Adjustable top crosshead and adjustable columns |
Optional |
| Pit mountable |
Optional |
| Screw cover/protection |
Optional |
| Feet material |
Mild steel with provision for anchor bolts |
| Noise at full crosshead speed 2 m radius |
68 db |
| CONTROLLER SPECIFICATIONS |
| Max data processing rate |
168 MHz |
| Data acquisition rate at PC |
1000 Hz |
| Number of instrument device connections – external |
Four |
| Number of instrument device connections – internal |
Three |
| Bluetooth enabled |
v4.0 with A2DP, LE, EDR |
| External PC connection |
USB |
| User interface connectivity |
TO HMC, Proterm, Horizon |
| FORCE MEASUREMENT |
| Force measurement device |
Pressure transducer |
| Resolution |
One part in 8,388,608 |
| Accuracy |
+/- 0.2% of applied force across load range |
| Range |
0.2-100% |
| Calibration standard |
+/- 0.5% per ISO 7500-1 ASTM E4 |
| Internal sampling rate |
1000 Hz |
| EXTENSION MEASUREMENT |
| Resolution |
0.1 μm |
| Accuracy |
+/-10 μm |
| Range |
+/- 217 m |
| Calibration standard |
ISO 9513, ASTM E83 |
| Internal sampling rate |
2.73 kHz |
| POSITION CONTROL |
| Test speed |
mm/min
in/min |
0.001-76
0.00004-3 |
| Resolution |
μm
in |
0.1
0.000004 |
| Accuracy |
μm |
+/- 10 |
| Crosshead positioning speed |
mm/min
in/min |
305
12 |
| Resolution |
μm
in |
0.1
0.000004 |
| Accuracy |
μm |
+/- 10 |
| Home function |
Yes |
| POWER REQUIREMENTS |
| Supply voltage options |
208-500 V |
| Frequency |
50/60 Hz |
| ATMOSPHERIC REQUIREMENTS |
| Operating temperature |
10-40 °C |
| Operating humidity |
10-90% non-condensing |
| Storage temperature |
10-69 °C |
| Storage humidity |
10-90% non-condensing |
| CONSOLE DIMENSIONS |
| Width |
mm
in |
1010
39.75 |
| Depth |
mm
in |
831
32.66 |
| Height |
mm
in |
865
34 |
| Oil reservoir volume |
liters
US gal |
113
30 |
Specifications of Model 2000SL
| FRAME SPECIFICATIONS |
| Tension compression load capability |
Yes |
| Frame capacity |
kN
kg
lbf |
2000
200,000
400,000 |
| Proof tested |
To frame capacity |
| Floor or table mounting |
Floor mounting |
| Test zones |
Two |
| Number of columns |
Four |
| Column material |
Steel |
| Column finish |
Chrome |
| Column color |
Chrome |
| Base material |
Mild Steel |
| Base finish |
Pre-primed, top coat powder coat paint |
| Base color |
TO Cool Grey Web # E6 30 27 |
| Crosshead material |
Mild Steel solid |
| Crosshead finish |
Pre-primed, top powder coat paint |
| Crosshead color |
TO Green Web # 00 4C 45 |
| Base cover |
ABS recyclable |
| Base cover color |
Cal Black Web # 11 18 20 |
| Distance between screws |
mm
in |
565
22.25 |
| Maximum piston stroke travel |
mm
in |
229
9 |
| Maximum travel of adjustable crosshead |
mm
in |
959
38 |
| Stiffness |
kN/mm
klbf/in |
1700
9500 |
| Height |
mm
in |
2445
96 |
| Width |
mm
in |
940
37 |
| Depth |
mm
in |
851
33.5 |
| Weight |
kg
lb |
5444
12,000 |
| Optional extension to crosshead screws |
305, 610, or 914 mm
12, 24 or 36 in |
| Optional extension to column heights |
305, 610, or 914 mm
12, 24 or 36 in |
| Adjustable top crosshead and adjustable columns |
Optional |
| Pit mountable |
Optional |
| Screw cover/protection |
Optional |
| Feet material |
Mild steel with provision for anchor bolts |
| Noise at full crosshead speed 2 m radius |
68 db |
| CONTROLLER SPECIFICATIONS |
| Max data processing rate |
168 MHz |
| Data acquisition rate at PC |
1000 Hz |
| Number of instrument device connections – external |
Four |
| Number of instrument device connections – internal |
Three |
| Bluetooth enabled |
v4.0 with A2DP, LE, EDR |
| External PC connection |
USB |
| User interface connectivity |
TO HMC, Proterm, Horizon |
| FORCE MEASUREMENT |
| Force measurement device |
Pressure transducer |
| Resolution |
One part in 8,388,608 |
| Accuracy |
+/- 0.2% of applied force across load range |
| Range |
0.2-100% |
| Calibration standard |
+/- 0.5% per ISO 7500-1 ASTM E4 |
| Internal sampling rate |
1000 Hz |
| EXTENSION MEASUREMENT |
| Resolution |
0.1 μm |
| Accuracy |
+/-10 μm |
| Range |
+/- 217 m |
| Calibration standard |
ISO 9513, ASTM E83 |
| Internal sampling rate |
2.73 kHz |
| POSITION CONTROL |
| Test speed |
mm/min
in/min |
0.001-76
0.00004-3 |
| Resolution |
μm
in |
0.1
0.000004 |
| Accuracy |
μm |
+/- 10 |
| Crosshead positioning speed |
mm/min
in/min |
305
12 |
| Resolution |
μm
in |
0.1
0.000004 |
| Accuracy |
μm |
+/- 10 |
| Home function |
Yes |
| POWER REQUIREMENTS |
| Supply voltage options |
208-500 V |
| Frequency |
50/60 Hz |
| ATMOSPHERIC REQUIREMENTS |
| Operating temperature |
10-40 °C |
| Operating humidity |
10-90% non-condensing |
| Storage temperature |
10-69 °C |
| Storage humidity |
10-90% non-condensing |
| CONSOLE DIMENSIONS |
| Width |
mm
in |
1010
39.75 |
| Depth |
mm
in |
831
32.66 |
| Height |
mm
in |
865
34 |
| Oil reservoir volume |
liters
US gal |
113
30 |
Specifications of Model 3000SL
| FRAME SPECIFICATIONS |
| Tension compression load capability |
Yes |
| Frame capacity |
kN
kg
lbf |
3000
300,000
600,000 |
| Proof tested |
To frame capacity |
| Floor or table mounting |
Floor mounting |
| Test zones |
Two |
| Number of columns |
Four |
| Column material |
Mild Steel |
| Column finish |
Chrome |
| Column color |
Chrome |
| Base material |
Mild Steel |
| Base finish |
Pre-primed, top coat powder coat paint |
| Base color |
TO Cool Grey Web # E6 30 27 |
| Crosshead material |
Mild Steel solid |
| Crosshead finish |
Pre-primed, top powder coat paint |
| Crosshead color |
TO Green Web # 00 4C 45 |
| Base cover |
ABS recyclable |
| Base cover color |
Cal Black Web # 11 18 20 |
| Distance between screws |
mm
in |
660
26 |
| Maximum piston stroke travel |
mm
in |
229
9 |
| Maximum travel of adjustable crosshead |
mm
in |
Frame configuration dependent |
| Stiffness |
kN/mm
klbf/in |
1700
9500 |
| Height |
mm
in |
2692
106 |
| Width |
mm
in |
1092
43 |
| Depth |
mm
in |
863
34 |
| Weight |
kg
lb |
6500
14,330 |
| Optional extension to crosshead screws |
Optional, based on frame configuration |
| Optional extension to column heights |
Optional, based on frame configuration |
| Adjustable top crosshead and adjustable columns |
No |
| Pit mountable |
Optional, based on frame configuration |
| Screw cover/protection |
Standard |
| Feet material |
Mild steel with provision for anchor bolts |
| Noise at full crosshead speed 2 m radius |
68 db |
| CONTROLLER SPECIFICATIONS |
| Max data processing rate |
168 MHz |
| Data acquisition rate at PC |
1000 Hz |
| Number of instrument device connections – external |
Four |
| Number of instrument device connections – internal |
Three |
| Bluetooth enabled |
v4.0 with A2DP, LE, EDR |
| External PC connection |
USB |
| User interface connectivity |
TO HMC, Proterm, Horizon |
| FORCE MEASUREMENT |
| Force measurement device |
Pressure transducer |
| Resolution |
One part in 8,388,608 |
| Accuracy |
+/- 0.2% of applied force across load range |
| Range |
0.2-100% |
| Calibration standard |
+/- 0.5% per ISO 7500-1 ASTM E4 |
| Internal sampling rate |
1000 Hz |
| EXTENSION MEASUREMENT |
| Resolution |
0.1 μm |
| Accuracy |
+/-10 μm |
| Range |
+/- 217 m |
| Calibration standard |
ISO 9513, ASTM E83 |
| Internal sampling rate |
2.73 kHz |
| POSITION CONTROL |
| Test speed |
mm/min
in/min |
0.001-76
0.00004-3 |
| Resolution |
μm
in |
0.1
0.000004 |
| Accuracy |
μm |
+/- 10 |
| Crosshead positioning speed |
mm/min
in/min |
305
12 |
| Resolution |
μm
in |
0.1
0.000004 |
| Accuracy |
μm |
+/- 10 |
| Home function |
Yes |
| POWER REQUIREMENTS |
| Supply voltage options |
208-500 V |
| Frequency |
50/60 Hz |
| ATMOSPHERIC REQUIREMENTS |
| Operating temperature |
10-40 °C |
| Operating humidity |
10-90% non-condensing |
| Storage temperature |
10-69 °C |
| Storage humidity |
10-90% non-condensing |
| CONSOLE DIMENSIONS |
| Width |
mm
in |
915
36 |
| Depth |
mm
in |
788
31 |
| Height |
mm
in |
1016
40 |
| Oil reservoir volume |
liters
US gal |
113
30 |
Tinius Olsen's Hydraulic Universal Testing Machine – Model 1500SL, 2000SL, and 3000SL
Familiar handheld interface that is tethered to the machine. With its larger, tactile, sealed keypad, this interface is ideal for operators who use gloves to load and unload specimens and prefer a push button keypad. It requires virtual machine control software running on a connected PC to operate the basic machine functions and report basic numerical test data.
Wireless handheld interface that is connected to the machine by a Bluetooth link. The interface features an Android-based operating platform and can be used to control the machine by itself or in conjunction with Tinius Olsen’s Horizon software
3000SL with lower hydrauliic piston configuration and pit mounted.
3000SL with upper hydrauliic piston configuration.
Options and Accessories for Model 1500SL and Model 2000SL
