Evident has introduced the SZ51 and SZ61 microscopes that provide images with excellent depth of field, detail, true-to-life color, and clarity. These images also come with integrated ESD protection.
The reliable, high-performance optics of the microscopes are integral for generating precise, consistent results.
Compact Design Compatible with High Optical Performance
Greenough Optical System
The SZ51 and SZ61 microscopes have 5:1 and 6.7:1 zoom ratios (zoom range 0.8x to 4x and 0.67x to 4.5x), in that order. They are reasonably priced and still provide a maximum resolving power in this price range. The microscopes are available with either 60 or 45 inclination angles for observation.
Using the Greenough optical design, all zoom bodies integrate the newest distortion- and aberration-free optics that set a new benchmark in optical quality and, at the same time, maintain excellent operability.
The V-shape optical path guarantees a slim zoom body—which is perfect for stand-alone use or for incorporating in other equipment.
Greenough Optical System Ray Diagram. Image Credit: Evident Corporation - Industrial Microscopy
Three-Dimensional Viewing
The optimum inward angle of the microscopes provides the right combination of depth of focus and high level flatness for three-dimensional (3D) viewing. Even a specimen that has considerable depth can be brought into focus fully, that is, from top to bottom for more rapid inspection.
Observation Images with High-Color Fidelity
Thanks to excellent optical coatings, users can obtain true color images with fine detail.
ESD Measures for Protecting Devices from Static Electricity
The central unit and key accessories can rapidly remove static electricity with the use of antistatic coatings and materials. This prevents any electrostatic damage caused to a specimen being observed.
Microscope Bodies According to Users’ Application
The SZ51 and SZ61 microscopes are available as 60-degree or 45-degree oriented models that are well-suited for use with OEM integration or bench stands. The SZ61TR is a video/digital camera ready with an integrated c-mount. This c-mount is optically matched to the zoom body, ensuring parfocal, vivid images upon attaching a camera.

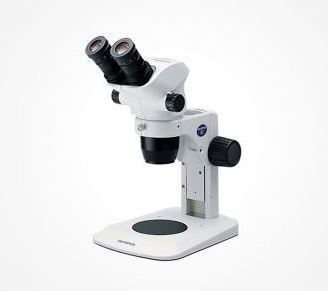

Standard Type (SZ61/SZ51). Image Credit: Evident Corporation - Industrial Microscopy
Trinocular Tube Type (SZ61TR). Image Credit: Evident Corporation - Industrial Microscopy
Built-in Type (SZ61/SZ51-60). Image Credit: Evident Corporation - Industrial Microscopy
Variety of Illumination Units
LED Illumination—Combination Reflected and Transmitted Light Stand
The eco-friendly and ultra-thin LED stands enable easy, energy-efficient usage.
LED Illumination Stand. Image Credit: Evident Corporation - Industrial Microscopy
“Off the Bench” Illuminator
The exclusively developed fiber-optic light source can be directly mounted onto the stand for a clutter-free workspace. The system is available with single interlock, double interlock, or ring light guides and offers bright illumination that lasts for a long time.
Dual Interlock Light Guide Illuminator. Image Credit: Evident Corporation - Industrial Microscopy
Coaxial Reflected Light Illumination System
The SZ61 microscope integrates a 1/4λ plate and a polarizer, allowing users to view their specimens more easily, the specimens are otherwise hard to analyze under oblique reflected light illumination.
Coaxial Reflected Light Illumination System. Image Credit: Evident Corporation - Industrial Microscopy
White LED Illuminator System
A durable ringlight illuminator with excellent brightness and minimal thermal effect is perfect for uniform lighting.
White LED Illuminator. *The model of the LED illuminator may vary with area. Image Credit: Evident Corporation - Industrial Microscopy
Universal Stands
Various Universal Stands are Available
Curved, ultra-slim stands equipped with contoured base plates offer easy access to specimens, while decreasing the stress and strain caused to users’ arms and hands.
Combination of SZ2-ST. Image Credit: Evident Corporation - Industrial Microscopy
For assembly or inspection of bigger samples, Evident provides a wide range of boom stands that are ESD safe and modifiable. The company also supplies large platform stands, which, if needed, can accommodate auxillary posts of 400 and 600 mm.
- SZ2-STU2: The length and angle of the arm can be freely modified.
- SZ2-STU3: The stand is attached to the side of a desk for inspection and assembly lines.
Combination of SZ2-STU2. Image Credit: Evident Corporation - Industrial Microscopy
Combination of SZ2-STU3. Image Credit: Evident Corporation - Industrial Microscopy
Recording and Storage of Digital Images
The complete range of digital cameras from Evident can be easily adapted to the SZ61TR and are available as PC-controllable or stand-alone systems. Software modules range from simple capture to report generation, measurement, and database archiving.
