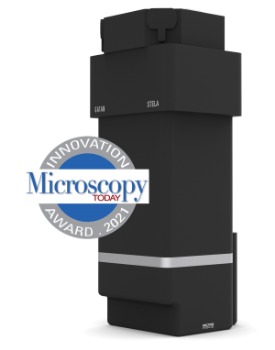

The Stela Hybrid-Pixel Camera is the fully integrated hybrid-pixel electron detector from the Gatan Microscopy Suite software programmed for the latest electron diffraction studies.
Features:
Introducing Stela™ — the only fully integrated hybrid-pixel electron detector with the Gatan Microscopy Suite® (GMS) software for the latest electron diffraction studies. It makes use of the DECTRIS hybrid-pixel electron technology that applies electron counting to reduce noise and utilizes on-the-fly digitization for the utmost dynamic range.
One Platform, Many Solutions
- Market-leading GMS software: Easily combines diffraction imaging and 4D STEM along with hybrid-pixel electron detection
- Rapidly transforms subtle observations into bright insights: Examine and evaluate results in minutes to improve the experiment and gather the best possible 4D STEM dataset
Diffraction Uncompromised
- Outstanding dynamic range for 4D STEM: Captures intense and weak reflections to allow the latest diffraction studies
- Obtains a 4D cube at >16,000 pixels/s:
- Decreases specimen drift and damage
- Covers huge sample areas in less time
- Enhanced for imaging at low kV: Perfect for materials that need diffraction studies at <80 kV
Depiction 4D STEM diffraction data cube collected by using Stela camera and STEMx system
4D STEM diffraction data cube. A 4D STEM diffraction data cube was collected using the Stela camera and STEMx system. Specimen: Au nanoparticles. Scan area: 176 × 218 pixels, Diffraction image size: 256 × 256 pixels. Dwell time: 5 ms. Color map showing grain orientations classified based on the angular position of the maximum diffraction peak per probe position using a DigitalMicrograph script. Image Credit: Gatan Inc.
3D visualization of the reciprocal space reconstructed from MicroED by using the Stela camera
Reciprocal space reconstructed from continuous diffraction tomography data
Reciprocal space reconstructed from continuous diffraction tomography data. 3D visualization of the reciprocal space reconstructed from continuous diffraction tomography data (micro-ED) collected using the Stela camera in in-situ recording mode. Specimen: Tylenol crystal, diffraction image size: 512 × 512 pixels, exposure per frame: 5 ms, tilt range: ±70°, total acquisition time: 3 s. 3D reconstruction. Video Credit: Dr. dos Reis, Northwestern University.
Utilization of low voltage electron diffraction at high speed to solve practical materials problems
Utilization of low voltage electron diffraction at high speed to solve practical materials problems
Utilization of low voltage electron diffraction at high speed to solve practical materials problems. This webinar shows examples of low-voltage, high-speed electron diffraction experiments using the Gatan Stela, a detector with a high-dynamic range, based on DECTRIS' fast hybrid-pixel technology, to study subtle structural changes. Video Credit: Gatan Inc.
A live demonstration of Stela Hybrid Pixel Electron Detector for 4D STEM Diffraction
Live Virtual Workshop: Stela Hybrid Pixel Electron Detector for 4D STEM Diffraction
Live Virtual Workshop: Stela Hybrid Pixel Electron Detector for 4D STEM Diffraction. This comprehensive workshop features a presentation, a live microscope demonstration (including 4D STEM data acquisition and processing), and an open Q&A session. Video Credit: Gatan Inc.
