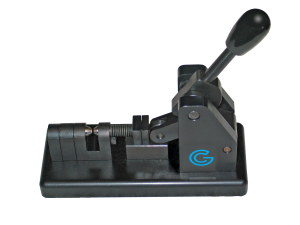

Disc Punch for Cutting Transmission Electron Microscope (TEM) Discs

Need more information?

Let us help you with your inquiries, brochures and pricing requirements

Gatan, Inc. logo.

Cutting transmission electron microscopy (TEM) discs from metals, alloys, and any ductile materials with a Disc Punch is the preferred approach.

Features:

  • ELIMINATES PUNCHED AREA/DISC: The ability to view and remove the punched area/disc simplifies collecting and enables multiple punching in a single action

  • SUPPORTS PISTONS: Cutting and support pistons are perfectly aligned to ensure a crisp cut edge and simple removal of the punched disc

  • PROVIDE ACCURACY: The rigorous and long-term usage of the strong metal base assures accuracy


  • USAGE OF PISTON RIM DESIGN: Overall compression and cutting forces are prevented from extending into the specimen’s central area by a unique piston-rim design
