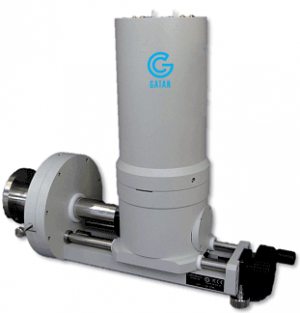

The ChromaCL2TM iBSED detector enables live color cathodoluminescence imaging for scanning electron microscope (SEM).
Features:
The ChromaCL2TM iBSED detector is a color cathodoluminescence imaging system that is designed for use in SEMs. Color cathodoluminescence (CL) imaging can expose geochemical procedures in many petrographic and earth science applications.
- Show macro- and micro-texture in sedimentary rocks, such as sediment source, compaction degree, diagenetic history, distinctions of authigenic and detrital minerals, cementation history, and authenticity
- Capture topographic, composition, and color CL images all at once with a single electron beam pass
- Easy to use
- Color cathodoluminescence images help define geochemical variations
- High-efficiency detection enables the quickest time-to-data, images with the highest spatial resolution, and decreases the possibility of data misinterpretation due to e-beam damage
- Carbonate imaging kit to resolve phosphorescence from certain carbonate minerals in scanned CL images
- With the field stitching software module, users can effectively have an infinite field of view
Episode 1: Explained introduction to cathodoluminescence
Cathodoluminescence Explained. Episode 1: An Introduction
Cathodoluminescence Explained. Episode 1: An Introduction. This webinar serves as an introduction to the CL technique and key application challenges addressed by CL highlighting some of the latest research from the world of nanophotonics, micro-LED device development, and microanalysis. Video Credit: Gatan Inc.
Episode 3: Analyzing modes for geoscience applications
Cathodoluminescence Explained. Episode 3: Analysis Modes for Geoscience Applications
Cathodoluminescence Explained. Episode 3: Analysis Modes for Geoscience Applications. In this webinar, we will review the different hardware and analysis modes available in CL detectors, discussing the benefits and drawbacks of each when analyzing geoscience specimens. Video Credit: Gatan Inc.
Episode 4: Improving spatial, spectral, and angular resolutions
Cathodoluminescence Explained. Episode 4: Improving spatial, spectral, and angular resolutions
Cathodoluminescence Explained, Episode 4: Improving spatial, spectral, and angular resolutions. This episode will focus on the practicalities of producing the sharpest CL maps, spectra, and angle-resolved emission patterns using a scanning electron microscope (SEM)-based CL systems. By the end of the webinar, attendees will understand why certain SEM. Video Credit: Gatan Inc.
Episode 5: Analyzing CL data
Cathodoluminescence Explained. Episode 5: Cathodoluminescence Data Analysis
Cathodoluminescence Explained. Episode 5: CL Data Analysis. This webinar focuses on the importance of CL data analysis, which may include spatial, spectral, and angular information, or any combination thereof. The importance of data analysis of such CL data can be nearly as important as data acquisition and can reveal many interesting characteristics of a specimen including the influence of constituent concentration and distribution, defect density, plasmonic or photonic modes, and more. During this webinar, analysis of data drawn from various specimens is performed, their results discussed, and the benefits of such analysis demonstrated. Video Credit: Gatan Inc.
