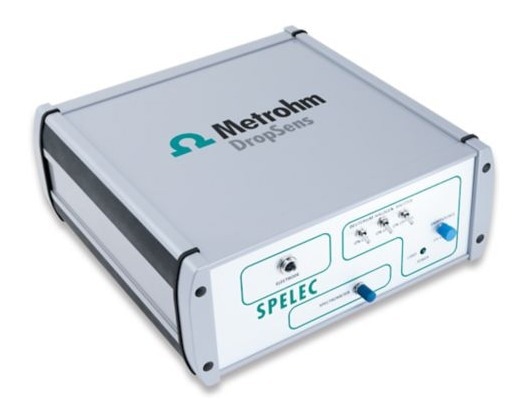

SPELEC is a tool for spectroelectrochemical measurements. It comprises a spectrometer (UV-VIS wavelength range: 200-900 nm), a bipotentiostat/galvanostat, and a lightsource in one box.
It also comes with specialized spectroelectrochemical software that enables the synchronization of optical and electrochemical studies.
Tech Specs
Source: Metrohm USA Inc.
| . |
. |
| Operating modes |
Bipotentiostat; Potentiostat; Galvanostat |
| PC interface |
USB |
| Power |
12 V DC |
| Potential range in volt |
±4 V |
| Maximum current in Ampère |
±40 mA |
| Number of current ranges |
8 |
| Number of current ranges remarks |
±1 nA to ±10 mA |
| Number of potential ranges (galvanostat) |
2 |
| Number of potential ranges remarks (galvanostat) |
±100 mV to ±1 V |
| Multichannel instrument |
NO |
| Maximum number of channels |
1 |
| Maximum number of WE sharing AUX and REF |
2 |
| Potential accuracy |
±0.2% |
| Current accuracy |
≤0.5% of current range at 100 nA to 10 mA |
| Potential resolution |
1 mV |
| Current resolution |
0.1% of current output range |
| Measured potential resolution |
0.012% of potential range |
| Measured current resolution |
0.025% of current range |
| Spectrometer (SPM) Detector |
Linear silicon CCD array |
| SPM Pixels |
2048 |
| SPM Pixel size |
14 µm x 200 µm |
| SPM Pixel well depth |
62,500 electrons |
| SPM Wavelength range |
200-900 nm |
| SPM Optical resolution |
0.3+10.0 nm FWHM |
| SPM Signal-to-noise ratio |
250:1 (at full signal) |
| SPM A/D resolution |
16 bit |
| SPM Dark noise |
50 RMS counts |
| SPM Dynamic range |
8.5 x 10 rised to 7 (system) ; 1300:1 for a single acquisition |
| SPM Integration time |
1 ms to 65 seconds |
| SPM Stray light |
≤ 0.05% at 600 nm ; < 0.10% at 435 nm |
| Light Source (LS) wavelength range |
215-400 nm (deuterium) ; 360-2500 nm (tungsten halogen) |
| LS Stability |
1.0% peak-to-peak (over 4 hours) after 30-minute warm-up |
| LS Time to stable output |
10 minutes (deuterium) ; 1 minute (tungsten halogen) |
| LS Ignition delay |
<2.0 seconds (delay for cold start-up may be longer) |
| LS Bulb life |
>1,000 hours @ 240 nm (time); <50% @ 240 nm (decrease of intensity) ; Continuous operation (testing conditions) |
| LS Fiber optic connector |
SMA 905 |
| Dimensions |
24 x 11 x 25 |
| Weight of the instrument in kg |
1.95 |
