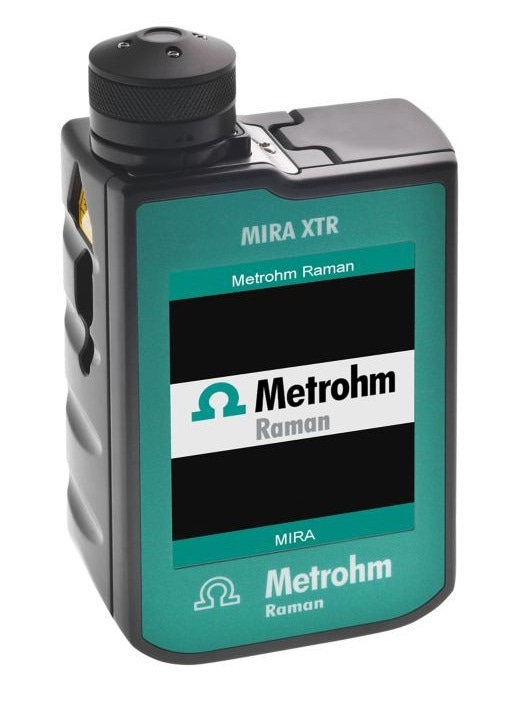

A substitute for high-power 1064 nm systems is MIRA XTR, which extracts Raman data from a sample fluorescence using XTR algorithms and a more sensitive 785 nm laser light, all powered by sophisticated computational processing.
Orbital Raster Scanning (ORS) is another feature of MIRA XTR that improves sample coverage and boosts the accuracy of the findings.
The fundamental parts required to run the MIRA XTR are included in the Basic package, which is a starter kit. The Intelligent Universal Attachment, the Illicit Materials library, and the Calibration Standard are included in the Basic package. Class 3B activity.
Tech Specs
Source: Metrohm USA Inc.
| . |
. |
| Laser Wavelength (nm) |
785 |
| Laser output power (mW) |
<100 |
| Spectral Range (cm⁻¹) |
400-2300 |
| Resolution (cm⁻¹) (FWHM) |
8-10 |
| Touchscreen Display |
3.7" resistive |
| Weight (grams) |
705 |
| Length (mm) |
128 |
| Width (mm) |
88 |
| Height (mm) |
45 |
| Battery life (h) |
≥ 4 h (with recommended batteries) |
