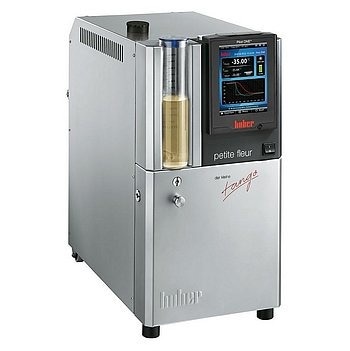

The Petite Fleur models are the smallest dynamic temperature control systems in the Unistat® range. They are designed for highly accurate temperature control of small research reactors. As all Unistat® models, the Petite Fleur models feature unique thermodynamic qualities that allow the fastest and most accurate temperature regulation. All versions are incredibly space-efficient, simple to use, and adaptable. Environmentally friendly natural refrigerants are already standard on all models.
The Petite Fleur models reach operating temperatures of -40 °C to +200 °C and offer a refrigeration capacity of 480 W (with full pump capacity acc. to DIN 12876). With a capacity of 25 l/min, the circulation pump provides for optimum heat transmission. Delicate glass reactors are protected from damage with the soft start-up, and changes in the viscosity within the fluid circuit are compensated for.
A TFT color display, a programmer, calendar/clock capabilities, user menus, a graphic display, a ramp function, calibration, and many other features are included in the Pilot ONE "Professional" controller, which may be taken off as a remote control.
Image Credit: Peter Huber Kältemaschinenbau SE
Functions Overview
- Extremely precise and reproducible tempering outcomes
- 13-language menu navigation and a 5.7" color touchscreen are features of the Pilot ONE controller
- 2 x USB (Host, Device), Ethernet and RS232 interfaces
- Standard with E-grade "Professional"
- Short heating and cooling times
- Highly precise temperature control
- Highly effective working techniques reduce operating expenses and working time
- Wide temperature ranges without fluid changes
- Efficient circulation pump, adjustable
- Proven capabilities for process engineering and industry
Controller

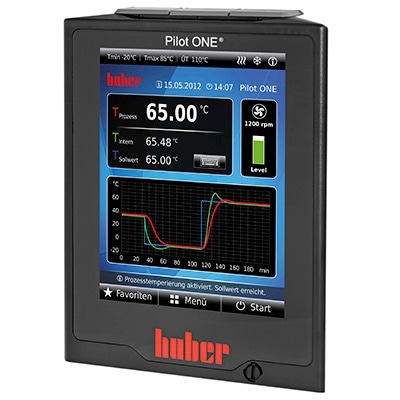

The new multi-touch controller Pilot ONE provides a stunning 5.7" touchscreen with visual capabilities and easy menu navigation. The favorites menu, one-click operation, and technical glossary make it easy and quick to access important settings and information. Integrated USB and Ethernet interfaces make connections to a PC or network, such as for data recording and remote control, possible.
Image Credit: Peter Huber Kältemaschinenbau SE
General and Temperature Control
Source: Peter Huber Kältemaschinenbau SE
| . |
. |
| Temperature range |
-40-200 °C |
| Temperature stability |
±0.01 |
| Display resolution |
0.01 K |
| Alarm message |
optic, acoustic, relay |
| Controller |
Pilot ONE |
| Safety class |
III / FL |
| Protection class |
IP20 |
| Dimensions (W x D x H) |
260 x 450 x 504 mm |
| Weight, net |
45 kg |
Heating / Cooling Capacity
Source: Peter Huber Kältemaschinenbau SE
| . |
. |
| Heating capacity |
1.6 - 2 kW |
| Cooling capacity |
| 200 |
150 |
100 |
50 |
20 |
0 |
-20 |
-30 |
-40 |
°C |
| 0.48 |
0.48 |
0.48 |
0.48 |
0.48 |
0.45 |
0.27 |
0.16 |
0.04 |
kW |
|
| Refrigeration machine |
air- or water-cooled, natural refrigerant |
| 1st stage refrigerant |
R-290 (A3, H220) |
| Refrigerant quantity 1st stage |
0.08 kg |
Circulation Pump
Source: Peter Huber Kältemaschinenbau SE
| . |
. |
| Delivery capacity pressure pump max. |
25 l/min; 0.9 bar |
| Pump connection |
M16x1 AG male |
| Max. permissible viscosity |
50 mm²/s |
| Pump speed adjustable |
Yes |
| Pump characteristics |
Pressure pump, variable speed |
Connections
Source: Peter Huber Kältemaschinenbau SE
| . |
. |
| External sensor connection |
Pt100 |
| Control input |
ECS ONE |
| Control output (potential-free contact) |
POKO ONE |
| Digital interface |
Ethernet, USB (Host u. Device), RS232 |
Operating Data
Source: Peter Huber Kältemaschinenbau SE
| . |
. |
| Permissible ambient temperature |
5-40 °C |
| Sound pressure level |
58 dB (A) |
| Filling volume min. |
1.5 l |
| Expansion volume |
2 l |
| Power supply |
220-240 V 1~/2~ 50/60 Hz |
| Current consumption max. |
11.5 |
| Fuse |
16 A |
