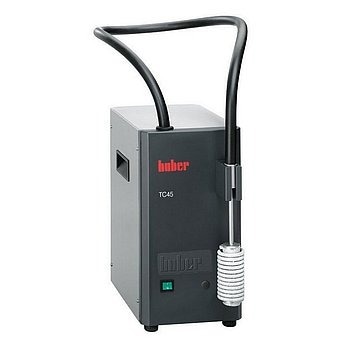

The TC series immersion coolers are a flexible solution for various cooling tasks. The units are simple and ubiquitous for quick cooling of fluids. Counter-cooling in heating thermostats and substituting dry ice are typical applications. Immersion coolers are also a more environmentally responsible option for cooling in many applications. The TC immersion coolers are available unregulated for cooling activities that require continuous cooling or with temperature control and a Pt100 sensor.
Regulated variants with the suffix "E" feature an LED display, setpoint input, and an accuracy of ±0.5 K. All models include a spiral or flexible stainless steel immersion cooling probe, allowing liquids in practically any container to be cooled. The small housings are made of high-quality stainless steel, include carrying handles, and take up very little room.
Image Credit: Peter Huber Kältemaschinenbau SE
Functions Overview
- Universal solution for a variety of cooling tasks
- Compact and space-saving design
- Quick cooling of liquids
- Durable housing with carrying handles
- Suitable for counter-cooling or as a dry ice alternative
- High-quality immersion probe constructed of stainless steel
General and Temperature Control
Source: Peter Huber Kältemaschinenbau SE
| . |
. |
| Temperature range |
-45-100 °C |
| Controller |
ON-OFF control |
| Safety class |
I / NFL |
| Dimensions (W x D x H) |
190 x 295 x 360 mm |
| Weight, net |
16 kg |
Heating / Cooling Capacity
Source: Peter Huber Kältemaschinenbau SE
| . |
. |
| Cooling capacity |
| 0 |
-20 |
-30 |
-40 |
°C |
| 0.24 |
0.18 |
0.1 |
0.05 |
kW |
|
| Refrigeration machine |
air-cooled, natural refrigerant |
| 1st stage refrigerant |
R-290 (A3, H220) |
| Refrigerant quantity 1st stage |
0.041 kg |
Circulation Pump
Source: Peter Huber Kältemaschinenbau SE
| . |
. |
| Pump speed adjustable |
No |
| Pump characteristics |
No pump |
Operating Data
Source: Peter Huber Kältemaschinenbau SE
| . |
. |
| Permissible ambient temperature |
5-40 °C |
| Power supply |
208-240 V 1~/2~ 50/60 Hz |
| Current consumption max. |
1.4 A |
