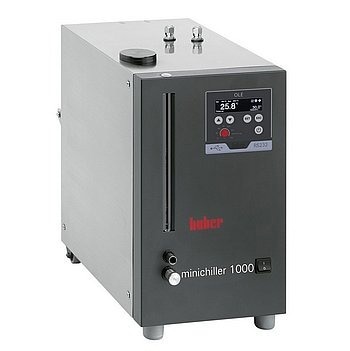

Huber's Minichillers provide a cost-effective, environmentally friendly cooling option for various laboratory applications. According to an estimate of water and wastewater expenditures, a Minichiller can save up to 48,000 liters of water per workweek.
The Minichillers are available in air- and water-cooled versions, as well as models with integrated heating. The variety of options enables users to select the model that best suits their requirements. All models are equipped with the OLÉ controller as standard, which is easy to operate and well equipped with an OLED display, RS232 and USB. On request, the Minichillers are also available with the Pilot ONE touchscreen controller for even more functionality.
The units only require a small amount of space on the laboratory bench and allow working temperatures from -20 °C to +80 °C. Consequently, Minichillers are the ideal solution for cooling reactor blocks, vapour barriers, vacuum pumps, rotary evaporators and heat exchangers. Due to the low purchase price, the return on investment in a Minichiller is amortised within a short period of time.
Image Credit: Peter Huber Kältemaschinenbau SE
Functions Overview
- Environmentally friendly, cost-effective cooling system
- Excellent effectiveness
- Accurate regulation of temperature
- Easy to use with menu navigation
- Sturdy stainless build
- Dependable ongoing operation with alert features
- Filling and emptying is simple.
- An illuminated indicator of the filling level
- A large, bright OLED display
- RS232 and USB interfaces

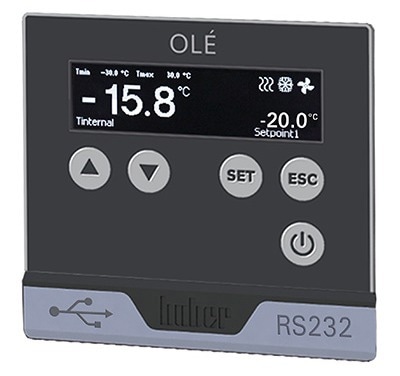

Controller
The new OLÉ controller combines cutting-edge technology with user-friendly functionality. Circulating chillers with OLÉ controllers are ideal for ordinary work in research and industry, and they dazzle with their basic functionality.
Optional: Pt100 sensor connection #10519 for process temperature display (not control) (available solely from the factory at an additional cost).
Image Credit: Peter Huber Kältemaschinenbau SE
General and Temperature Control
Source: Peter Huber Kältemaschinenbau SE
| . |
. |
| Temperature range |
-20-40 °C |
| Temperature stability |
±0.5 |
| Temperature display |
OLED Display |
| Display resolution |
0.1 K |
| Alarm message |
optic, acoustic |
| Controller |
OLÉ |
| Safety class |
I / NFL |
| Protection class |
IP20 |
| Dimensions (W x D x H) |
280 x 511 x 454 mm |
| Weight, net |
43 kg |
Heating / Cooling Capacity
Source: Peter Huber Kältemaschinenbau SE
| . |
. |
| Cooling capacity |
|
| Refrigeration machine |
air- or water-cooled, natural refrigerant |
| Refrigerant 1st stage |
R-290 (A3, H220) |
| Refrigerant quantity 1st stage |
0.18 kg |
Circulation Pump
Source: Peter Huber Kältemaschinenbau SE
| . |
. |
| Delivery capacity pressure pump max. |
24 l/min; 0.7 bar |
| Delivery capacity suction pump max. |
18 l/min; 0.4 bar |
| Pump connection |
M16x1 AG male |
| Pump speed adjustable |
Yes |
| Pump type |
Pressure- and suction pump |
| Pump characteristics |
Pressure and suction pump, speed adjustable |
Connections
Source: Peter Huber Kältemaschinenbau SE
| . |
. |
| Digital interface |
Ethernet, USB (Host u. Device), RS232 Interface |
Operating Data
Source: Peter Huber Kältemaschinenbau SE
| . |
. |
| Permissible ambient temperature |
5-40 °C |
| Filling volume min. |
2.8 l |
| Expansion volume |
2.2 l |
| Power supply |
208-240 V 1~/2~ 50/60 Hz |
| Current consumption max. |
5 A |
