Interferometry is a major tool that is frequently used for surface metrology and has several uses in sectors such as laser production, storage systems, machine tooling, and semiconductors. For several decades, interferometers have been integrated into microscopes to analyze exterior substructures.

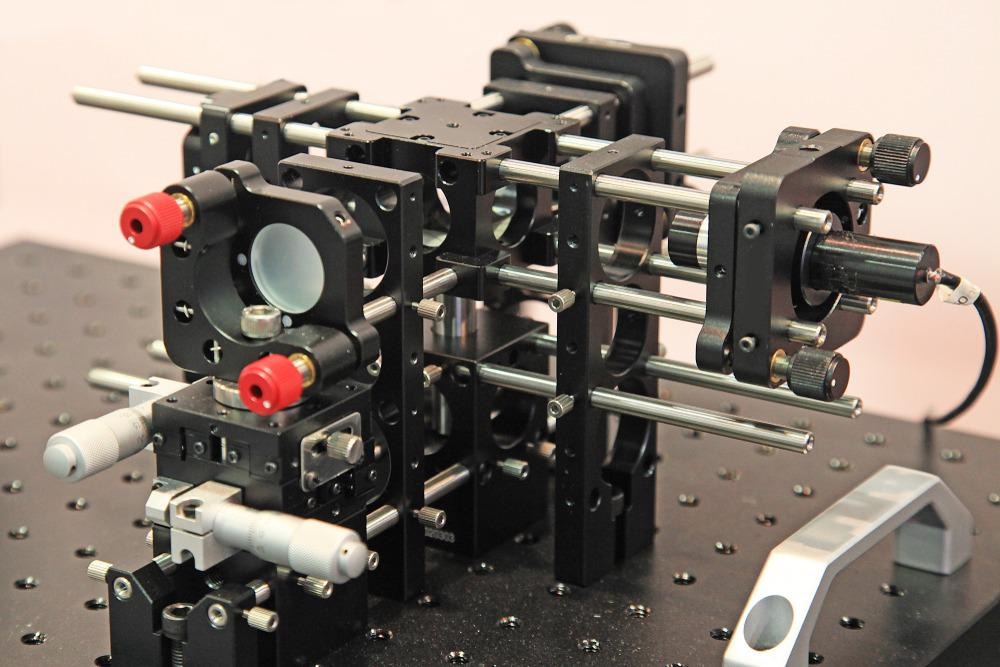

Image Credit: sspopov/Shutterstock.com
What is Interferometry
Interferometers are research instruments that are utilized in many disciplines of science and technology. Interferometers are so-called because they function by combining multiple sources of light to form a diffraction pattern that can be analyzed and studied, leading to the term "interfere-o-meter" or "interferometer."
Interferometer interfering signals convey details of the product or process being examined. They are frequently used to make very minute observations that would be impossible to accomplish otherwise. This explains why they are so effective at identifying gravitational waves.
Interferometry's potency has made it an apparent instrument for exploring multidisciplinary study in today's world, and it has spread to areas of engineering and materials science like shock spectrometry, surface characterization, and microfabrication. The latest gravitational wave finding was achieved by an interferometer known as "LIGO."
In a favorable environment, angstrom or sub-angstrom surface altitude or thickness assessments may be conducted using phase-shifting interferometric methods, which give an incredibly precise and quick manner of putting the diffracted data into the computer. With the latest growth of single phase-shifting methods, it is now feasible to undertake precise phase measuring procedures in less-than-ideal conditions and to create movies that depict how well the surface shape or optical thickness changes over time.
Techniques for Interferometry
The data from an interferometric assessment must be evaluated using a computer to obtain something from it. There are various methods for transferring interferometric information to a computer. The research by Grehan et. al. in The 7th World Congress on Particle Technology talks about some of these techniques.
Numerous computerized interferometers use a method called phase-shifting since it offers an extremely accurate and fast method of obtaining interferogram data in a database. The intrinsic loud sounds in the data-taking process are so minimal that angstrom or sub-angstrom optical path discrepancies can be assessed in a positive atmosphere.
The spatial carrier method is one of the oldest single-shot techniques. The spatial carrying approach introduces a lot of inclination between the two interfering lasers, resulting in many tilting edges. Another option is to capture all four phase-shifted frames using a single CCD camera. A spectrometer is employed in this configuration, with a polarization beam splitter causing the reference and testing beams to have opposite polarization.
The pix-related polarizing array interferometer is a transitional period strategy that works well with many spectra or even white light and requires the need for a quarter waveplate preceded by linear polarizing filters at varying angles.
Latest Research
Researchers have published a study in the journal Spatial Information Research that focuses on the assessment of deformation of the exterior surface using multitemporal SAR interferometry techniques. Radar data, particularly synthetic aperture radar (SAR) data and their many methodologies are appropriate for deformation monitoring.
SAR missions and methods are critical for detecting and monitoring deformation. Interferometry (InSAR), persistent scattering interferometry (PSInSAR), differential interferometry (D-InSAR), and ground-based InSAR are the fundamental techniques utilized for earth prediction and monitoring (GBInSAR).
The researchers determined that the DInSAR approach is appropriate when there are few data points available, but the PSInSAR method is appropriate when there are many data points available. The PSInSAR approach outperforms DInSAR in terms of accuracy across a larger region. When a sufficient quantity of SAR data is accessible, the PSInSAR approach may be used to estimate pointwise distortion over a vast region.
Applications and Advantages
Accurate interferometric techniques have several uses in metrology, materials research, satellite imaging, and a variety of other domains where optical and photonic qualities are used.
Interferometers come in all sorts of forms and sizes due to their vast range of applications. They are used to identify seismic waves, as well as to assess anything from the slightest alterations on the top of a tiny creature to the layout of huge areas of gas clouds in the distant Universe. Regardless of their varying designs or applications, all interferometers have one common factor: they overlay beams of light to form an interference pattern.
There are various benefits to using interferometry over other surface-measurement methods. It is very sensitive in detecting topography, which is normally recorded in nanometers. It also does not need mechanical interaction with the specimen surface. As a consequence, there is no chance of fracture surfaces or deformation, which may occur when utilizing test plates or contacting probe procedures.
Furthermore, because of their excellent resolving power, interferometers can span enormous regions while collecting tens of statistics every observation. Only optical dispersion and the pixel size in the camera restrict the resolving power.
Limitations
Despite its flexibility and significance, optical interferometric features make spectrometry very challenging in several fields. A coherent artifact that arises in an ultrafast degenerated pump-probe investigation using femtosecond pulses is one such instance, where the powerful signal during the temporal overlap of the two beams masks the real rising time of the "true signal."
A degenerate pump-probe experiment (DPP) occurs when the spectra of the pumps and probes are the same. DPPs are widely utilized in the investigation of new substances to retrieve traces of many-body effects in particle scattering processes. That impact may be rectified by altering the relative strengths of two beams or by modifying the polarization angle.
Interference patterns caused by undesired oscillation might therefore have an impact on fluorescence microscopy. There are many experimental situations of light-matter interactions in which the signal-to-noise ratio must be extremely good.
The effective collecting of photons is required for Raman scattering observations, light absorption and fluorescence investigations, quantum confinement research, spin injections, modification experiments, absorption spectroscopy, and many other sophisticated and sensitive probing methods. Because signal interference might conceal the data one is seeking, it is essential to comprehend the constraints in those collecting techniques when the experiment is developed.
Future Perspectives
In conclusion, interferometry is without a question one of the most vibrant and quickly evolving experimental methods. Interferometers will become more popular since they have been used in so many different sectors. The technique's adaptability makes it almost vital in high accuracy spectroscopy and new materials.
Owing to its small and large-scale application, it is an obvious option as a consistent and transferrable tool. The fact that two significant breakthroughs in the area of physics were achieved using interferometers attests to their relevance.
With rising laser engineering skills, ultra-short laser-pulse-centered interferometers will help solve working principles in physical and life sciences in considerable detail, impacting several of the most pressing technical pressures that modern society faces today.
References and Further Reading
Bhowmick, M. & Ullrich, B., 2019. Interferometry. In: Interferometry: Recent Developments and Contemporary Applications. London: IntechOpen, p. 128.
Besoya, M., Govil, H. & Bhaumik, P. 2021. A review on surface deformation evaluation using multitemporal SAR interferometry techniques. Spat. Inf. Res. 29, 267–280. Available at: https://doi.org/10.1007/s41324-020-00344-8
LIGO Laboratory, Caltech, 2022. LIGO - A Gravitational-Wave Interferometer. [Online] Available at: https://www.ligo.caltech.edu/page/what-is-interferometer
Zygo Corporation, 2022. Interferometry: Measuring with Light. [Online] Available at: https://www.photonics.com/Articles/Interferometry_Measuring_with_Light/a25128
Wyant, J. C. (2016, March). The evolution of interferometry from metrology to biomedical applications. In Quantitative Phase Imaging II (Vol. 9718, p. 971802). SPIE. Available at: https://doi.org/10.1117/12.2218169
