Feb 25 2009
h2>Folding paper into shapes such as a crane or a butterfly is challenging enough
for most people. Now imagine trying to fold something that's about a hundred
times thinner than a human hair and then putting it to use as an electronic
device.
A team of researchers led by George Barbastathis, associate professor of mechanical
engineering, is developing the basic principles of "nano-origami,"
a new technique that allows engineers to fold nanoscale materials into simple
3-D structures. The tiny folded materials could be used as motors and capacitors,
potentially leading to better computer memory storage, faster microprocessors
and new nanophotonic devices.
Traditional micro- and nano-fabrication techniques such as X-ray lithography
and nano-imprinting work beautifully for two-dimensional structures, and are
commonly used to build microprocessors and other micro-electrical-mechanical
(MEMS) devices. However, they cannot create 3-D structures.
"A lot of what's done now is planar," says Tony Nichol, a mechanical
engineering graduate student working on the project. "We want to take all
of the nice tools that have been developed for 2-D and do 3-D things."
The MIT team uses conventional lithography tools to pattern 2-D materials at
the nanoscale, then folds them into predetermined 3-D shapes, opening a new
realm of possible applications.
Smaller, faster
The researchers have already demonstrated a 3-D nanoscale capacitor,
developed in collaboration with MIT
Professor Yang Shao-Horn, which was presented at the 2005 meeting of the Electrochemical
Society. The current model has only one fold but the more folds that are added,
the more energy it will be able to store. Extra layers also promote faster information
flow, just as the human brain's many folds allow for quicker communication between
brain regions, says Nader Shaar, a mechanical engineering graduate student working
on the project.

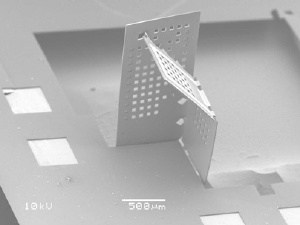

Getting the materials to fold back and forth into an accordion-like structure
has been one of the researchers' biggest challenges, along with getting the
faces and edges to line up accurately.
They have worked out several ways to induce the nanomaterials to fold, including:
- Depositing metal (usually chromium) onto the surface where you want the
fold to be. This causes the material to curl upward, but it does not allow
for right angles or accordion-type folds.
- Directing a beam of helium ions onto the desired fold location. The beams
imprint patterns that will cause the material to fold once it's removed from
the surface. High-energy beams go to the bottom of the material and cause
it to fold up; ions from low-energy beams accumulate at the top of the material
and make it fold down.
- Embedding gold wires in the material. A current running along the gold
wires interacts with an external magnetic field, creating a Lorentz force
that lifts the face. This technique is a form of directed self-assembly, where
the designer provides the template and then lets the device assemble itself.
The folded shapes can be fabricated with a few different types of material,
including silicon, silicon nitride (a type of ceramic) and a soft polymer known
as SU-8.
Once the material is folded, the tricky part is getting the faces to align
properly. The researchers have developed a few ways to do this successfully:
one uses magnets; another involves attaching polymers to a certain spot on the
faces and melting them with an electric current, sealing the two faces together.
They're still working on getting faces and edges of a folded cube to line up
with nanoscale precision, but Shaar has devised a promising method that uses
three pairs of matching holes and protrusions to pull the edge and face into
alignment.
The researchers are deep in the development phase of their nano-folded devices,
but they are starting to think about how the technology could be used in the
future. "We've got the core components figured out, and now we're just
having fun with figuring out some applications," says Nichol.
