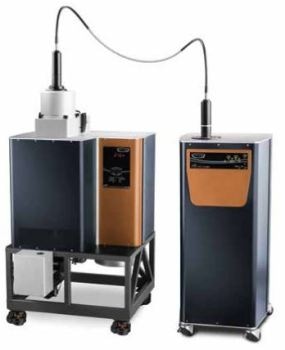

The Discovery Laser Flash DLF 1600 from TA Instruments is an advanced freestanding instrument for the measurements of thermal diffusivity and specific heat capacity of materials from room temperature to 1600 °C. The unique design includes a proprietary laser, detector, laser optics and furnace technologies. Together with the exclusive patented high purity alumina five-position sample carousel, ensures unparalleled measurement accuracy and sample throughput.
With the ability to be run in diverse atmospheric conditions, including air, inert gas, or under vacuum, the DLF 1600 is capable of characterizing a broad range of materials, including glasses, polymers, carbons, graphite, ceramics, composites, metals and alloys.
Features
- Powerful laser offers 40% more energy than any competitive design, for the most accurate testing to the highest temperatures and broadest range of samples, irrespective of thermal conductivity and thickness
- Patented* five-position carousel for unparalleled throughput and greater heat capacity measurements
- Proprietary fiber optic wand provides 99% homogeneous beam for the most uniform delivery of radiation to the sample
- Advanced alumina muffle tube furnace for uncompromised temperature performance from RT to 1600 °C and measurements in inert gas, air or vacuum
- Flexible carousel design, configurable with a range of adapters, sample holders and special fixtures for the broadest range of testing
- Real-time pulse mapping for excellent thermal diffusivity of thin and highly conductive materials
- High sensitivity IR detector for optimum signal-to-noise ratio, providing maximum accuracy over the whole temperature range
- Meets a variety of industry standard test techniques including ISO 13826, ISO 22007-Part4, ISO 18755, ASTM C714, ASTM E1461, ASTM E2585, BS ENV 1159-2, DIN 30905
*US Patent #6.375.349.B1
Specifications
| Laser Source |
| Type |
Class 1Nd: Glass, Floor-standing |
| Pulse Energy (Variable) |
Up to 35 Joules |
| Pulse Width |
300 µs to 400 µsec |
| Proprietary Transfer Optics |
Fiber Optic Wand |
| Furnace |
| Temperature Range |
RT to 1600 °C |
| Atmosphere |
Air, inert, vacuum (50 mtorr) |
| Detection |
| Thermal Diffusivity Range |
0.01 to 1000 mm2/s |
| Thermal Conductivity Range |
0.1 to 2000 W/(m*K) |
| Data Acquisition |
16 bit |
| Accuracy |
| Thermal Diffusivity |
±2.3% |
| Thermal Conductivity |
±4% |
| Repeatability |
| Thermal Diffusivity |
±2.0% |
| Thermal Conductivity |
±3.5% |
| Sample |
| Round |
8, 10, 12.7 & 15.9 mm Diameter |
| Square |
8 & 10 mm length |
| Maximum Thickness |
10 mm |
| Autosampler |
| Type |
Five-Position Carousel |
