For testing multiple components at once, Testometric offers standard and wide frame models that come equipped with dual or triple test stations. For users that have a continuously changing inventory of parts that need various grips and load cells in order to test, these models can be particularly useful.

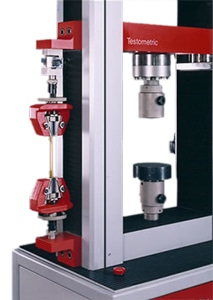

The FS150 and FS300 models can be fitted with a second testing station, which attaches to the side of the core loading frame and can be equipped with a load cells up to a maximum capacity of 25 kN.
For users that are testing both high and relatively low strength materials, this is an excellent choice as the correct load cells and grips are always fitted ready for testing.
Force Measurements
Universally calibrated, better than Grade 0.5 EN 7500-1, DIN 51221 ASTM E-4. AFNOR A03-501. Range 0.4% to 100% minimum. Automatic identification of load cell. Resolution 1 part in 500000 with autoranging. Electronic load cell protection.
Extension Measurements
Full frame length to 0.001 mm. Resolution 0.001 min. Accuracy 0.01 mm. Absolute, relative and auxiliary modes mm, inch and percent. Programmable extension limits.
Speed Control
Drive system temperature and current protection. Positional jog speed 0.001 mm/min to maximum. Speed setting increments 0.001 mm/min.
Load Frame
Rigid frame, using dual slide crosshead guidance system and rigid extruded support column. Frame stiffness 5 kN/mm plus K factor facility built-in. Re-circulating ball screw with bellows. Electronic limit trips, total travel trips and customer programmable safety stops. Rubber mat front protection.
Software
This system runs on the comprehensive winTest™ Analysis universal windows software. This complete package covers tensile, compression, peel, shear, tear, cyclic, creep and multi stage testing. It also comes with a large range of industry standard test methods as well as the ability to program and store as many custom testing methods as necessary.
All data produced from testing is automatically stored and can easily be transferred to other processing software such as word, excel, access and SPC systems, enabling enhanced report generation.
Dual and Triple Universal Test Systems

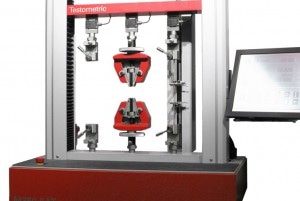

Dual and Triple Universal Test Systems - Picture 1
