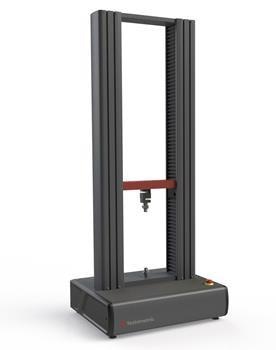

The X350 Series from Testometric is a bench-mounted, dual-column Universal Testing Machine equipped with complete computer control and precision AC servo drive system. The X350 Series allows high-speed operation for efficient material testing of up to 20 kN capacity.
Source: Testometric Company Ltd
| |
X350-5 |
X350-10 |
X350-20 |
| Force Capacity kN |
5 |
10 |
20 |
| Accuracy |
Better than +/- 0.5% of reading down to 1/1000th of load cell capacity |
| Crosshead travel mm* |
1100 |
1100 |
1100 |
| Vertical space mm |
1275 |
1275 |
1275 |
| Position Control Resolution mm |
0.000001 |
0.000001 |
0.000001 |
| Distance Between Columns mm |
320 (or 420 mm with wide frame option) |
| Minimum Speed mm/min |
0.00001 |
0.00001 |
0.00001 |
| Maximum Speed mm/min |
2000 |
2000 |
1000 |
| Speed Accuracy |
+/- 0.1% under stable conditions |
| Max force at full speed kN |
5 |
10 |
20 |
| Max speed at full load mm/min |
2000 |
2000 |
1000 |
| Data Acquisition Rate (at PC) |
500 Hz as standard (optional 1000 Hz) |
| PC Connection |
Ethernet (or USB via adaptor) |
| Machine Configuration |
Twin-column, bench mounted (optional base cabinet available) |
| Frame Stiffness kN/mm |
60 |
60 |
60 |
| Weight kg |
110 |
110 |
120 |
| Operating Temperature °C |
0 to +55 |
| Operating Humidity |
90% relative humidity or less |
| Electrical Supply |
230 V, 1 ph 50/60 Hz (115 V option available) |
| Power kW |
0.45 |
0.45 |
0.45 |
*-Extended travel versions are available on request.
Made to Measure
With high-precision control and accuracy, the fully digital testing system provides automated computer control of test methods that ease the operation.
- High-resolution load cells with precisions better than +/−0.5% and down to 1/1000th of the load cell capacity
- Overload capability of load cells is 800% without causing any damage
- Software calibration check facility for immediate verification of machine precision
- Load cells and extensometers are automatically recognized with on-device storage of calibration parameters
- Crosshead guidance system ensure smooth running and accurate alignment
- Precision crosshead control through digital AC servo drive and brushless servo motor provides 23-bit positional control and a maintenance-free operation
- Pre-loaded, high-efficiency, self-cleaning ballscrews enable quick and noise-free testing; equipped with sealed-for-life lubricated end bearings
- High-speed data collection systems for up to four synchronous channels
- Overtravel, overload and impact protection
- Integral load cell cable routing in machine column prevents snagging and damage to cables
- Six I/O channels for extra devices, like calipers, micrometers, extensometers, balances, etc.
- High stiffness loading frames equipped with solid dedicated steel crossheads and rigid extruded support columns fitted with T-slots are provided for accessory mounting
- A comprehensive range of fixtures and grips for compression, tension, shear, peel flexural, product testing, etc.
- An array of contacting and non-contacting extensometers, such as laser and video models.
- Telescopic covers provide extra protection for ballscrews against testing debris and dust
- Compact footprint design saves floor and bench space
Image Credit: Testometric Company Ltd

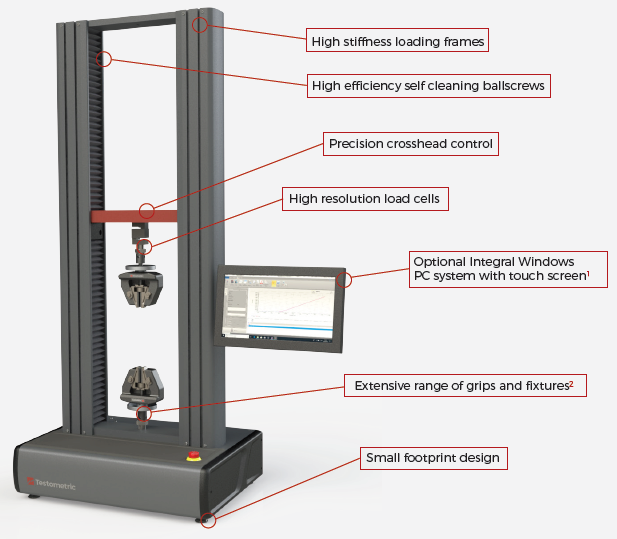

1. Available at an extra cost. The machine can alternatively be regulated using a regular laptop or PC (not supplied)
2. Machine demonstrated with PWG pre-tightening wedge grips (available separately)

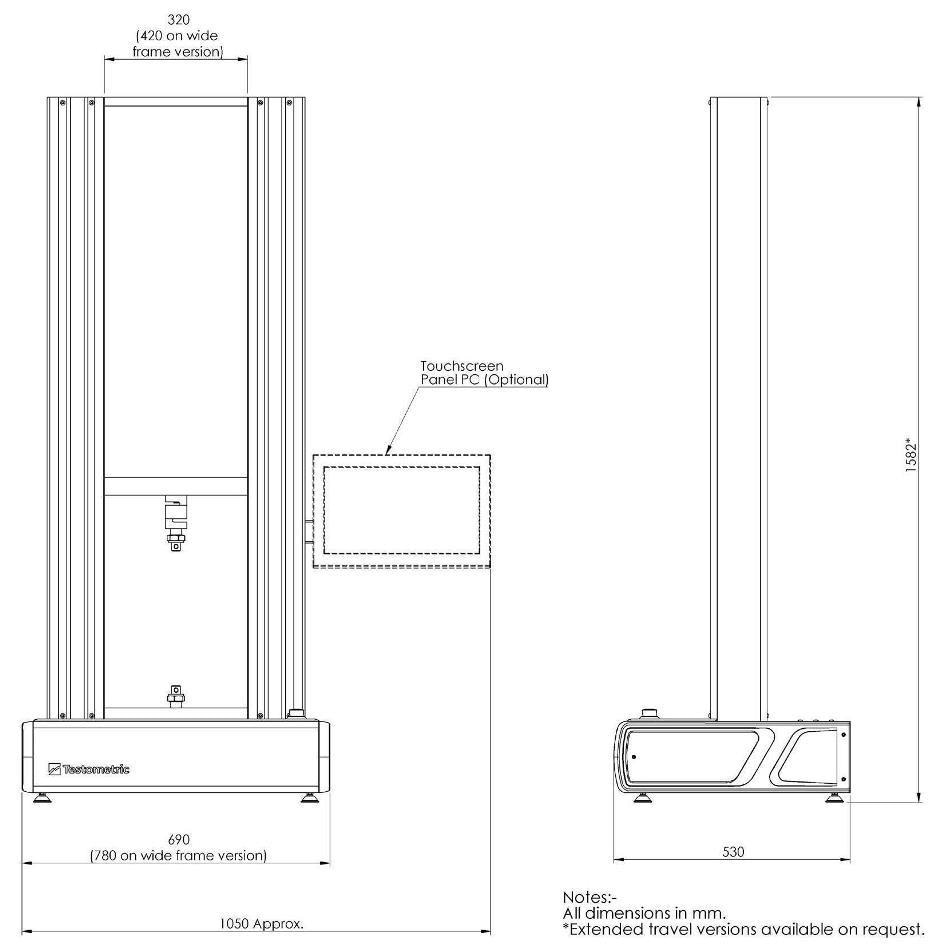

X350 Dimensions
Image Credit: Testometric Company Ltd

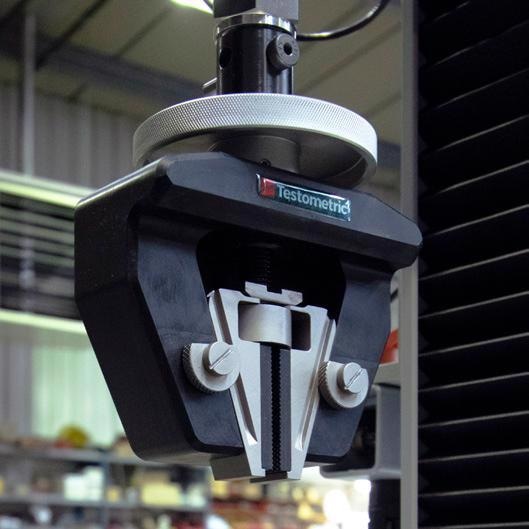

Large range of grips and fixtures available. Image Credit: Testometric Company Ltd

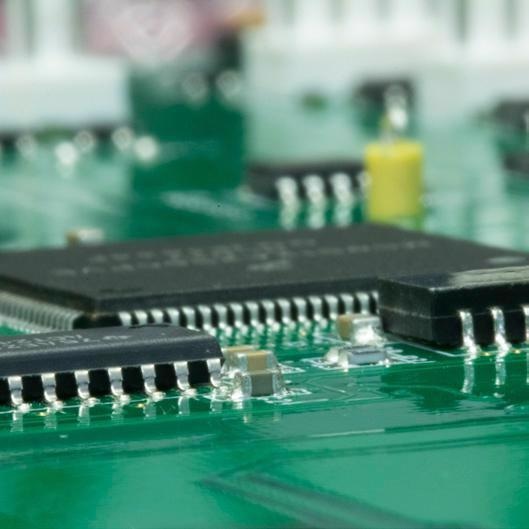

High-speed modular electronics. Image Credit: Testometric Company Ltd

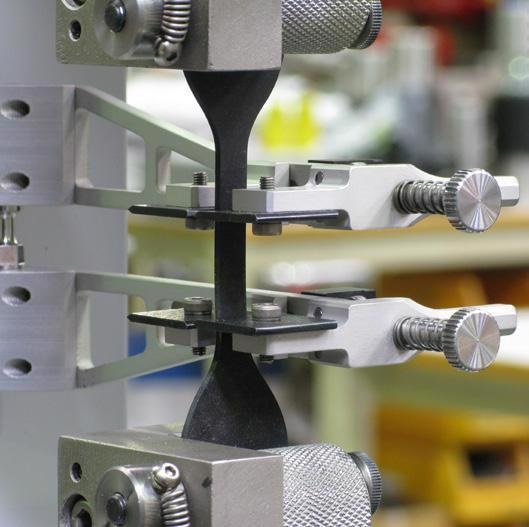

Comprehensive range of extensometry. Image Credit: Testometric Company Ltd
Built for Precision
Force Measurement
Universally calibrated and better than Grade 0.5 EN 7500-1, DIN 51221 ASTM E-4 and AFNOR A03-501. Ranges from 0.4% to 100% minimum. Load cells are automatically identified and electronically protected. Resolution is 1 part in 500000
Extension Measurement
Complete frame length to the highest resolution of 0.000001 mm (selectable). Precision is +/ −0.01 mm. Relative, absolute and auxiliary modes in inch, mm and percent are available.
Speed Control
Top-class, low-speed performance with speeds as low as 0.00001 mm/minute. Drive system temperature and current protection are also available.
Load Frame
Rigid frame uses a rigid extruded support column and a dual-slide crosshead guidance system. Frame stiffness is 60 kN/mm with built-in. K factor facility. Re-circulating ball screw with bellows, total travel trips, electronic limit trips and customer programmable safety stops are also available.
Electronics System
Modular electronics system allows rapid data transfer to the computer (up to 1000 Hz) through a high-speed Ethernet connection. Comprehensive input options help connect a wide range of accessories and extensometers through simple plug-in interface modules.
Safety Features
Broad safety features, such as E-Stop, overload/impact detection and programmable extension limits, guarantee a maximum level of operator safety. Fully conforms to global safety directives—2006/42/EU Machinery Directive, 2014/30/EU Electromagnetic Compatibility Directive and 2014/35/EU Low Voltage Directive.

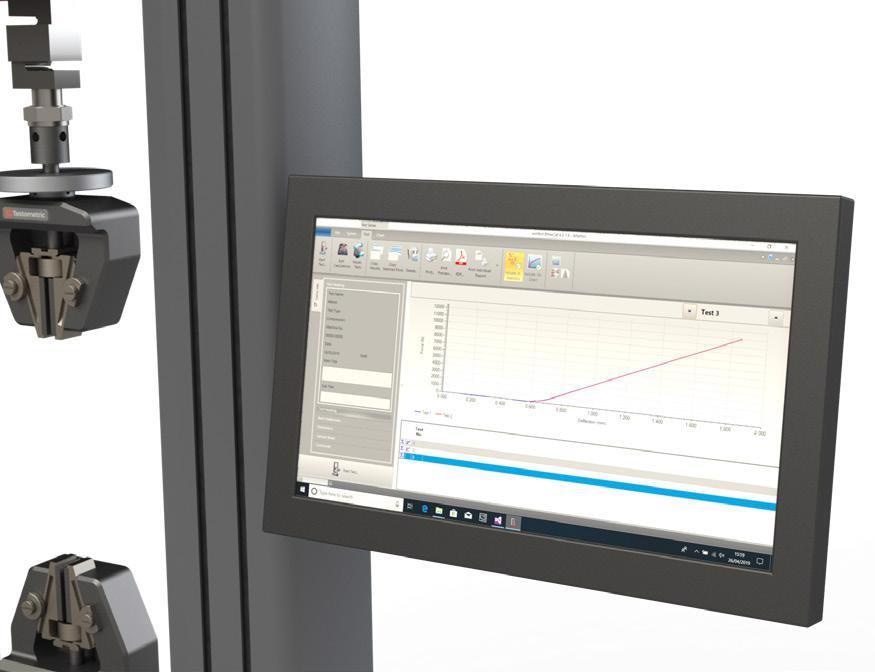

Optional Touchscreen Panel PC
When the machine is coupled with the optional IPC3 industrial-grade Panel PC with touchscreen control, it becomes a powerful independent system without the necessity for a laptop or external PC.
With the help of the latest Windows 10 operating system and running a complete version of the winTest software from Testometric, the system enables full control of the test machine and offers storage and access to unrestricted test methods and results.
The mounting arm, which is included, fixes to the machine column T-Slots and is completely adjustable for reach, height and viewing angle, thus enabling users to determine the most ergonomic working position.
Specification
- QM87 Chipset, 4xUSB3.0, 3xCOM ports [RS232], 2xGigaLAN
- Display 15.6 ″ 1366x768 panel resistive touch screen with dirt-repellent, anti-reflective screen protection
- 2.5″ 250 GB, Solid-State Disk (SSD) and SATA III 6GB/second
- CPU-i5-4300M Intel Core i5 Processor, 2.6 GHz.
- 4 GB 1600 MHz SODIMM DDR3 204-pin
Image Credit: Testometric Company Ltd
Tried and Tested Software
All Testometric versions are delivered with the company’s comprehensive winTest Analysis software package.
The winTest Analysis is the outcome of several years of constant development and offers an intuitive and flexible software package to suit all kinds of material testing. The built-in test techniques span flexural, tensile, peel, compression, tear, shear, creep, cyclic and multi-stage tests.
The winTest Analysis contains an extensive range of industry-standard test techniques and the required facility to make and store a limitless number of additional test methods. All test data can be automatically stored and can be easily exported to other software packages, like Excel, Word, Access and SPC systems for improved generation of reports. Users can refer to the winTest software datasheet for more data.
With the inclusion of the RCE remote connection option, all machines can be directly web-linked to Testometric for remote investigation, tracking and software upgrades.

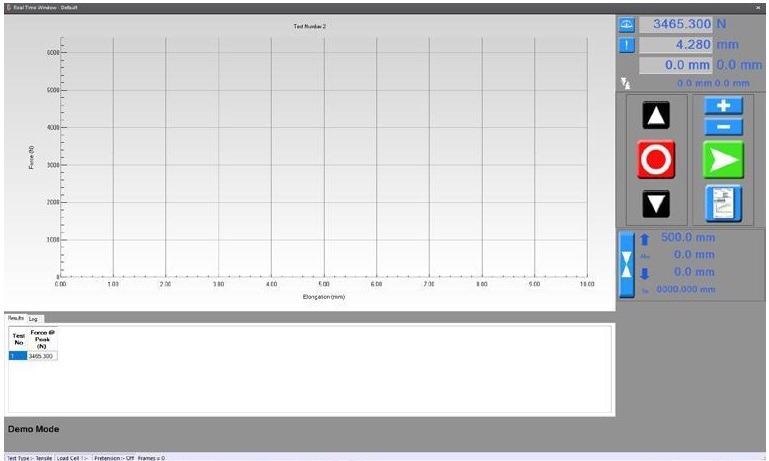

Real time test screen. Image Credit: Testometric Company Ltd

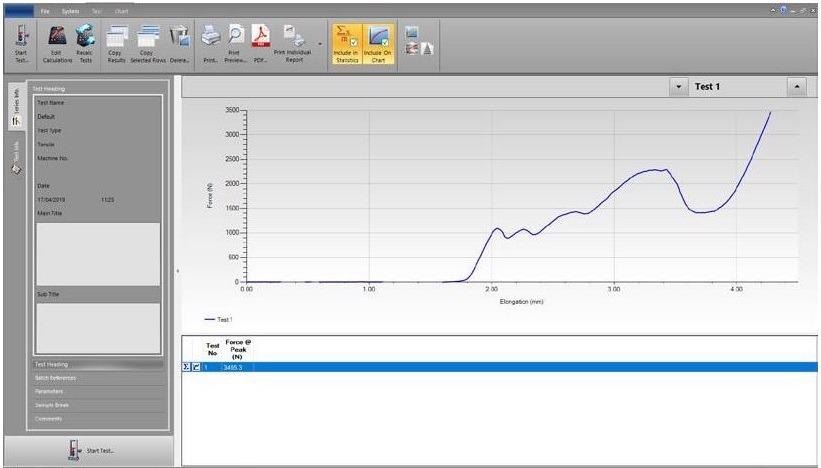

Test analysis screen. Image Credit: Testometric Company Ltd
