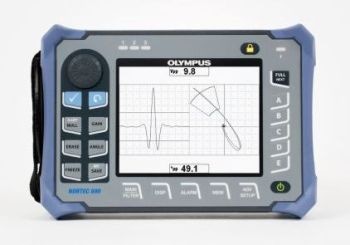

Evident’ NORTEC 600 eddy current flaw detector combines high-performance digital circuitry and flaw detection in a durable, portable, and compact unit. Its vivid, 5.7-inch VGA display and true full-screen mode offer highly visible and contrasting eddy current signals under any lighting conditions.
The NORTEC 600 flaw detector’s redesigned interface takes the intuitive, knob-operated navigation of its predecessors and merges it with the efficient direct-access keys and simple menu structure of other popular Evident instruments.
The NORTEC 600 instrument comes in four versatile models to deliver a variety of capabilities, including an all-in-one display, real-time readings, an application selection menu, and signal calibration in freeze mode. These features help ensure that operators of any level can handle inspections quickly and easily.
Image Credit: Evident Corporation

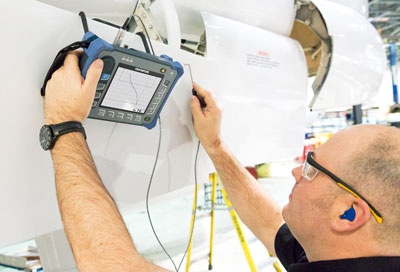

Reliable and Robust
The NORTEC 600 flaw detector can withstand harsh field conditions with a field-proven instrument case. Its casing resists extreme weather so users can rely on the instrument for any eddy current inspection task.
Key Features
- Long battery life up to 10 hours
- Engineered to meet IP66 requirements
- 10 Hz to 12 MHz frequency capacity
- Stores up to 500 files (program and data)
- EN-15548 compliant
- Bright, 5.7-inch (14.5 cm) VGA display
- Improved filters for rotary scanner mode
- Full-screen option in any display mode
- Intuitive interface with application selection presets
- Automatic internal balancing (BNC connector)
- All-settings configuration page
- Up to two real-time readings
- True automatic mixing
- On-board file preview

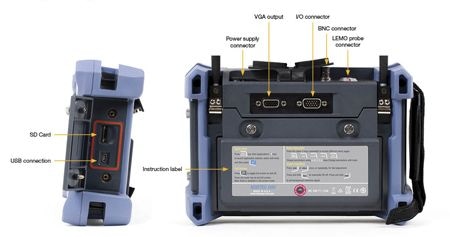

Easy Integration
Engineered with the integrator in mind, the NORTEC 600 flaw detector merges into any integrated eddy current detection system. Its many hardware and software features help ensure it performs consistent flaw detection in industrial settings.
- Continuous null filter
- Built to meet IP66 requirements
- 6 kHz measurement rate
- 10–50 °C (50–122 °F) operating temperature range
- Strip chart view with sweep alarm
- Remote control from the NORTEC PC
- Digital inputs
- Analog outputs
- Alarm outputs
Image Credit: Evident Corporation
*Regional availability for the NORTEC 600 flaw detector. Contact your local Evident sales office for more information.
NORTEC 600 Eddy Current Flaw Detector Overview
