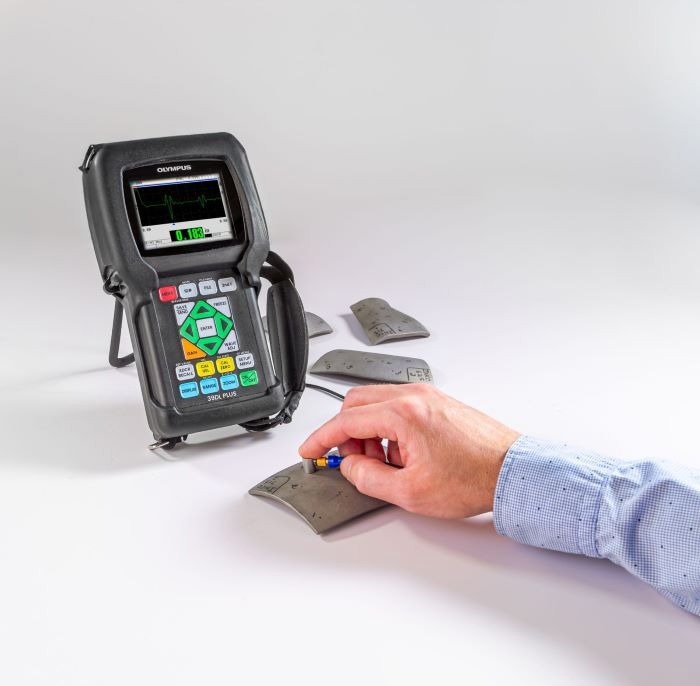

Simplify ultrasonic thickness testing procedures with a portable, dependable, fast, and connected gauge—the 39DL PLUS instrument. Also known as the 39DLP™ gauge, this advanced handheld instrument can be used as a precision or corrosion thickness gauge for demanding applications.
Building on the success of its predecessor, the 39DLP gauge offers faster data transfer, quicker scanning up to a 60 Hz update rate, and integrated wireless connectivity to make inspection workflows more efficient.
- Connected: Data transfer options include integrated Wi-Fi®, integrated Bluetooth®, USB port, RS-232 port, and a removable microSD card*
- Fast: Scan for minimal thickness areas at an update rate that is two times faster than that of its predecessor and comparable handheld thickness gauges (up to 60 Hz vs. 30 Hz)
- Versatile: Use the broad range of dual and single element transducers from Evident to handle diverse applications with one gauge
*Wi-Fi® and Bluetooth® are pending certification in some regions. Contact your local Evident representative for details on their availability.
Affordable Part Scanning

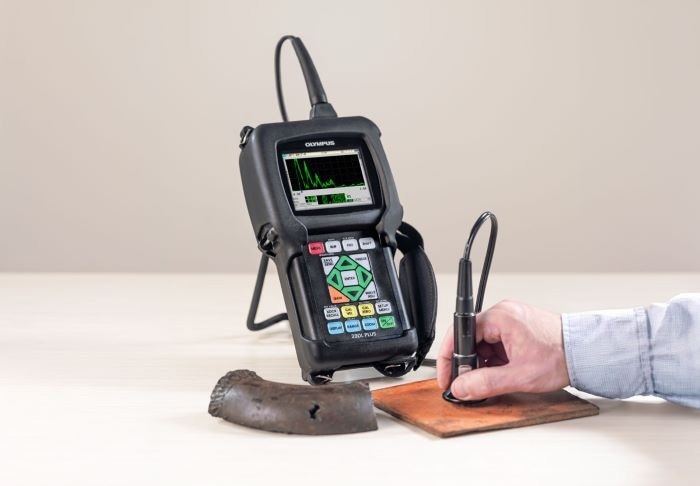

The 39DLP instrument offers a breakthrough 60 Hz update rate for handheld thickness gauges, making it an asset in scanning applications.
- Works as an affordable alternative for inspection codes that require a 60 Hz update rate for scanning. Get the scanning speed of a flaw detector with the ease of use of a thickness gauge.
- Find thin spots more easily when scanning for minimal thickness areas on pipes and other corrosion-related assets.
![39DL PLUS™ Ultrasonic Thickness Gauge](https://d12oja0ew7x0i8.cloudfront.net/images/equipments/EquipmentImage_9084_17204189999366301.jpg)
One Thickness Gauge for Multiple Applications
Benefit from various application-specific software solutions and robust measuring tools for present and future needs.
- Wide thickness range of 0.08 mm (0.003 in.) to 635 mm (25 in.) depending on material and transducer choices
- Measure corrosion thickness using dual element transducers
- High Resolution software option of 0.001 mm or 0.0001 in. using single-element transducers from 2.25 MHz to 30 MHz
- THRU-COAT™ technology and echo-to-echo measurements enable measurements through coated and painted surfaces
- Software solution for internal oxide and boiler tube measurements
- Measure up to four layers at once using Multilayer software
- High Penetration software option for rubber, fiberglass, thick castings, and other attenuating materials
- Standard resolution is 0.01 mm or 0.001 in. for all transducers
- Measurements of thickness, velocity, and time of flight
- Monitor variation in thickness and its percentage from a predetermined value using the differential and reduction rate modes
- 10,000 reviewable readings per scan in time-based B-scan mode
- High Dynamic Gain technology with digital filters improves the initial gain setting based on the calibration V-Path Builder for customized V-path compensation in corrosion applications
- Designed to comply with EN15317
- Compatible with every probe and accessory supported on the previous model, the 38DL PLUS™ (38DLP™) gauge
39DLP Key Benefits

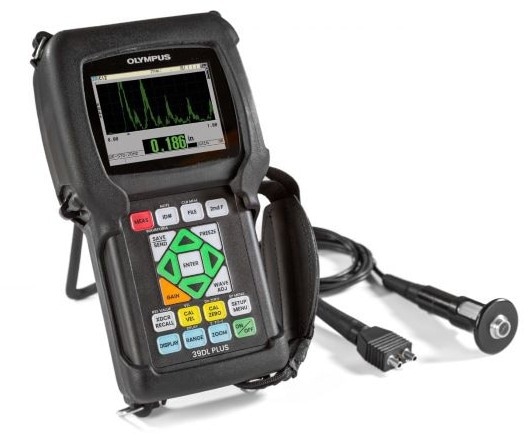

Trusted Ultrasonic Performance
The 39DLP gauge improves on previous success. Use industry-standard ultrasonic thickness testing technology to carry out work with confidence.
- Measurements are precise and repeatable thanks to excellent signal quality, stable waveforms, and well-designed algorithms
- World-class ultrasonic performance developed by professionals with more than 35 years of nondestructive testing (NDT) experience
![39DL PLUS™ Ultrasonic Thickness Gauge](https://d12oja0ew7x0i8.cloudfront.net/images/equipments/EquipmentImage_9084_17204190885512591.jpg)
Built to Last in Harsh Environments
The 39DLP gauge is designed to withstand shocks, drops, and rough handling to keep users productive wherever thickness inspections are needed.
- Rugged design protects against dust and water (designed to IP67)
- MIL-STD-810H explosive environment, shock, and vibration tested
- Broad operating temperature range of -10 °C to 50 °C (14 °F to 122 °F)
- Rubber boot protects and has a convenient gauge stand
![39DL PLUS™ Ultrasonic Thickness Gauge](https://d12oja0ew7x0i8.cloudfront.net/images/equipments/EquipmentImage_9084_17204190956231750.jpg)
Easy to Carry, Easy to Use
The 39DLP handheld gauge was created with the operator in mind. It is easy to use on the production floor or in the field.
- Ergonomic keypad: Quickly access and operate all features using either hand
- Lightweight design: Just 0.83 kg (1.83 lb) in weight
- Integrated data logger: Acquire thickness measurements and waveform data with ease
- Effective inspections: Setups for dual and single element transducers: default and customized
- Secure access control: Lock access to certain instrument features with a password
- Excellent clarity: Transflective color VGA monitor with settings for both indoor and outdoor use
- View work on a bigger screen: VGA output for connecting the gauge to a PC or another larger display
![Outdoor display setting, A-scan mode](https://d12oja0ew7x0i8.cloudfront.net/images/equipments/EquipmentImage_9084_17204191031506245.jpg)
Outdoor display setting, A-scan mode.
![Indoor display setting, B-scan mode](https://d12oja0ew7x0i8.cloudfront.net/images/equipments/EquipmentImage_9084_17204191219032659.jpg)
Indoor display setting, B-scan mode.
