The 72DL PLUS ultrasonic thickness gauge (72DLP™ gauge) is a user-friendly instrument that provides accurate and high-speed precision thickness measurements. With a low minimum thickness capability, quick scanning, and sophisticated algorithms, users can confidently measure the thickness of ultra-thin layers and other challenging materials in manufacturing.
The 72DLP thickness gauge comes in two models—standard frequency and high frequency—to suit various precision thickness applications. The high-frequency model can measure ultra-thin materials, such as multilayer paint, plastics, metals, and coatings.
With the Multilayer Measurement feature, the gauge can display the thickness of up to six separate layers simultaneously. Every 72DLP model has the capabilities to measure thickness quickly and accurately:
- Excellent signal-to-noise ratio thanks to digital filters, making it possible to measure noisy materials' thicknesses (such as fiberglass) with accuracy
- Easy-to-use and high-quality touch screen can be viewed from various angles
- PC interface application provides data creation, management, sharing, and analysis tools to empower data-driven decisions on the production floor and help maintain consistent product quality
72DLP Key Benefits

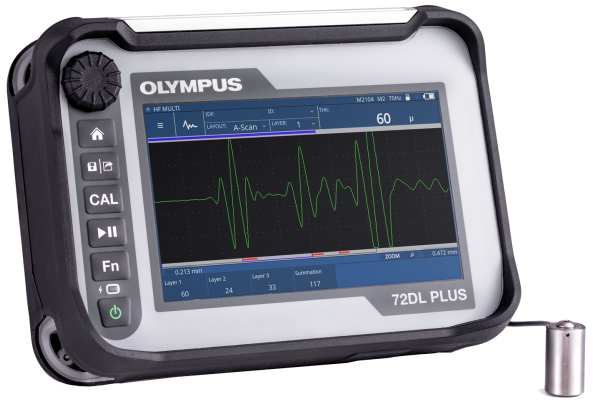

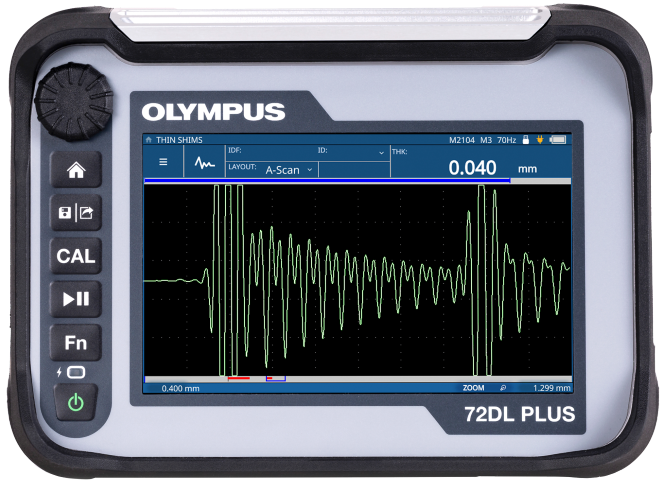

![72DL PLUS: Advanced Thickness and Flaw Detection Solutions](https://d12oja0ew7x0i8.cloudfront.net/images/equipments/EquipmentImage_9085_17204196194621092.png)
Confidently Control the Thickness Inspection Process
Smart tools simplify the process of taking precision ultrasonic thickness measurements, streamlining everything from application setup to performing and evaluating inspections quickly and confidently.
- Large, clear display: View thickness measurements on a 7-inch high-resolution WVGA touchscreen
- Multiple measurement layouts: Obtain accurate views of thickness changes using A-scan, B-scan, A/B-scan, trend, and zoom measurement layouts
- Inspection guidance: The interactive part map featuring thickness measurement locations (TMLs) provides an overview of the inspection status, enabling users to do their job faster and with confidence
- Data management and analytics: Internal data logging and PC interface application expedite the gathering and evaluation of inspection data
- Connected: Wi-Fi® and Bluetooth® capabilities are supported for Industry 4.0 practices
- Simple application setup: Create custom applications that reduce the time it takes to set up the device for regular thickness inspections
Intuitive User Interface with an Easy-to-View, Large Screen
- Full-color touch screen measuring 177.8 mm (7 in.) provides access to the setup and measurement layouts
- Excellent visibility with a wide viewing angle in most ambient conditions
- Easily adjust the settings to suit specific needs thanks to guided configuration
Precision Ultrasonic Thickness Gauge Built for Industrial Environments
- Designed to withstand dust and moisture (designed to IP65)
- MIL-STD-810G drop tested to reduce the need for repairs in case of drops or falls
- Wide operational temperature range of –10 °C to 50 °C (14 °F to 122 °F) for accurate measurements in cold or hot environments
- Weighs 2.1 kg (4.6 lb), making it portable for the production floor
- Simple-to-use adjustment knob, key buttons, and touch screen
- Suitable for use on a work surface, in both indoor and outdoor environments, and with a four-point chest harness or shoulder strap
- Long battery life of up to eight continuous hours
Measure the Thickness of Up to 6 Layers for Multilayer Coatings, Paint, Plastics, and Other Materials
The Multilayer Measurement feature enables multilayer thickness measurements of up to six layers. Easily access the measurement settings for each layer—including material, velocity, target thickness ranges, and alarm thresholds—through the configuration workflow and touch-screen controls.
![72DL PLUS: Advanced Thickness and Flaw Detection Solutions](https://d12oja0ew7x0i8.cloudfront.net/images/equipments/EquipmentImage_9085_1720419626471393.jpg)
This information, including images, has been sourced, reviewed, and adapted from materials provided by Evident—NDT. For more information on this source, please visit EvidentScientific.com.
