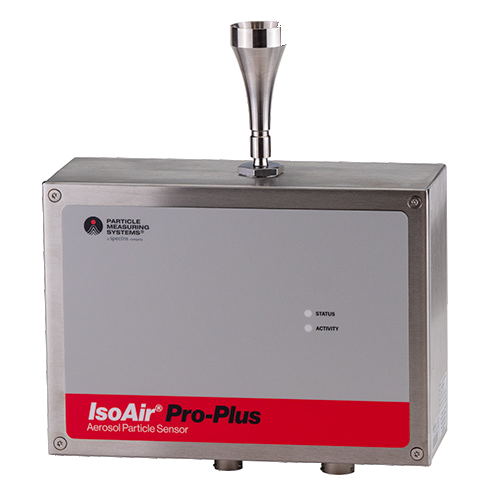

The IsoAir® Pro-Plus Remote Particle Counter employs cutting-edge technologies to streamline cleanroom monitoring, providing a straightforward yet potent solution that complies with global regulations.
This device’s data can seamlessly integrate with either Particle Measuring Systems’ FacilityPro® Monitoring System or Facility Net software. Furthermore, it offers the flexibility of third-party communication options, including Modbus TCP/IP and optional PMS TCP/IP protocols.
Housed within a rugged 316 L stainless steel enclosure, this instrument boasts liquid resistance and possesses IP65 and NEMA 4× ratings.
A quick-release mounting bracket conveniently stores crucial sensor data, such as the IP address at the measurement point. This reduces the time and complexity associated with unit installation after calibration or servicing.
The Isokinetic Sampling Probe (ISP) can be affixed directly to the inlet, extended from the particle sensor using rigid stainless steel tubing, or remotely positioned using flexible tubing in virtually any installation scenario.
The IsoAir Pro-Plus Remote Particle Counter is a hassle-free remote particle sensor that requires no intricate reprogramming. It comes equipped with its own blower, eliminating the need for an external vacuum, and operates with either 100 to 240 VAC or 24 VDC input power.
Benefits
- Quick, real-time alerts of contamination issues
- An essential component of a Contamination Control Strategy
- Improved connectivity and user-friendliness
- Interfaces with Particle Measuring Systems’ FacilityPro SCADA NG, Pharmaceutical Net Pro, or Facility Net software for comprehensive data management
- Reduced installation time and lowered error risk with data stored in the mounting bracket
- Reliable, with minimal risk of data loss (saves 3,000 samples in case of communications outage)
- Quick-release mounting bracket streamlines calibration and servicing
- Durable laser diode reduces long-term maintenance time
- Cost-effective cleanroom monitoring: No central vacuum system required
- Chemically resistant IP 65 and NEMA 4X rated enclosure
- Flexible ISP mounting options increase installation choices and reduce installation expenses
Features
- 2-8 selectable channel sizes and 2-channel Pharmaceutical mode
- 24 VDC and 100 - 240 VAC input power
- Automatic shut-off for capped probe
- Built in blower with HEPA-filtered exhaust
- Compliance with ISO 21501-4:2018 and CE standards, optional ISO 17025 calibration
- Flow rate of 1.0 CFM
- IP65 and NEMA 4X rated 316L stainless steel enclosure
- Modbus TCP/IP or optional PMS TCP/IP communications
- Optional digital output and analog inputs and outputs
- Optional wireless communication
- Two local LEDs for status and activity
- VHP resistance
Applications
- Particle monitoring system designed for pharmaceutical manufacturing areas
- Specialized particle monitoring for isolators
- Suitable for aerospace and industrial applications
- Cleanroom particle monitoring system
Specifications
Source: Particle Measuring Systems
| . |
. |
. |
| Channel Options |
2 - 8 configurable channels from 0.3 to 25.0 μm. 2-channel Pharmaceutical Mode for 0.5 and 5.0 μm. |
| Flowrate |
1.0 CFM ± 5% (28.3 LPM) |
| Vacuum Source |
The internal blower is quiet, cool-running, and long-lived, with no contaminating carbon vanes. The pump output is HEPA-filtered and discharged from the bottom of the enclosure. |
| Pump Shutoff |
An automatic shutoff activates if the blower fails or if the system detects that the probe cap is on the sample probe while running. The system will automatically try to restart based on the user-defined configuration. |
| Calibration |
Calibration materials used are traceable to the US National Institute of Standards and Technology (NIST).
The unit is calibrated to ISO 21501-4:2018 requirements. ISO 17025 calibration is optional. |
| Zero Count Level |
≤ 7.07 counts/m3 |
| Maximum Concentration1 |
> 42,924,662 particles/m3 |
| Exterior Surface |
Stainless steel (Grade 316 L) |
| Communications |
Ethernet communication via:
- Modbus TCP/IP, or - PMS TCP/IP (optional)
- Four (4) 4-20 mA inputs, 24 VDC nominal (optional)
- Three (3) 4-20mA output: Two (2) for particle data, one (1) for alarm indication (optional)
- Five (5) Solid State Relay outputs, 48 V, 0.5 A (optional) |
| Controlling Software |
FacilityPro processor with any of the following PMS-provided software:
- FacilityPro SCADA NG
- Pharmaceutical Net Pro
- FacilityPro SMART NG
Facility Net software
Modbus TCP/IP client software |
| Wireless (Optional) |
WiFi 802.11b/g, WPA, WPA2, WEP |
| Data Security |
Unalterable data. 21 CFR Part 11 compatible transfer to PMS-provided software. Backup storage of 3,000 samples, including flow data (volume, status, etc). |
| Status Indicators |
Ethernet
Programmable |
Status: Two-color LED
Activity: One-color LED |
| Dimensions (w x h x d) |
11.7 x 10.2 x 5.0 in (29.7 x 26.0 x 12.6 cm) |
| Weight |
8.8 lb (4.0 kg) |
| Power |
AC: 100 - 240 VAC 50/60 Hz, 1.15 A
DC: 24 VDC ± 10%
AC input voltage fluctuation shall not exceed +/-10% |
| Laser Classification |
Class 1, complies with US 21 CFR 1040.10 and EN60825-1. An internal, enclosed Class 3B laser is used per EN60825-1. |
1 Less than 10% coincidence loss at maximum recommended ambient concentration.
