DataAnalyst Supportive Software Package for Data Management

DataAnalyst is a supporting software suite for Lasair Pro, Lasair III, and MiniCapt Mobile devices, facilitating seamless connectivity for data downloading, archiving, and reporting while ensuring full compliance with secure data transfer protocols.

The program accommodates a diverse range of installation setups, spanning from individual base stations to integrated networks encompassing multiple Lasair Pro, Lasair III, and MiniCapt Mobile instruments linked to a LAN for efficient distribution and reporting.

Its robust reporting framework operates in conjunction with specific inputs from the particle counter, filtering sampling data based on factors such as location, date/time, or product batch information. Reports generated can be tailored to meet industry standards and configured to incorporate raw and tabular data in both statistical and graphical formats.

Furthermore, the reporting tool offers flexibility by allowing configuration for various report formats, including certification adherence to ISO 14644-1:2015, FDA, EU GMP, or FS 209 standards. Integration with MiniCapt Mobile microbial samplers enables the collection, storage, and reporting of sampling data.

The manual data entry feature empowers authorized users to input CFU counts, incubation temperature, and incubation time. This comprehensive functionality allows all cleanroom classification and monitoring data to reside within a singular, secure, and validated program.

Benefits

• Cleanroom certification reports are in accordance with ISO 14644-1:2015, FDA, EU GMP, and FS 209E standards
• Lasair Pro and Lasair III particle counters, along with MiniCapt Mobile microbial samplers, benefit from long-term data archiving capabilities
• The system is compliant with 21 CFR Part 11, ensuring data security and integrity
• A centralized SQL Server^® database facilitates access to all data and reports from Lasair Pro and Lasair III particle counters, as well as MiniCapt Mobile microbial samplers, across a site-wide LAN
• Instrument data can be easily downloaded with a single click from a configured instrument
• Secure data export is possible through the USB port on the Lasair III and via Ethernet connections on the Lasair Pro and MiniCapt Mobile
• The software's enhanced security features accommodate Windows Active Directory ID/password management

Features

• Designed to work seamlessly with Lasair III and MiniCapt Mobile devices
• Streamlined report filtering and configuration for simplicity
• Features an intuitive tabular design for user-friendly navigation
• Maintains a comprehensive audit trail for full transparency
• Swift security configuration allows for the addition of new users and customization of groups

Applications

• Retrieving data from Lasair Pro, Lasair III, and MiniCapt Mobile devices
• Analyzing trends in cleanroom certification and contamination
• Monitoring and reporting for cleanroom compliance
• Reporting on microbial activity
• Generating cleanroom certification reports using Lasair Pro and Lasair III particle counters
• Monitoring and reporting on process tool performance

Source: Particle Measuring Systems

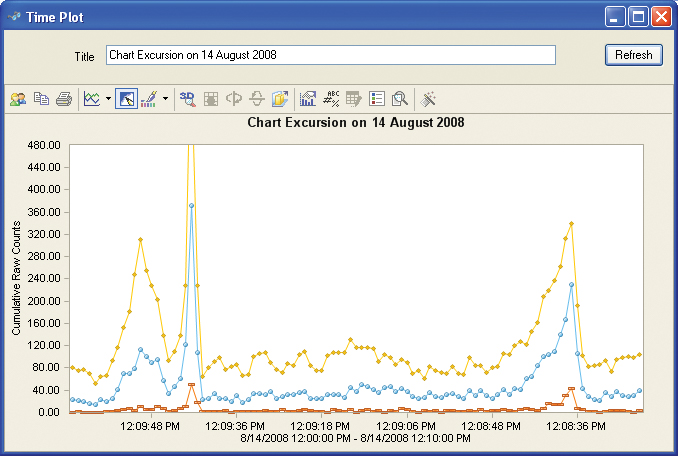

Interactive charts. Image Credit: Particle Measuring Systems

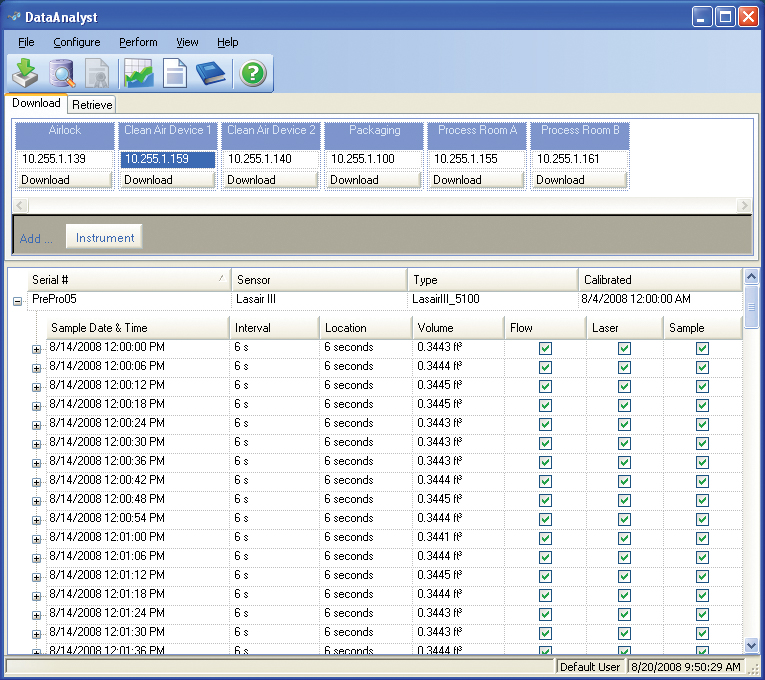

Data view with multiple instruments configured to facilitate quick downloads. Image Credit: Particle Measuring Systems

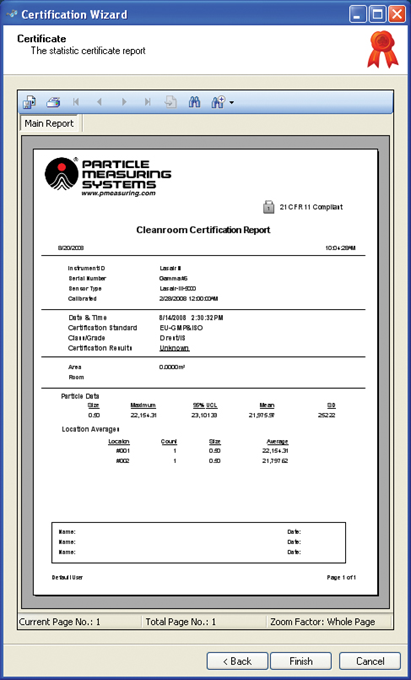

Certification report. Image Credit: Particle Measuring Systems
