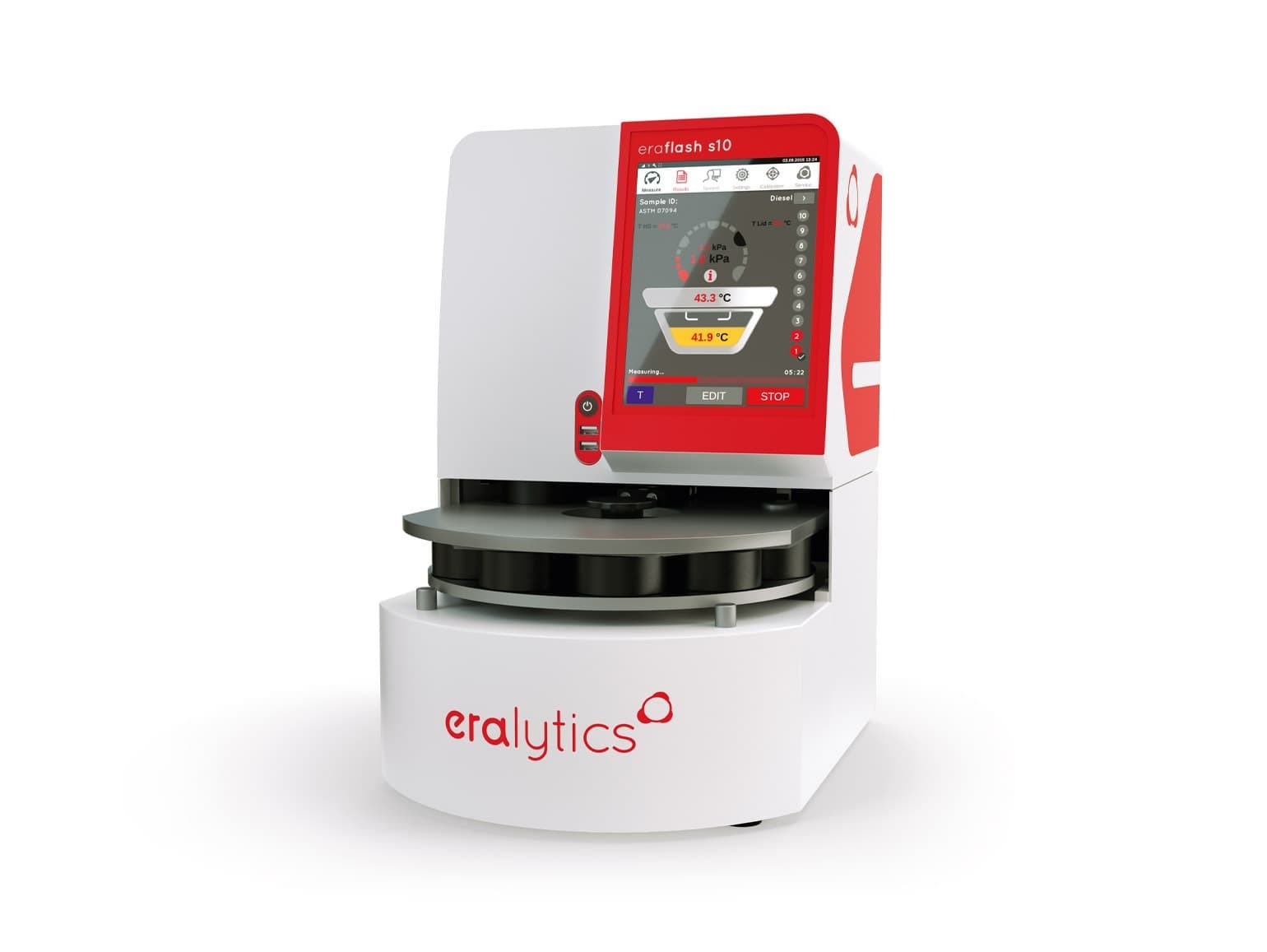

eralytics' flash point autosampler, eraflash s10, combines the safest measuring method with a 10-position autosampler. The fundamentally safe CCCFP methods ASTM D7094, ASTM D6450, and IP620 are suited to unattended measurements. ERAFLASH S10 burns the vapors of 1-2 ml of sample inside a closed chamber and monitors the increase in pressure.
Download the Brochure for More Information
Image Credit: eralytics GmbH
Standards
- ASTM D6450
- ASTM D7094
- IP 620
- SH/T 0768
Correlations
- ASTM D56
- ASTM D93
- ASTM D3828
- DIN 51758
- IP 34
- IP 170
- ISO 2719
- ISO 3679
- ISO 3680
- ISO 13736
- JIS K2265
Autosampler for Flash Point Testing
Image Credit: eralytics GmbH

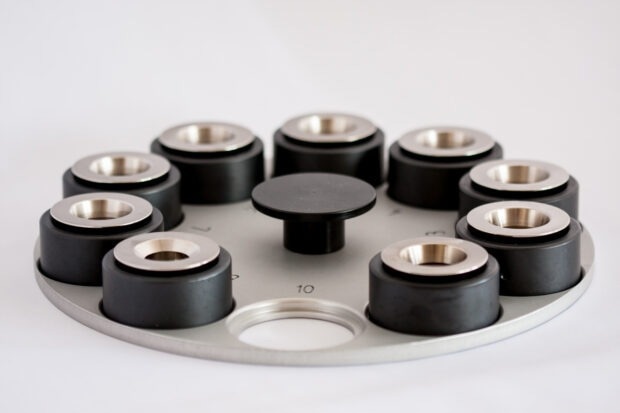

eraflash s10 is the first 10-position autosampler designed for flash point testing. It employs the inherent safety procedures ASTM D7094, ASTM D6450, and IP620. With a small sample capacity of about 1–2 ml and continuously closed sample cups, they are suitable for creating a completely safe autosampler for flash point testing. eraflash s10 is an ideal choice for high-throughput laboratories that require limited laboratory space.
This makes eraflash s10 an excellent choice for unattended flash point testing.
Cost-Efficient and Fast Flash Point Testing
Image Credit: eralytics GmbH

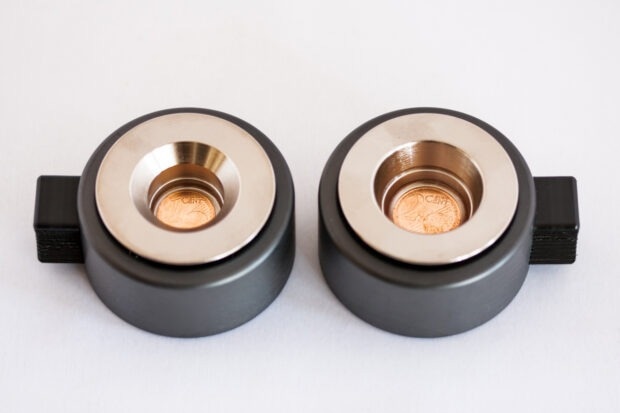

Flash point testing utilizing the well-known Pensky Martens concept (D93) need a large amount of material when examining valuable products, especially when batch numbers are limited. This can result in high analytical expenses. Only two milliliters of the sample are required for flash point testing in accordance with ASTM D7094 and IP620. ASTM D6450 further reduces this value to 1 milliliter.
Therefore, eraflash s10 is a welcome addition to testing labs that handle a lot of expensive samples on a daily basis. This comprises manufacturers of paints, varnishes, and fragrances.
Peltier Boost Technology®
Image Credit: eralytics GmbH
Image Credit: eralytics GmbH

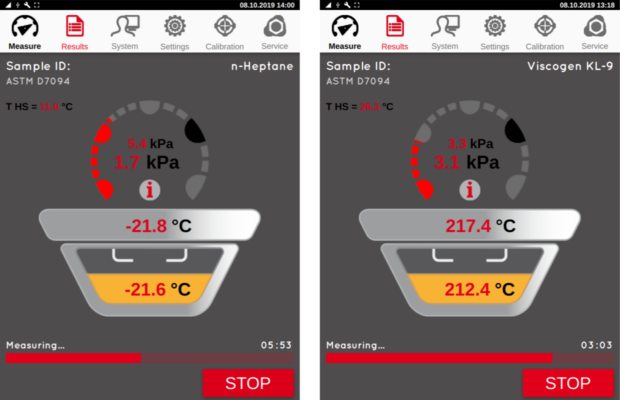

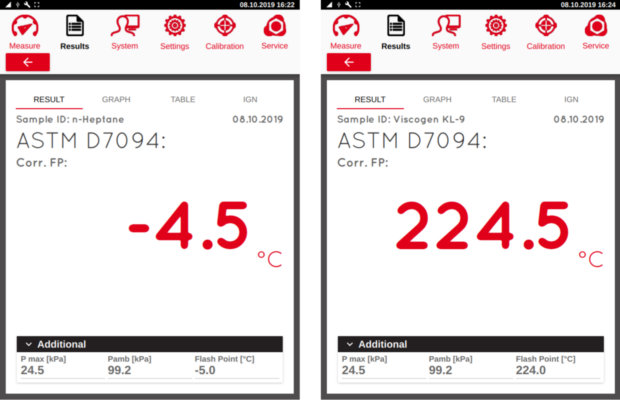

The proprietary Peltier Boost Technology® (PBT) enables flash point testing below 0 °C (32 °F) and over 200 °C (392 °F) with a single instrument, much like eralytics' single position flash point tester eraflash.
However, they can be utilized for active cooling beginning at 200 °C throughout the cool-down, which will greatly shorten the turnaround time. In an autosampler for flash point testing, PBT also enables the same temperature range of -25 °C (-13 °F) to 420 °C (788 °F) as the single position flash point tester.
A Cooling Lid for Shorter Turnaround Times
Image Credit: eralytics GmbH

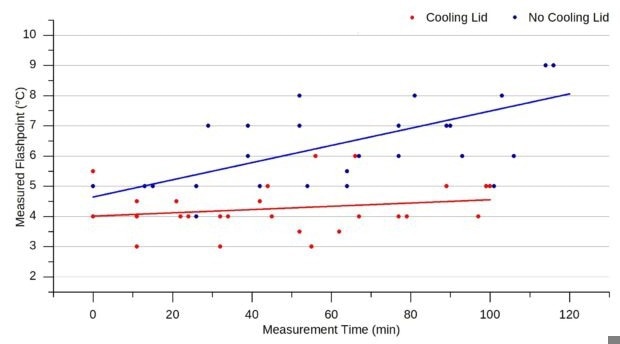

An unparalleled advantage of the eraflash s10 is its optional cooling lid, particularly for situations involving extremely volatile samples. Volatile compounds are far less likely to evaporate before their assessment begins since the lid maintains the pending samples at a constant temperature.
As a result, the outcomes are more precise and reliable. Shorter turnaround times are achieved by using pre-cooled sample cups, which allow for less intensive cooling during the measurement.
Download the Brochure for More Information
eraflash s10 Feature Video
ERAFLASH S10 – The Automated Side of Safe Flashpoint Testing
Video Credit: eralytics GmbH
- High throughput with the 10-position autosampler
- Inherently safe, as there is no open flame
- A very modest sample volume of 1-2 mL is needed
- Occupies relatively minimal laboratory bench space
- Fully compliant with ASTM D6450, ASTM D7094, and IP620
- Measurement of fuels, lubricants, fragrances, flavors, paints
eraflash s10 Operation Video
ERAFLASH S10 Operation Video
Video Credit: eralytics GmbH
Watch this video to understand the standard operation of the eraflash S10. From installation to measurement, including some extended measuring options.
Download the Brochure for More Information
Technical Specifications
Source: eralytics GmbH
| . |
. |
| Available Test Methods |
ASTM D6450, ASTM D7094, IP620, SH/T 0768 |
Pre-Programmed
Correlation Methods to… |
Pensky Martens Closed Cup: ASTM D93, EN ISO 2719, DIN 51758, IP34, JIS K2265
TAG Closed Cup: ASTM D56
Abel Pensky Closed Cup: ISO 13736, IP170
Small Scale Closed Cup and Flash / No Flash methods: EN ISO 3679, EN ISO 3680, ASTM D3828 |
| Fuel Specifications (ASTM D7094) |
ASTM D396, ASTM D975, ASTM D2880, ASTM D3699, ASTM D7467 |
| Speed Tests |
Fast screening test programs for unknown samples |
| Sample Handling |
10 position autosampler |
| PBT – Peltier Boost Technology® |
High-speed heating & cooling
-25 °C to 420 °C (-13 °F to 788 °F) with a single analyzer |
| CPT – Contamination Prevention Technology™ |
Advanced electrode protection and self-cleaning ignition system to minimize cleaning and maintenance |
| Combustion Graphics™ |
Display of combustion characteristics for contamination analysis |
| QC Mode |
Built-in quality control mode, including on-screen QC charts |
| Cooling Lid Temperature |
5 °C to 30 °C (optional) |
| QuickCal™ |
In-situ calibration with eralytics unique calibration cups without the need to dismantle the instrument |
| Fuel Dilution Program |
Automatic fuel dilution measurement for the analysis of used engine oils |
| Temperature Range |
0 °C to 200 °C (32 °F to 390 °F) stand alone
down to -25 °C (-13 °F) with external cooling
up to 420 °C (788 °F) with optional High Temperature Module |
| Temperature Stability |
0.1 °C (0.2 °F) |
| Unattended Sample Throughput |
10 loaded samples within approximately 45 minutes (depending on temperature range) |
| Sample Volume |
1 mL (ASTM D6450), 2 mL (ASTM D7094) |
| Sample Cups |
Nickle plated aluminum, stainless steel cups available upon request |
| Result Database |
Over 100,000 detailed test reports stored in internal memory |
| Alarm Tracking |
All alarm messages are stored in the database together with the result |
| Display |
Industry-proven 8.4″ color touchscreen |
| Languages |
English, German, French, Spanish, Russian, Chinese
Additional languages available upon request |
| Interfaces |
Built-in PC with Ethernet, USB and RS232 interfaces
Direct LIMS connectivity and output to printer or PC
Optional input by external keyboard, mouse and barcode / QR-code reader
Wifi via external USB dongle |
| Remote Control |
Remote service capability via Ethernet interface |
| PC Software |
ERASOFT RCS – remote control Windows® software for multi-instrument remote control, convenient data transfer andresult analysis |
| Operating Conditions |
Temperature range 10 °C to 40 °C
Humidity up to 90% RH, non-condensing |
| Power Requirements |
Auto-switching 85-264 V AC, 47-63 Hz, max. 150 W (multi-voltage power supply)
Field application: 12 V DC (vehicle battery) adapter available |
| Dimensions & Weight |
(W x D x H) = 29.5 x 36.9 x 45.4 cm (11.6 x 14.5 x 17.9 in) / 18.1 kg (39.9 lb) |
