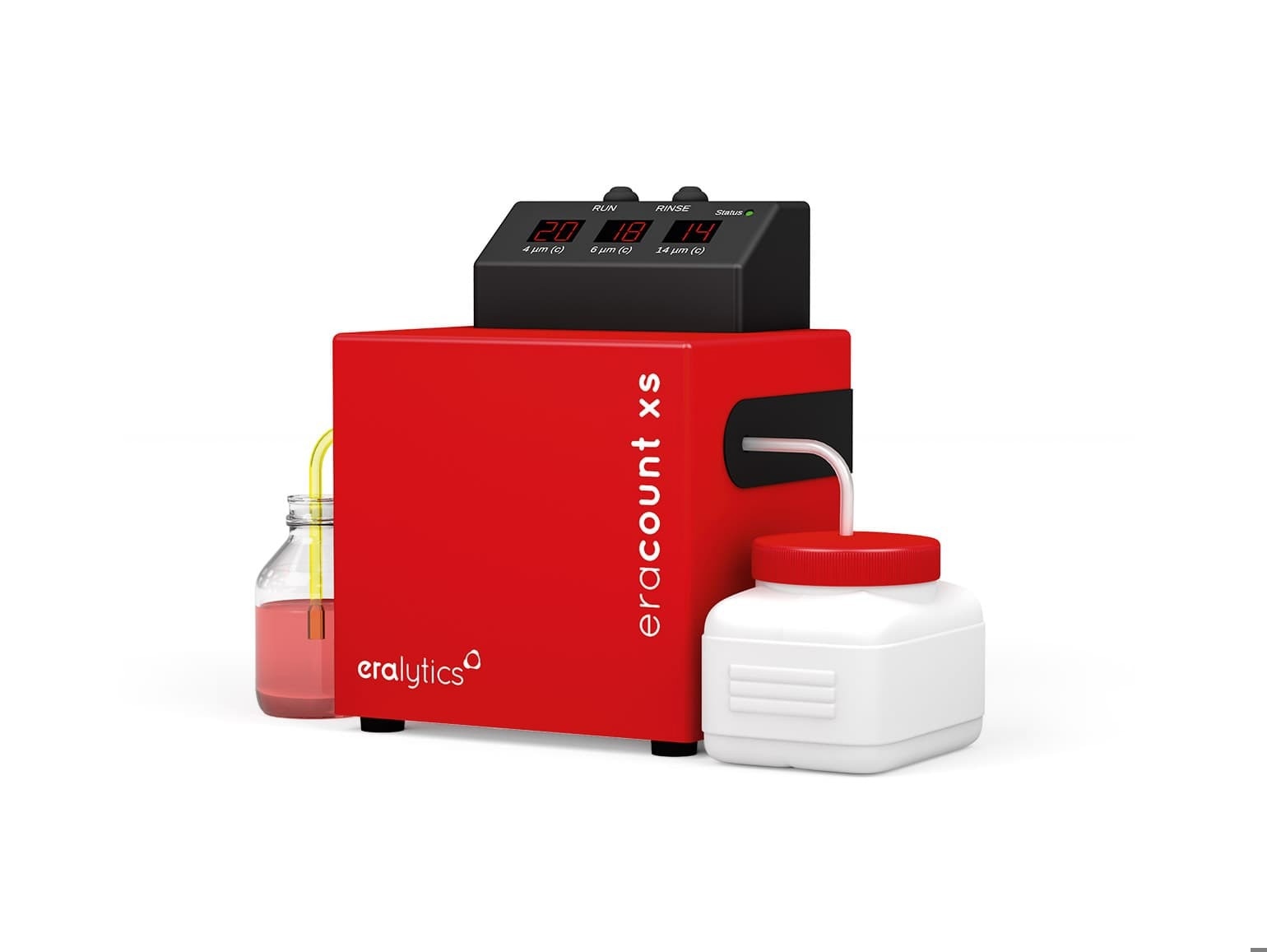

eracount xs is the most compact and fastest field particle counter. With the push of a button, the laser-based analyzer measures and displays ISO 4406 particle size channels ≥4 µm(c), ≥6 µm(c), and ≥14 µm(c) in just 60 seconds using only 10 mL of sample. When connected to one of eralytics’ other OCM analyzers, eracount xs can count particles across eight channels.
Download the Brochure for More Information
Image Credit: eralytics GmbH
Standards
ISO 4402; ISO 4406; ISO 11171; SAE AS4059

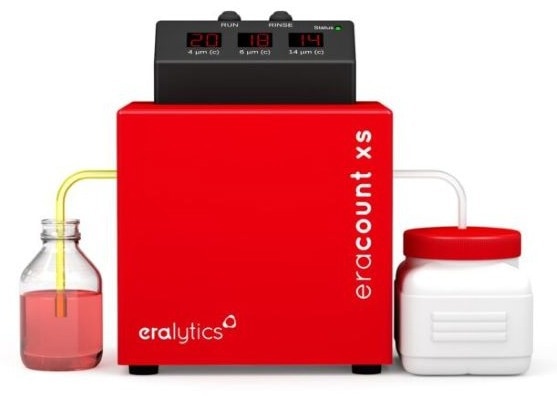

Xtra Easy: Fast and Easy Particle Detection
Image Credit: eralytics GmbH
eracount xs is the preferred analyzer for quick particle measurements in the field with lab grade precision. Large particles first appear as a result of hydraulic and lubricating oil systems experiencing initial failures. Every particle that passes the sensor is readily detected by eracount xs. This laser-based particle counter works best when used in combination with another eralytics analyzer, such as the FTIR spectrometer eraspec oil or the kinematic viscometer eravisc X.
Xtra Rugged: Extremely Robust All-Metal Device
Image Credit: eralytics GmbH
Image Credit: eralytics GmbH

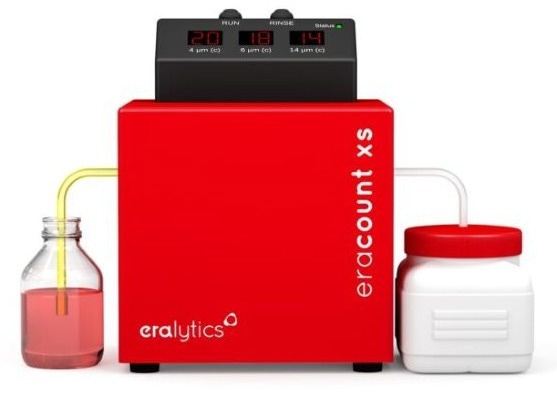

The eracount xs is a remarkably durable, all-metal device that weighs just 3 kg. It can withstand harsh conditions like high temperatures and vibrations of any kind. Test rigs, parts cleaning, and the detection and condition monitoring of hydraulic and lubricant oil systems make it the ideal analyzer.
Download the Brochure for More Information
Xtra Accurate: Measurement According to ISO and NIST Standards
Image Credit: iStock
Image Credit: eralytics GmbH

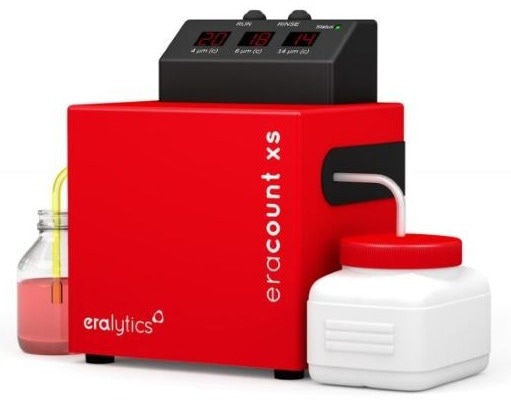

Any petroleum product or lubricant with viscosities up to 1000 cSt at 22 ºC (up to ISO VG 320) and pressures up to 2 bar can be measured for cleanliness using eracount xs. eracount xs can identify even larger particles with its eight particle size channels, providing the ability to send out an alert in the event of abrasion or machine failure. The instrument can be traced back to NIST standards and is calibrated in accordance with the international standard ISO 11171.
Features at a Glance
ERACOUNT XS
Video Credit: eralytics GmbH
- Best suited for different applications: hydraulic and lube oils, fuels
- 10 mL sample volume
- Robust, full-metal device with only 3 kg of weight
- Measurement of up to eight different size channels
- Flow rate 10 ml/min
This video provides an overview of how to use eracount xs.
Download the Brochure for More Information
Technical Specifications
Source: eralytics GmbH
| |
|
| Available Test Methods |
ISO 4406, ISO 11171, ISO 4402, SAE AS4059 |
| Particle size channels |
4, 6, 14 µm
21, 25, 30, 38, 70 µm – in combination with any eralytics analyzer |
| Flow rate |
10 ml/min (default), optional 25 ml/min |
| Min. sample volume required |
5 ml at 10 ml/min, 12.5 ml at 25 ml/min |
| Min. measurement time |
30 secondes |
| Max. viscosity |
1000 cSt @ 22 °C or 300 cSt @ 40 °C |
| Max. accepted particle size |
230 µm |
| Sample temperature |
5 – 60 °C |
| Operation temperature |
-10 to 50 °C |
| Interfaces |
USB-C: Communication to eralytics analyzer |
| Power Requirements |
24 VDC, max. 80 W |
| Data transfer |
ASCII Code, USB interface |
| Dimensions & Weight |
(W x D x H) = 25.5 x 18.5 x 25.6 cm (10.0 x 7.3 x 10.1 in) / 3.0 kg (6.6 lb) |
