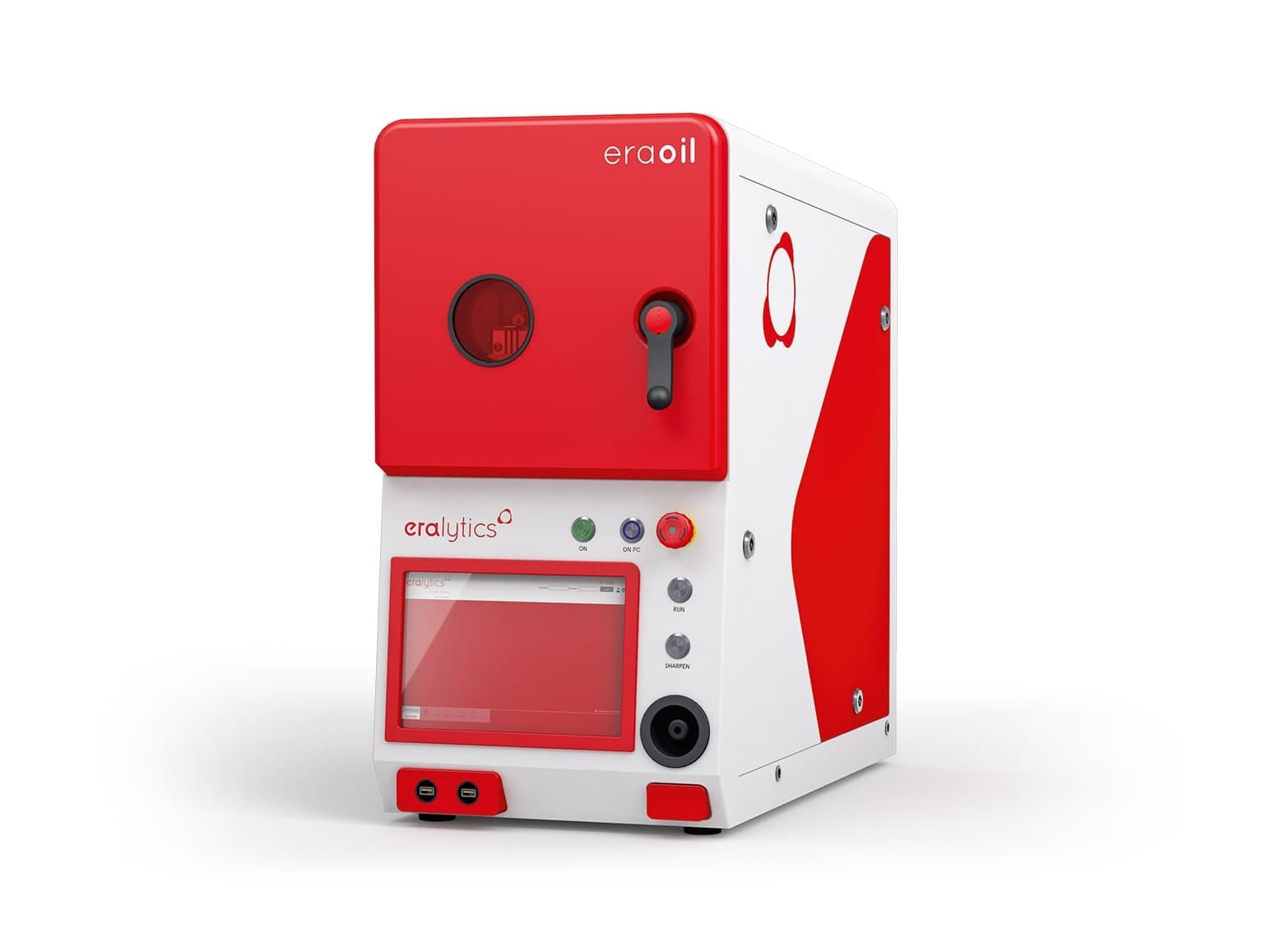

eraoil is the first and most sophisticated standalone rotating disc electrode spectrometer that can analyze wear metals, contaminants, and additives in a variety of operating liquids, including fuels, coolants, lubricating oils, process water, and more.
Within 30 seconds, up to 32 elements can be measured fully automatically. For the majority of elements, eraoil's high-end CMOS detector and automatic background correction enable a sub-ppm detection limit (LOD).
Download the Brochure for More Information
Image Credit: eralytics GmbH
Standards
Smallest Footprint with Built-In PC

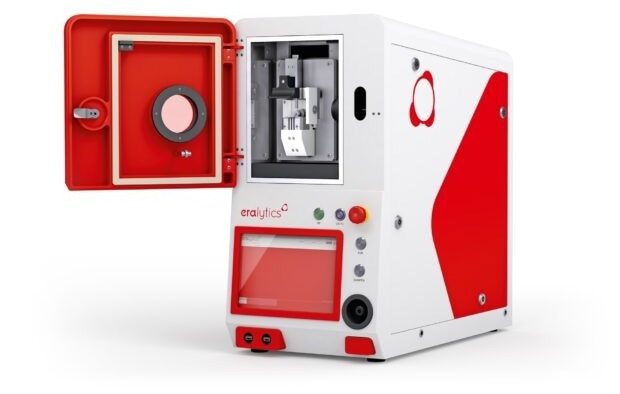

Even in the smallest on-site testing labs, eraoil's distinctive standalone design provides a robust all-in-one package for operation. It has a PC and a built-in 10" color touchscreen. eraoil is even equipped with an automatic ventilation system and an electrode sharpener.
eraoil is incredibly user-friendly, even for novice users. The automated measuring process is ideal for on-site inspection because it only requires a few easy steps: Simply press the start button after filling the sample cup and shutting the door. The concentration of the element is instantly available.
Image Credit: eralytics GmbH
High-Precision Oil and Fuel Analysis

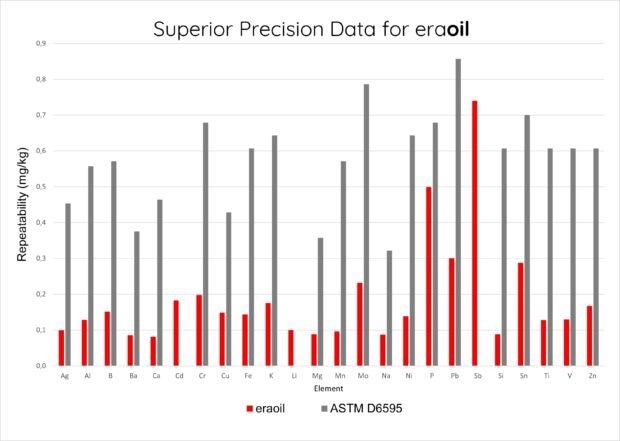

eraoil complies completely with ASTM D6728 (fuel) and D6595 (oil). The ASTM D6595 standard uses rotating disc electrode optical emission spectrometry to detect wear metals and impurities in used hydraulic fluids and lubricating oils.
ASTM D6728 is the preferred standard for identifying impurities in diesel and gas turbine fuel. With the help of a unique Low Detection Fuel Module, finished fuels can be protected against trace contamination by detecting elements like potassium, lithium, sodium, and vanadium at LOD levels as low as 0.1 ppm.
Image Credit: eralytics GmbH
Image Credit: eralytics GmbH
Download the Brochure for More Information
Applications for the RDE- OES Spectrometer eraoil
The foundation of in-service oil analysis is multi-elemental analysis. eraoil is therefore the ideal tool for wear metal analysis of lubricants from gearboxes, hydraulic systems, engines, and transmissions.
The operation of any commercial vehicle or machinery in an industrial setting benefits greatly from the quick and simple elemental analysis. For additional uses like coolants, metal working fluids, or any other process fluid, this solution also clearly adds value.
Image Credit: eralytics GmbH
Features at a Glance
- Examining wear metals, impurities, and additives in hydraulic fluids and lubricating oils in accordance with ASTM D6595, as well as impurities in gas turbine and engine fuel in accordance with ASTM D6728
- Sub-ppm LOD for up to 32 elements in 30 seconds
- Integrated PC, touchscreen, sharpener, and ventilation in a standalone design
- The most compact and durable housing for on-site and laboratory applications.
ERAOIL - RDE-OES spectrometer for elemental analysis
Video Credit: eralytics GmbH
Download the Brochure for More Information
Wear Metals and Contaminants
Source: eralytics GmbH
| Element |
Lubricant
ASTM D6595 |
Lubricant
Ext. Element
ASTM D6595 |
Lubricant
Ext. Range
ASTM D6595 |
Fuel
ASTM D6728 |
Low Detection
Fuel |
Coolant |
Water |
| Silver (Ag) |
0 – 1000 |
0 – 1000 |
0 – 1000 |
|
|
|
0 – 10 |
| Aluminium (Al) |
0 – 1000 |
0 – 1000 |
0 – 1000 |
0 – 1000 |
|
0 – 50 |
0 – 10 |
| Arsenic (As) |
|
0 – 100 |
|
|
|
|
|
| Boron (B) |
0 – 1000 |
0 – 1000 |
0 – 1000 |
|
|
0 – 1000 |
0 – 10 |
| Barium (Ba) |
0 – 1000 |
0 – 1000 |
0 – 6000 |
|
|
|
|
| Bismuth (Bi) |
0 – 1000 |
0 – 1000 |
0 – 1000 |
|
|
|
|
| Calcium (Ca) |
0 – 1000 |
0 – 1000 |
0 – 6000 |
0 – 1000 |
|
0 – 50 |
0 – 10 |
| Cadmium (Cd) |
0 – 1000 |
0 – 1000 |
0 – 1000 |
|
|
|
0 – 10 |
| Cerium (Ce) |
|
0 – 100 |
|
|
|
|
|
| Cobalt (Co) |
|
0 – 100 |
|
|
|
|
0 – 10 |
| Chromium (Cr) |
0 – 1000 |
0 – 1000 |
0 – 1000 |
0 – 1000 |
|
|
0 – 10 |
| Copper (Cu) |
0 – 1000 |
0 – 1000 |
0 – 1000 |
0 – 1000 |
|
0 – 50 |
0 – 10 |
| Iron (Fe) |
0 – 1000 |
0 – 1000 |
0 – 1000 |
0 – 1000 |
|
0 – 50 |
0 – 10 |
| Indium (In) |
0 – 1000 |
0 – 1000 |
0 – 1000 |
|
|
|
|
| Potassium (K) |
0 – 1000 |
0 – 1000 |
0 – 1000 |
0 – 1000 |
≤ 0.1 – 1 |
0 – 1000 |
0 – 10 |
| Lithium (Li) |
0 – 1000 |
0 – 1000 |
0 – 1000 |
0 – 1000 |
≤ 0.1 – 1 |
|
|
| Magnesium (Mg) |
0 – 1000 |
0 – 1000 |
0 – 6000 |
0 – 1500 |
|
0 – 50 |
0 – 10 |
| Manganese (Mn) |
0 – 1000 |
0 – 1000 |
0 – 1000 |
0 – 1000 |
|
|
0 – 10 |
| Molybdenum (Mo) |
0 – 1000 |
0 – 1000 |
0 – 1000 |
|
|
0 – 500 |
|
| Sodium (Na) |
0 – 1000 |
0 – 1000 |
0 – 6000 |
0 – 1000 |
≤ 0.1 – 1 |
0 – 1000 |
0 – 10 |
| Nickel (Ni) |
0 – 1000 |
0 – 1000 |
0 – 1000 |
0 – 1000 |
|
|
0 – 10 |
| Phosphorus (P) |
0 – 1000 |
0 – 1000 |
0 – 6000 |
|
|
0 – 2500 |
0 – 10 |
| Lead (Pb) |
0 – 1000 |
0 – 1000 |
0 – 1000 |
0 – 1000 |
|
0 – 50 |
0 – 10 |
| Antimony (Sb) |
0 – 1000 |
0 – 1000 |
0 – 1000 |
|
|
|
|
| Silicon (Si) |
0 – 1000 |
0 – 1000 |
0 – 1000 |
0 – 1000 |
|
0 – 500 |
0 – 10 |
| Tin (Sn) |
0 – 1000 |
0 – 1000 |
0 – 1000 |
|
|
|
0 – 10 |
| Strontium (Sr) |
|
0 – 100 |
|
|
|
|
|
| Titanium (Ti) |
0 – 1000 |
0 – 1000 |
0 – 1000 |
|
|
|
|
| Vanadium (V) |
0 – 1000 |
0 – 1000 |
0 – 1000 |
0 – 1000 |
≤ 0.1 – 1 |
|
|
| Tungsten (W) |
|
0 – 100 |
|
|
|
|
|
| Zinc (Zn) |
0 – 1000 |
0 – 1000 |
0 – 6000 |
0 – 1000 |
|
0 – 50 |
0 – 10 |
| Zirconium (Zr) |
|
0 – 100 |
|
|
|
|
|
| Total |
26 |
32 |
26 |
15 |
4 |
13 |
19 |
Technical Specifications
Source: eralytics GmbH
| . |
. |
| Available Test Methods |
ASTM D6595: Wear metals, contaminants, and additives in used lubricating oils and hydraulic fluids
ASTM D6728: Contaminants in gas turbine and engine fuel |
| Correlation to |
ASTM D5185 (ICP-AES) |
| Spectrometer Type |
Rotating Disc Electrode Spectrometer (190 – 810 nm)
Thermally stabilized Paschen-Runge mounting with CMOS detectors |
| Applications |
Determination of additives, wear metals, and contaminants in lubricating oils, hydraulic fluids, gas turbine & diesel engine fuel, heavy fuel oil (HFO), crude oil, glycol coolants, process water, mineral water, and grease |
| Analytical Range |
Simultaneous measurement of up to 32 elements in 30 seconds with a sub-ppm detection limit (LOD) for most elements incl. automatic background correction |
| Calibration |
Factory calibrated for 26 elements
Optional calibration for up to 32 elements |
| Sample Volume |
2 mL; no solvents, reagents or gases are needed, no cleaning of cell window |
| Operating Conditions |
0 °C to 40 °C (32 °F to 104 °F)
Up to 90% humidity, non-condensing |
| Fully Integrated Stand-Alone Design |
Built-in electrode sharpener and ventilation system
Industry-proven multilingual 10” color touchscreen
Built-in PC with Ethernet, USB, and RS232 interfaces
Optional connection of a monitor and data input by external keyboard, mouse, or barcode reader |
| Software |
Windows® software for convenient data transfer, viewing spectra, and result analysis |
| Result Database |
Over 100,000 detailed test reports and spectra storable in internal memory |
| Dimensions & Weight |
(W x D x H) = 36.0 x 66.0 x 69.5 cm (14.2 x 26.0 x 27.4 in) / 85 kg (187 lb) |
| Power Requirements |
90 – 270 V, AC 50/60 Hz, 500 W |
| Recommended Consumables for 1000 Tests |
EOL01 – A001 graphite discs (1000 pcs)
EOL01 – A002 graphite electrodes (100 pcs)
EOL01 – A003 2 ml sample cups (1000 pcs) |
