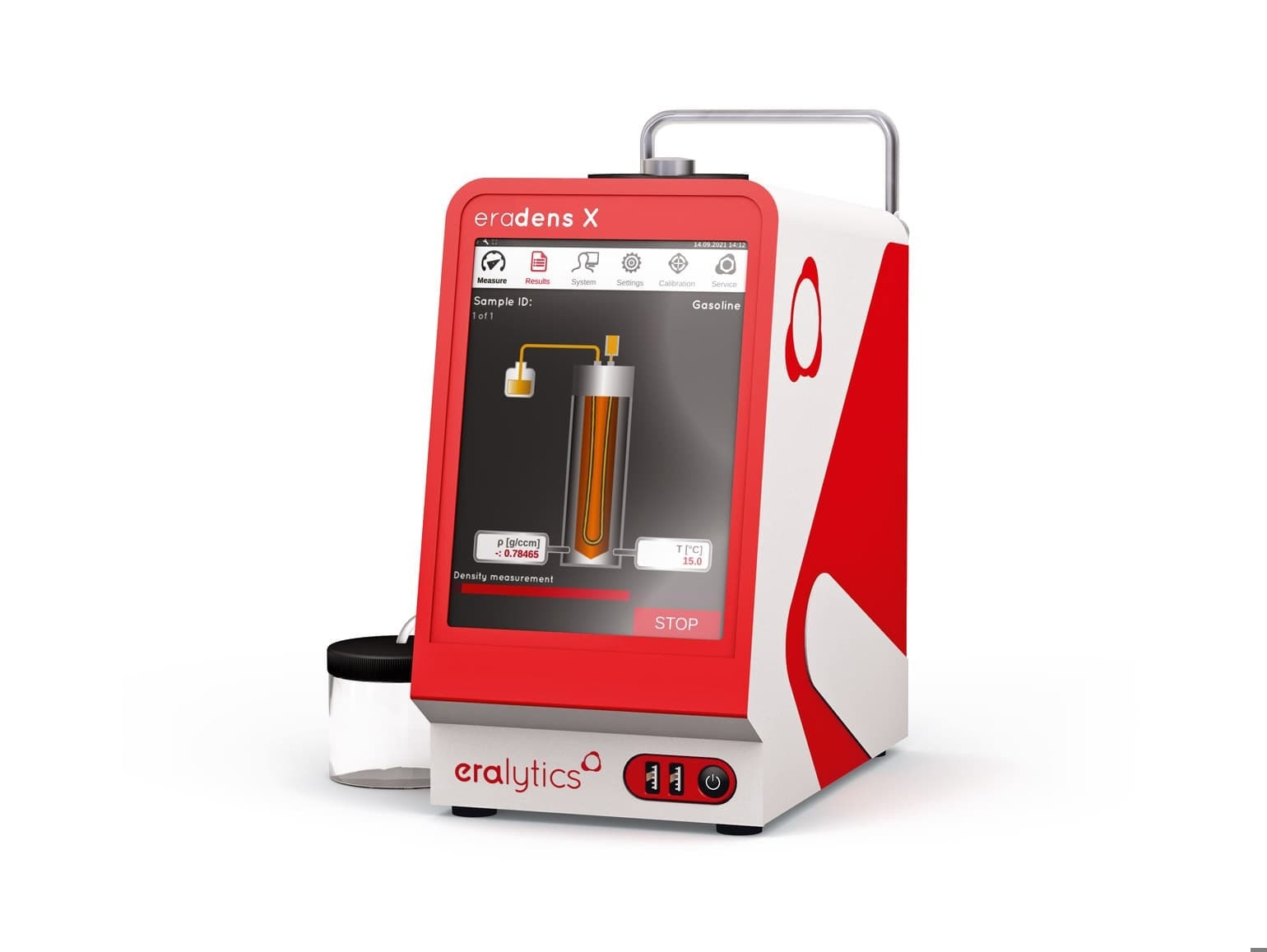

The eradens X is the smallest and lightest high-precision density meter in the world, and it fully complies with ISO 12185 and ASTM D4052 standards. The density meter eradens X is the ideal choice for density testing in both stationary and mobile laboratories due to its innovative vertically aligned x-oscillating metal U-tube design, which is incredibly dependable and insensitive to the harshest environmental conditions.
Download the Brochure for More Information
Image Credit: eralytics GmbH
Standards
ASTM D4052; ASTM D5002; ASTM D5931; ASTM D7777; ISO 12185
Xtra Easy: Experience Effortless Measurements with the eradens X Density Meter
Image Credit: eralytics GmbH

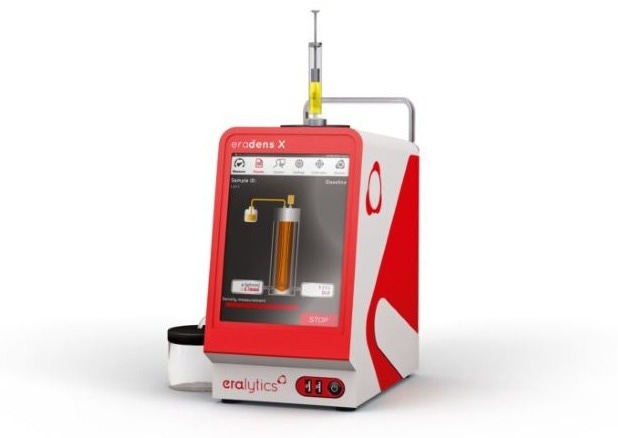

With its user-friendly interface, the eradens X's large, industry-proven color touchscreen improves one’s daily measurement routine. Even with gloves on, effective operation is guaranteed by this user-friendly design. eradens X's distinctive top-down sample introduction system makes it equally usable by left-handed and right-handed users. With the ability to print, export via USB, or transfer straight to a PC or LIMS via an Ethernet connection, the results are conveniently shown on the large screen.
Xtra Rugged and Compact: The Robust, Portable, and Compact eradens X Density Meter for Accurate Testing
Image Credit: eralytics GmbH

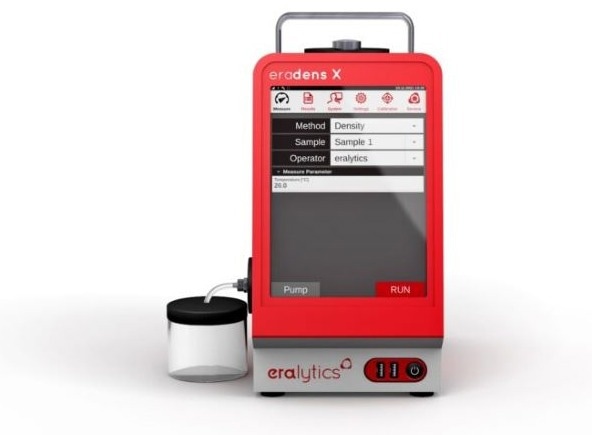

eradens X has no moving parts and is housed in an aluminum housing that resists corrosion. eradens X is an incredibly durable and adaptable analyzer that is impervious to shocks and vibrations, thanks to its innovative design, which includes a vertically aligned x-oscillating metal U-tube. Thus, even in the most severe circumstances, it is the ideal option for extremely accurate testing.
eradens X is the analyzer that offers the most operator convenience and ease of use while having the smallest footprint on the market. True portability on-site is provided by the small size and lightweight instrument design, which also takes up the least amount of lab bench space.
Xtra Accurate: Unmatched Precision with x-Oscillating Metal U-Tube Technology
Image Credit: eralytics GmbH
The internal x-oscillating metal U-tube technology allows eradens X to produce density readings with 5-digit accuracy. eralytics' special full range viscosity correction guarantees the best accuracy possible across the broad temperature range of 0 to 100 °C.
Download the Brochure for More Information
eradens X Density Meter: Ensuring Bubble-Free Filling with Innovative FillingProof® Technology
Image Credit: eralytics GmbH
Image Credit: eralytics GmbH

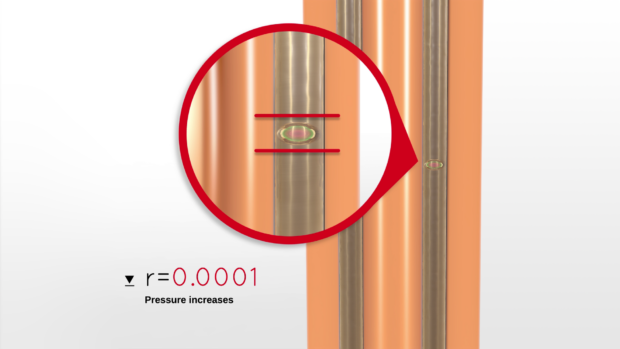

The U-tube's vertical alignment reduces the likelihood that air bubbles will become trapped inside the density cell. In order to verify the bubble-free filling, eralytics created FillingProof® (Patent: US 11,493,417 B2). Even the smallest bubbles can be detected using the change in density as a function of applied pressure, which is more accurate than error-prone optical methods and yields consistent results even for opaque samples like crude oil.
eradens X Density Meter: Features at a Glance
ERADENS X - Xtra Easy, Xtra Rugged, Xtra Accurate
Video Credit: eralytics GmbH
- Providing density results with 5-digit precision
- The smallest and lightest D4052 density meter
- Vertically aligned x-oscillating metal U-tube design
- Compliant with ASTM D4052 and ISO 12185
- Highly reliable and robust
- FillingProof® Technology
eradens X Operation Video
ERADENS X Operation Video
Video Credit: eralytics GmbH
To gain an overview of eradens X's typical operation, watch this video: Everything is simple, from installation to measurement.
Download the Brochure for More Information
Technical Specifications
Source: eralytics GmbH
| |
|
| Standards |
ASTM D4052, D5002, D5931, ISO 12185 |
| Density Range |
0 – 3 g/cm3 |
| Temperature Range |
0 °C to 100 °C (32 °F to 212 °F) |
| Density Repeatability (SD) |
0.000005 g/cm3 (according to ISO 5725) |
| Density Resolution |
0.00001 g/cm3 |
| Temperature Accuracy |
0.02 °C (0.04 °F) |
| Pressure Range |
0 -10 bar (145 psi) absolute pressure |
| Measurement Time |
15 sec (after temperature equilibration) |
| Sample Volume |
2 mL |
| Oscillating Tube |
Hastelloy (Patent: US 11,630,044) |
| Bubble Detection |
FillingProof®- automated bubble detection and bubble quantification (Patent: US 11,493,417 B2) |
| Viscosity Correction |
yes – full range correction (Patent: AT523471 A1) |
| Tables & Functions |
API, specific gravity, sugar, alcohol, etc, and freely programmable tables |
| Special Features |
Integrated fully-automated drying pump, built-in ambient pressure sensor |
| Result Database |
Over 100 000 detailed test reports stored |
| Remote Service |
Remote service capability via Ethernet |
| Interfaces |
Built-in PC with Ethernet, 4 x front and rear USB and RS232 interfaces; Wi-Fi via USB dongle
Direct LIMS connectivity via LAN, output to printer or PC and export as CSV or PDF
Optional input by keyboard, mouse, and barcode reader |
| Display |
Industry-proven 8.4“ multilingual color touchscreen |
| Power Requirements |
85 – 264 V AC 47- 63 Hz, max 150 W
Humidity up to 90% RH, non-condensing |
| Operating Conditions |
5 °C – 45 °C up to 90 % rel. humidity (non-condensing) |
| Dimensions & Weight |
(W x D x H) = 18.0 x 28.6 x 29.3 cm (7.1 x 11.2 x 11.5 in) / 7 kg (15 lb) |
