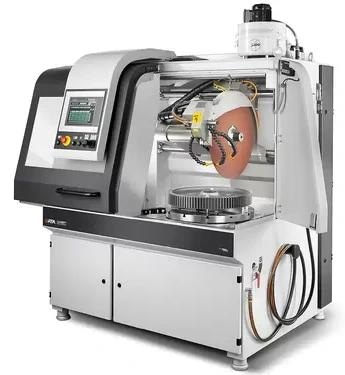

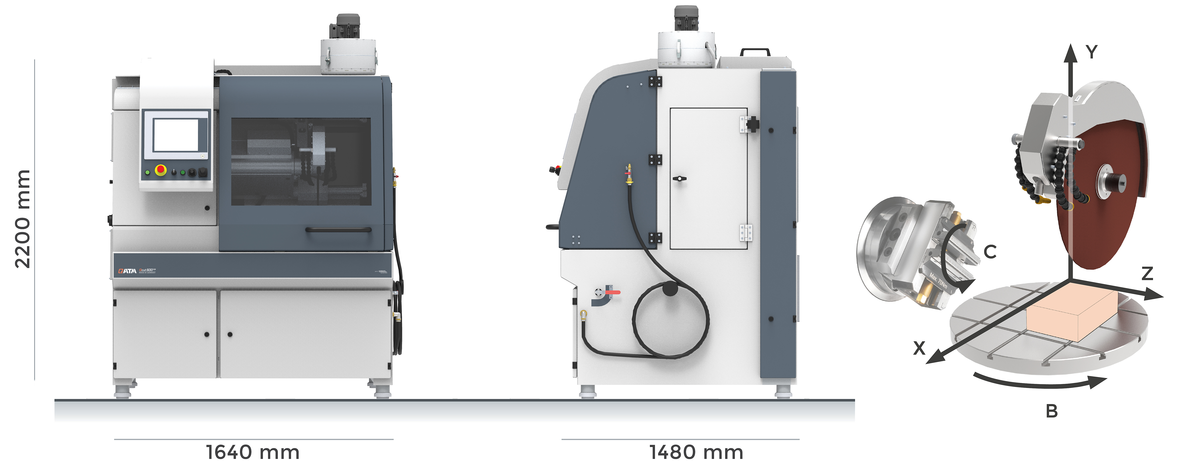

The Qcut 600 BOT cutting robot offers new possibilities with its 5 axes (X, Y, Z, B, C) and a generously sized machine table (Ø 600 mm), opening up new application opportunities. It features automatic travel (X-axis) and cross-cut (Y-axis) speeds of up to 80 mm/sec due to its highly dynamic drives.
The rotary table (B-axis) has a swiveling range of 360° and can be extended with an additional rotary axis (C-axis) with a swiveling range of 360°, providing a combined swiveling range of 200° (B-axis) and 360° (C-axis).
During the chop cut, the cut-off wheel guard moves in parallel to increase the cutting capacity of the cut-off wheel. The large sliding and side door, with a safety lock when the cutting disc moves, ensures optimal access to the large machine table.
The machine body of the Qcut 600 BOT is made of robust steel construction and integrates recirculation cooling and automatic central lubrication. Additionally, it can be equipped with a belt filter unit as an alternative to the recirculating cooling unit.
Product Advantages
Image Credit: Verder Scientific GmbH & Co. KG.
- The Qcut 600 BOT offers the highest degree of automation with dynamic cut-off wheel measurement and automatic adjustment of cutting parameters.
- It features visual menu guidance for easy programming.
- Can cut any number of components with different cut-offs in a single process.
- Complex cutting sequences are simplified thanks to the rotation of the machine table, eliminating the need for time-consuming reclamping of workpieces (patented).
- The machine is expandable with an additional rotary axis that can be adapted modularly.
- Offering unlimited clamping possibilities with individually tailored solutions.
- Additionally, the Qcut 600 BOT provides generous access to the cutting chamber.
Features
Intuitive and Easy Operation
Image Credit: Verder Scientific GmbH & Co. KG.
The teach-in function facilitates user-friendly programming of cutting positions by approaching individual positions. The multi-position process (MPP) enables simultaneous positioning and automatic start-up of different components on the clamping table, eliminating the need for time-consuming reclamping.
Automatic Cut-Off Wheel Measurement
Image Credit: Verder Scientific GmbH & Co. KG.
The dynamic cut-off wheel measurement ensures reproducible cutting results with consistent quality. By automatically monitoring the current cut-off wheel diameter, the cutting parameters are adjusted after each cut. This adjustment ensures that the cutting speed and cutting depth remain constant, maintaining consistent and precise cutting performance.
Cutting Optimization
Image Credit: Verder Scientific GmbH & Co. KG.
To optimize cutting quality, the machine automatically detects local material singularities, such as hardened areas, and regulates the feed rate based on the cutting force. Additionally, when starting a new cut, the component is automatically detected and approached at a reduced speed, ensuring a soft start-up control.
Remote Maintenance
Image Credit: Verder Scientific GmbH & Co. KG.
QATM offers direct fault diagnosis and online support, which can be accessed via a VPN connection using an existing broadband internet connection.

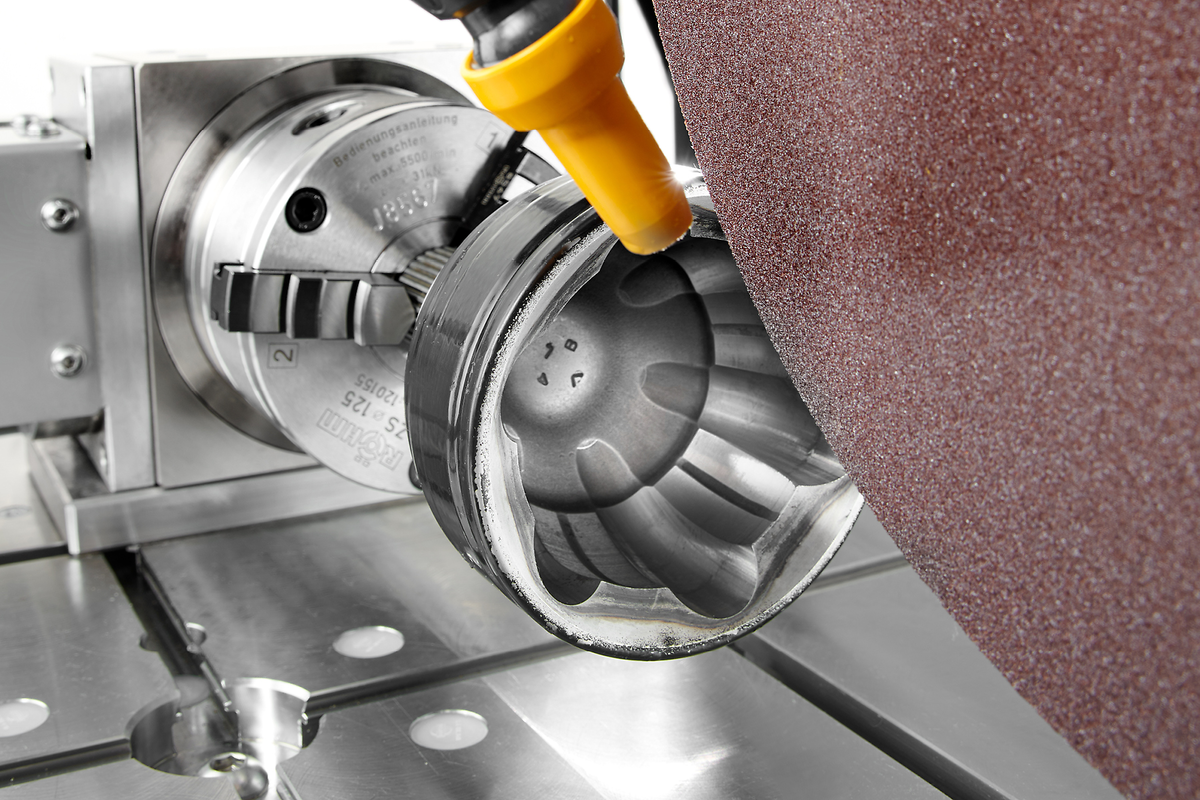

Additional Rotary Axis
Unlimited Clamping Possibilities
Image Credit: Verder Scientific GmbH & Co. KG.

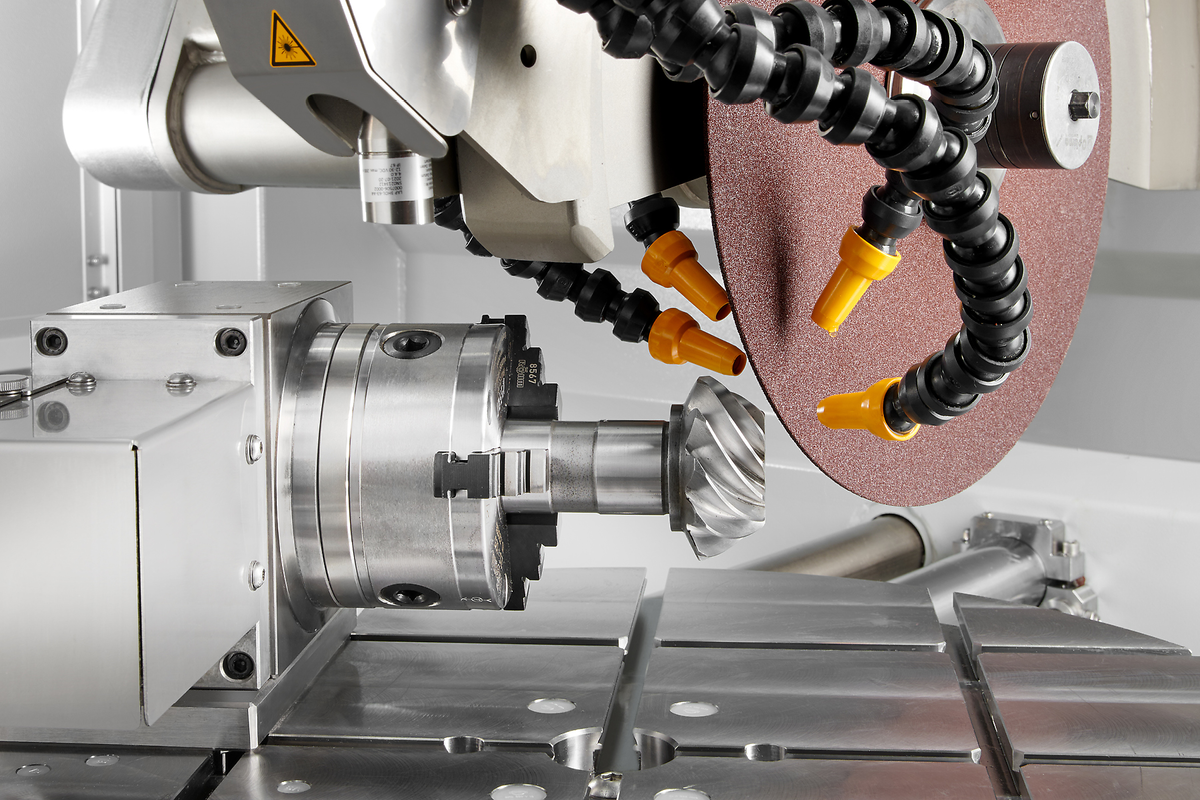

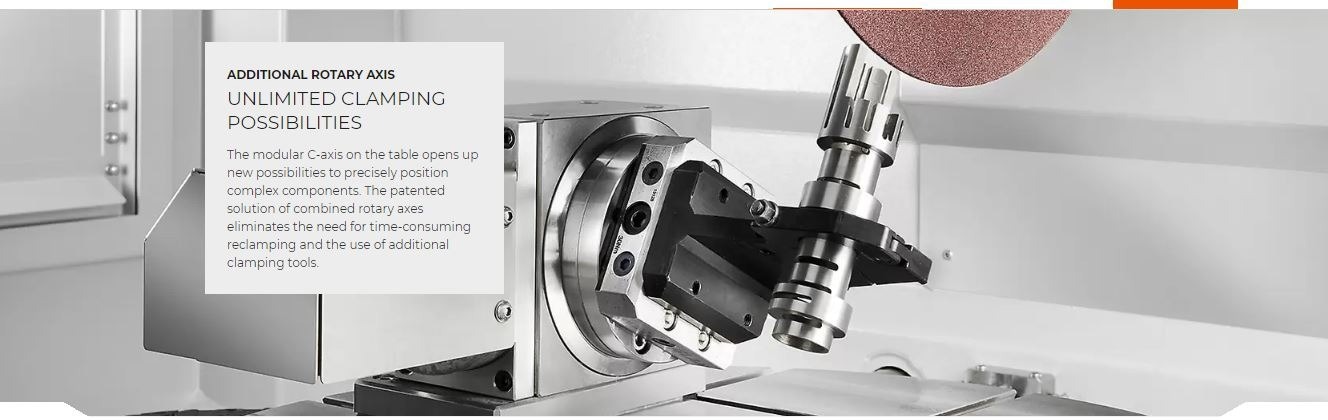

The modular C-axis on the table enables precise positioning of complex components, opening up new possibilities in machining. The patented solution of combined rotary axes eliminates the need for time-consuming reclamping and the use of additional clamping tools.

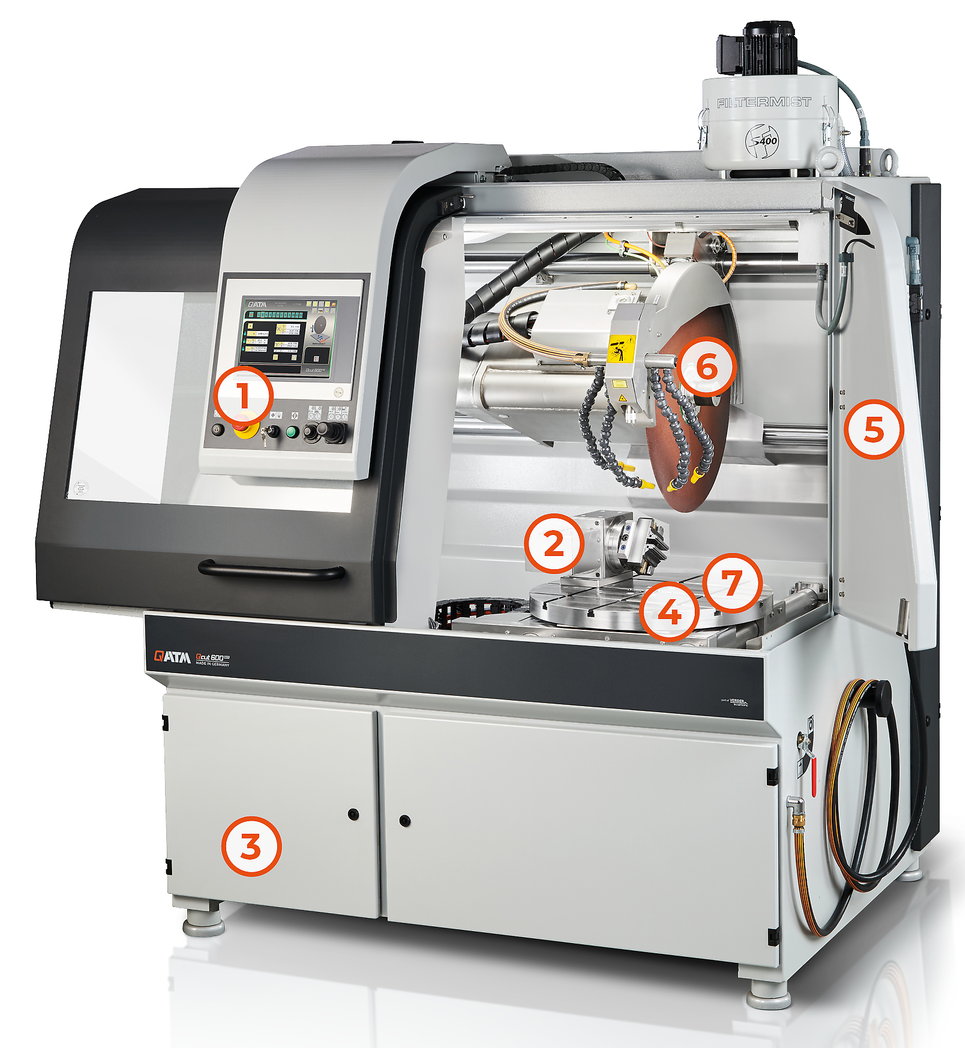

Cutting Robot Qcut 600 Bot
Cutting Without Restrictions
Image Credit: Verder Scientific GmbH & Co. KG.
- Ergonomic Control Panel

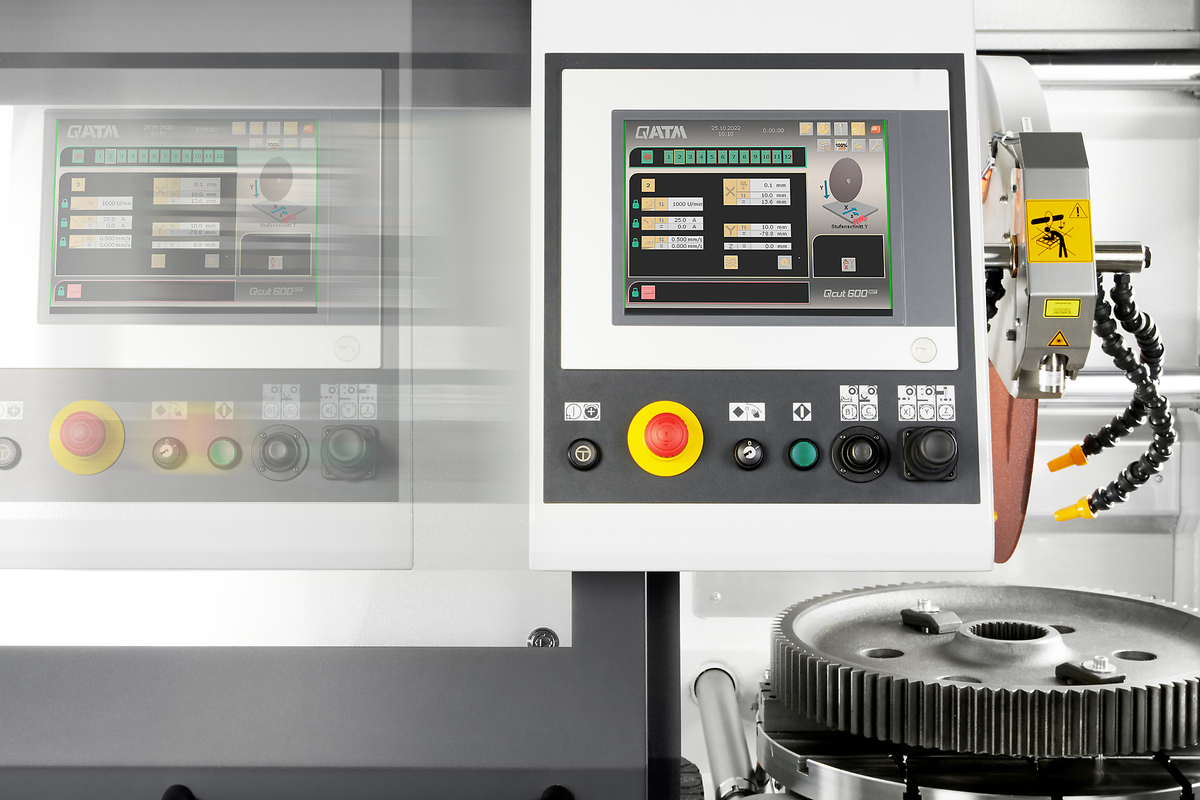

- The Qcut 600 BOT features a large 12.1" TFT touch display for easy operation.
- It also includes two joysticks for manual operation, providing flexibility in control.
- The sliding display enhances visibility and workspace clarity.
- Optional Axis of Rotation
C-axis
- The Qcut 600 BOT offers a maximum rotation range of 360°, providing flexibility in positioning workpieces.
- The rotary axis is modularly removable, allowing for easy customization and adaptation.
- Additionally, the clamping possibilities can be individually extended with a lathe chuck or other clamping devices, enhancing the machine's versatility.
- Robust Machine Body
- The Qcut 600 BOT is equipped with integrated recirculating cooling and automatic central lubrication, ensuring efficient cooling and lubrication for optimal machine performance and longevity.
- Large Machine Table
- Axes can be precisely positioned and fixed vibration-free in the cutting process
- Diameter: 600 mm
- Load capacity: 150 kg
- Travel: X/Z-axis: 550 mm
- Side Door
- Swivel door for free access to the cutting chamber
- Change of cutting disc via side door possible
- Automatic Cut-Off Wheel Measurement
- The Qcut 600 BOT offers dynamic adjustment of cutting parameters for optimal results, ensuring efficient and precise cutting.
- Additionally, it maximizes the utilization of cutting space with innovative transverse infeed via the swivel arm, enhancing productivity and versatility.
- Rotational axis
B-axis
- Rotation range 360°
- Rotation range with combined C-axis 200°
- Positioning accuracy: ±0.1°

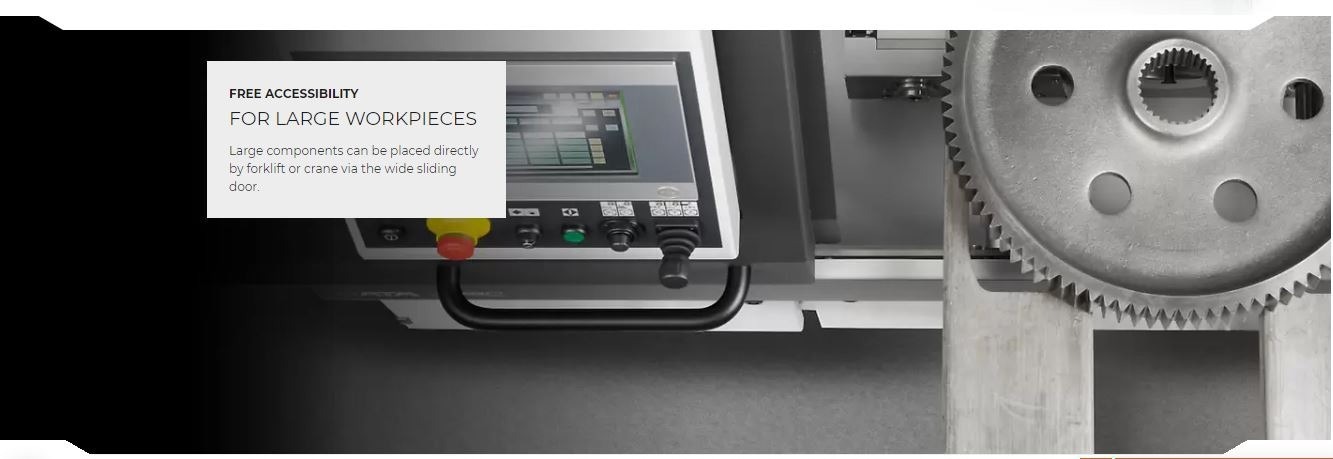

Free Accessibility
For Large Workpieces
Image Credit: Verder Scientific GmbH & Co. KG.
The Qcut 600 BOT features a wide sliding door, allowing large components to be easily placed using a forklift or crane, simplifying loading and unloading operations.
Cutting Robot Qcut 600 Bot
Technical Data
